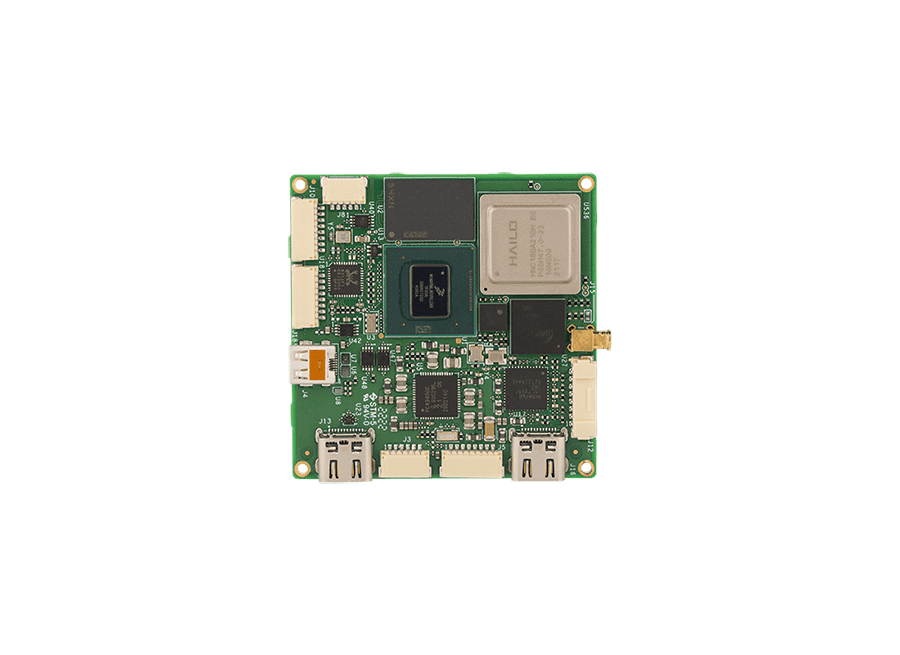

Jupiter-AI
Jupiter-AI is a miniature low-power video and audio capture, encoding, transcoding and display solution that is ideal for autonomous and semi-autonomous drone and robotics platforms. Featuring the powerful Hailo-8 AI accelerator, it offers a range of advanced functionality including real-time detection, classification and tracking.
The solution supports unicast, multicast, and broadcast streaming via UDP, RTP and RTSP over wired and wireless networks, with ultra-low latency of down to 100 ms. It can be controlled via a web browser or through an easy-to-use API, using Ethernet or serial.
Specifications:
| Dimensions: | 50 x 50 mm |
| Power: | 5V input <6W for 1x HDSDI @ 1080p60 encoding, 1x GbE and AI accelerator |
| SoC: | NXP i.MX 8M Plus |
| Memory: | 6GB LPDD4 32GB EMMC |
| AI Accelerator: | Hailo-8 |
| Video In: | Simultaneous support for: 1x HDSDI @ 1080p60 4x CVBS (PAL/NTSC) 2x USB 3.0 (UVC) |
| Video Out: | HDMI |
| Storage: | 32GB EMMC Up to 1TB MicroSD |
| Interfaces: | 2x GbE RS232/RS485 USB 3.0 Host/OTG |
