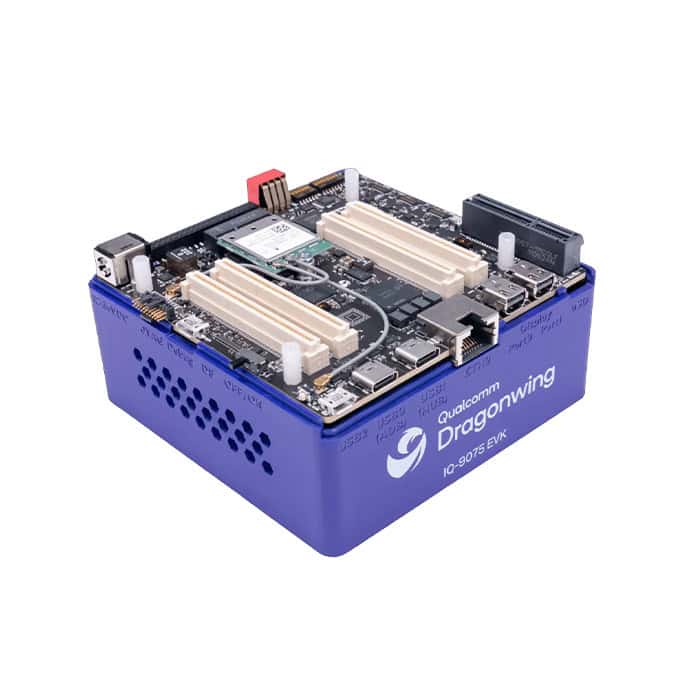

Qualcomm Dragonwing™ IQ-9075 Development Kit
Lantronix' development kit for the Qualcomm Dragonwing™ IQ-9075 provides developers and system integrators with an easy and convenient way of evaluating the capabilities of the module. Ideal for prototyping drone, robotics and edge AI applications, it allows you to take advantage of up to 100 TOPS of performance and provides everything you need to start building right out of the box.
The kit runs Yocto Linux or Ubuntu and offers a wide variety of I/O and connectivity options, including support for up to 16 concurrent cameras.
Specifications:
| Dimensions: | 100 x 100 mm |
| Power Input: | DC barrel plug (20V/160W wall adapter provided) |
| Processors: | Qualcomm® IQ-9075 SoC built on 5nm LPE process:
Kryo™ Octa-core CPU: 1 Prime @ 3.36 GHz + 3 Gold @ 2.8 GHz + 2 Silver @ 2.0 GHz Quad Kryo Gold Prime with 512 KB L2 cache per core, targeting up to 2.36 GHz 2 MB shared L3 cache per cluster Adreno™ 663 GPU Spectra™ Image signal processor 690 Adreno™ 670 Video processing unit Adreno™ 1199 Display processing unit Dual Hexagon Tensor Processor (integrated with Hexagon DSP, quad Hexagon Vector eXtensions, and dual Hexagon Matrix eXtensions co-processors), Real-time subsystem (9075IQ) |
| Display Interfaces: | 2x mini-DP (one with MST)
1x DSI flex connection (display not included) |
| Camera Interfaces: | 4x MIPI CSI D-PHY 1.2 or C-PHY 2.0 camera ports with eight dedicated CCI I2C
Up to 16 concurrent cameras, 2 IFE + 5 IFE Lite |
| Connectivity: | 1x PCIex4 slot or expansion (switched)
1x m.2 E key (Wi-Fi) or expansion (switched) 1x CAN-FD on LS expansion 1x RJ45 (2.5 GbE) 1x USB Type C (host or device mode) 1x USB Type C (host mode) 1x USB 2.0 (host or device mode) |
| I/O Interfaces: | 2x UART (RX/TX)
1x UART (RX/TX/CTS/RFR) 1x SAIL-UART (RX/TX) 1x SAIL-SPI (CS0) 1x SAIL-SPI (CS0, CS1) 5x I2C 3x CCI_I2C 1x SAIL_I2C 44x SOC GPIO 30x PMIC GPIO (After using above listed QUPs, I2S) 6x QUP (L0/1) 3x QUP (L0-3) 1x QUP (L2/3) 1x QUP (QSPI) 1x QUP (L0-3, CS0, CS1) |
| Wireless: | Wi-Fi/Bluetooth: M.2 module with connector on mainboard (NFA765A Wi-Fi module with RF cables) |
