Inertial Labs' Wave Sensors utilize three-axis precision accelerometers, magnetometers, gyroscopes and barometric sensors to provide high-accuracy wave characteristics such as height, period, direction and energy, as well as heave, sway, surge, pitch and roll of the device under measure. Spectral data can be output as a complete set of Fourier coefficients and energies.

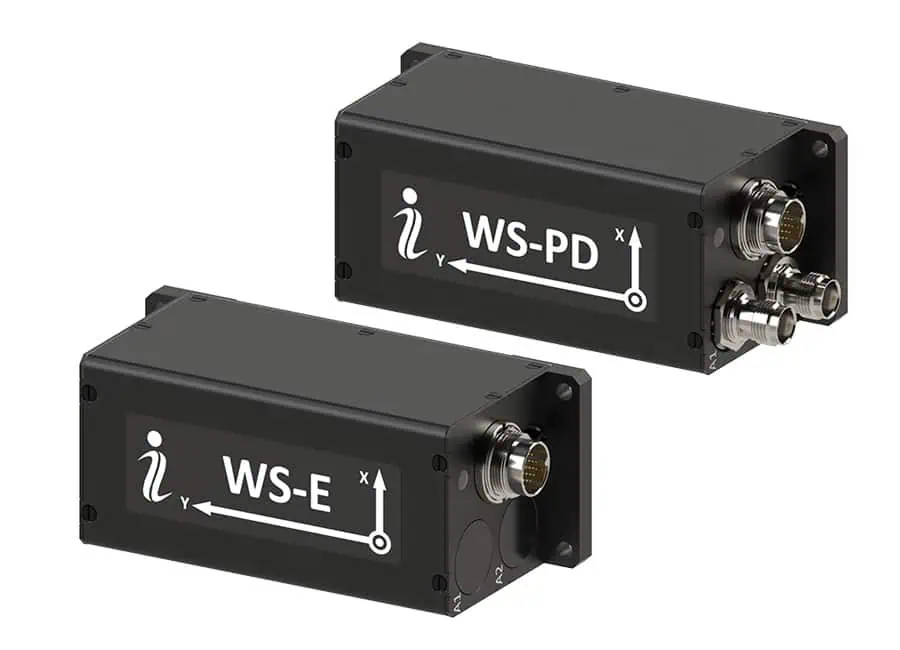

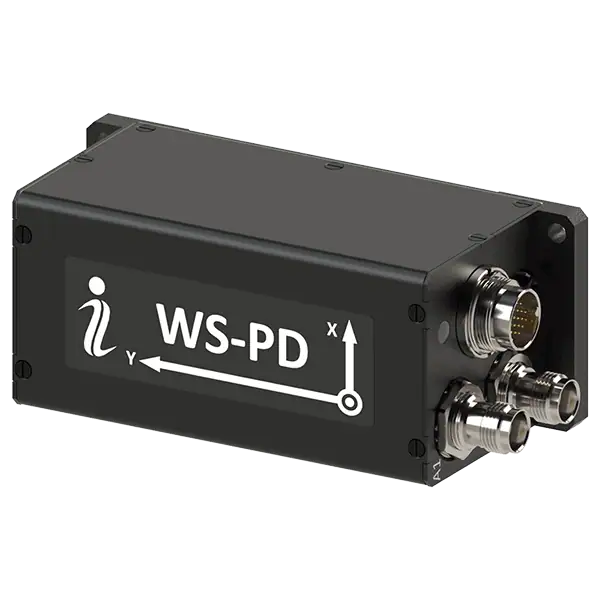

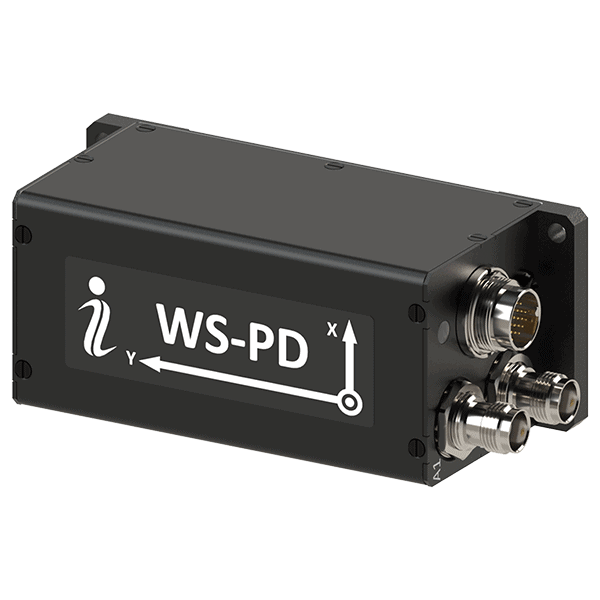

The sensors can be easily integrated with marine and maritime systems such as buoys or unmanned floating platforms to provide real-time data transmission. Two models are available - an Enhanced version, and a Professional Dual version that includes GNSS heading output and DGPS/RTK capabilities.
Wave Sensors are IP67-rated, and the WS-PD is also available in a ruggedized marine-hardened enclosure for subsea applications.
Specifications:
| WS-E | WS-PD | |
| Size | 120 x 50 x 53 mm | 120 x 50 x 53 mm |
| Weight | 320 g | 320 g |
| Wave Direction Accuracy | 1 deg RMS | 0.5 deg RMS |
| Pitch & Roll Accuracy | 0.02 deg RMS | 0.02 deg RMS |
| Heading Accuracy | 0.6 deg RMS | 0.05 deg RMS |
| Position Accuracy | N/A |
40 cm (DGPS) 1 cm (RTK) |
