NSP-7 Long-Range Radar

The NSP-7 is an extended-range multi-mode SAR designed for larger UAVs such as Group 4 and 5 platforms. Capable of imaging at distances of up to 32 km at a 1 metre resolution, it provides high-performance intelligence-gathering capabilities during the day or at night under all weather conditions.

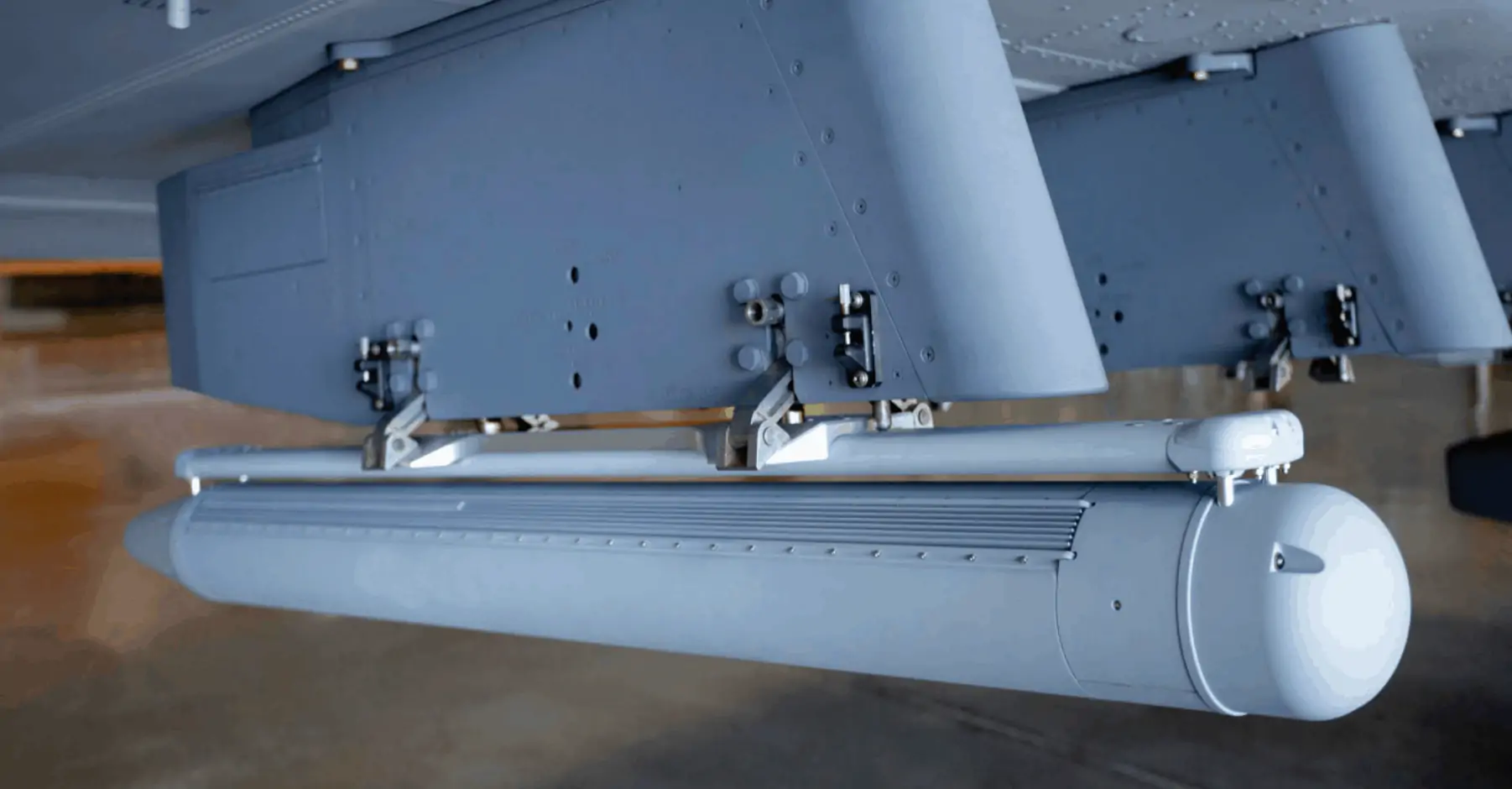

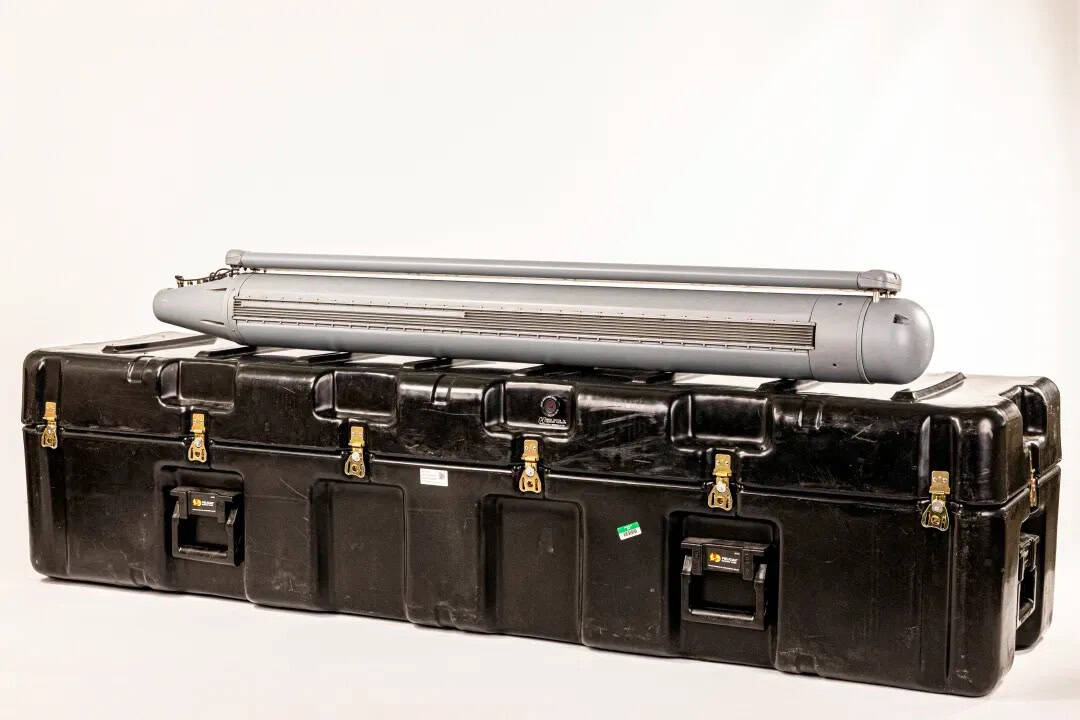

The NSP-7’s rugged weatherproof pod requires only power, Ethernet and a connection to a GPS antenna, and can be attached with MIL-Spec 14” lug mounts or via an adapter plate to the pod’s strongback rail. IMSAR can also design bespoke mounting solutions for a variety of platforms.

The NSP-7 can be controlled via IMSAR's intuitive Lisa 3D Command and Control (C2) and Processing, Exploitation, and Dissemination (PED) software. A Radar Control API is also available for easy integration with third-party and custom-developed software.

The NSP-7 can be connected to either an onboard Airborne Processing Server, or via a datalink to a Ground Processing Server. Radar data can be stored onboard for post-mission processing.

Dimensions (D x L x H) 13.7 x 147.6 x 17.3 cm (5.4 x 58.1 x 6.8 in)
Weight 10.9 kg/24 lbs (standard configuration)
Power 300W, 28 VDC
Range Resolution 0.1, 0.3, 0.5, 1, 2, 5, 10 m
SAR Imaging Max Range 39 km (0.3m resolution)
55 km (1m resolution)
MTI Vehicle Range 24 km
Maritime Surveillance Range Detection & geolocation 342 km (185 nm)
Detection & tracking 233 km (126 nm)
Classification 127 km (69 nm)
