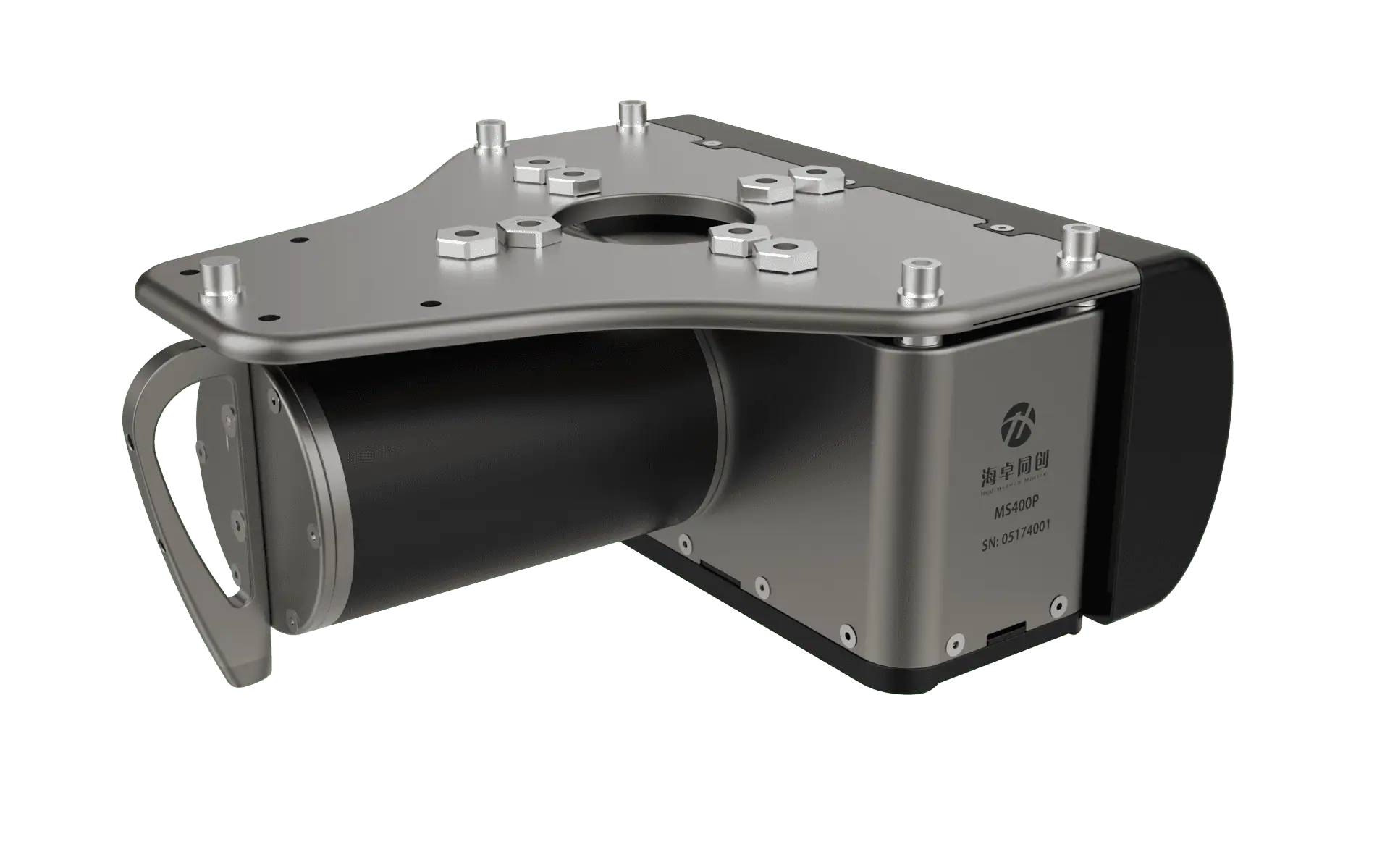

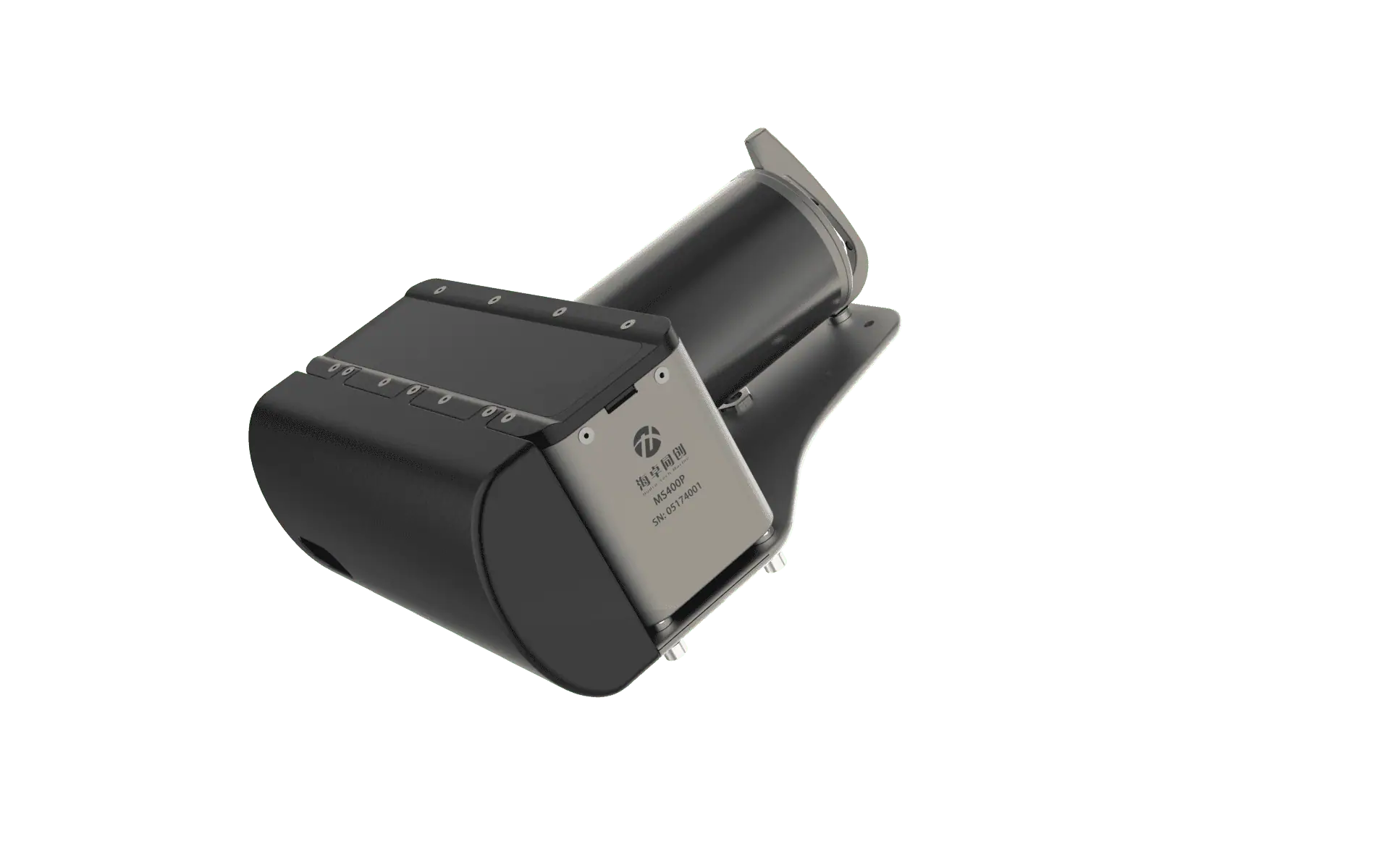

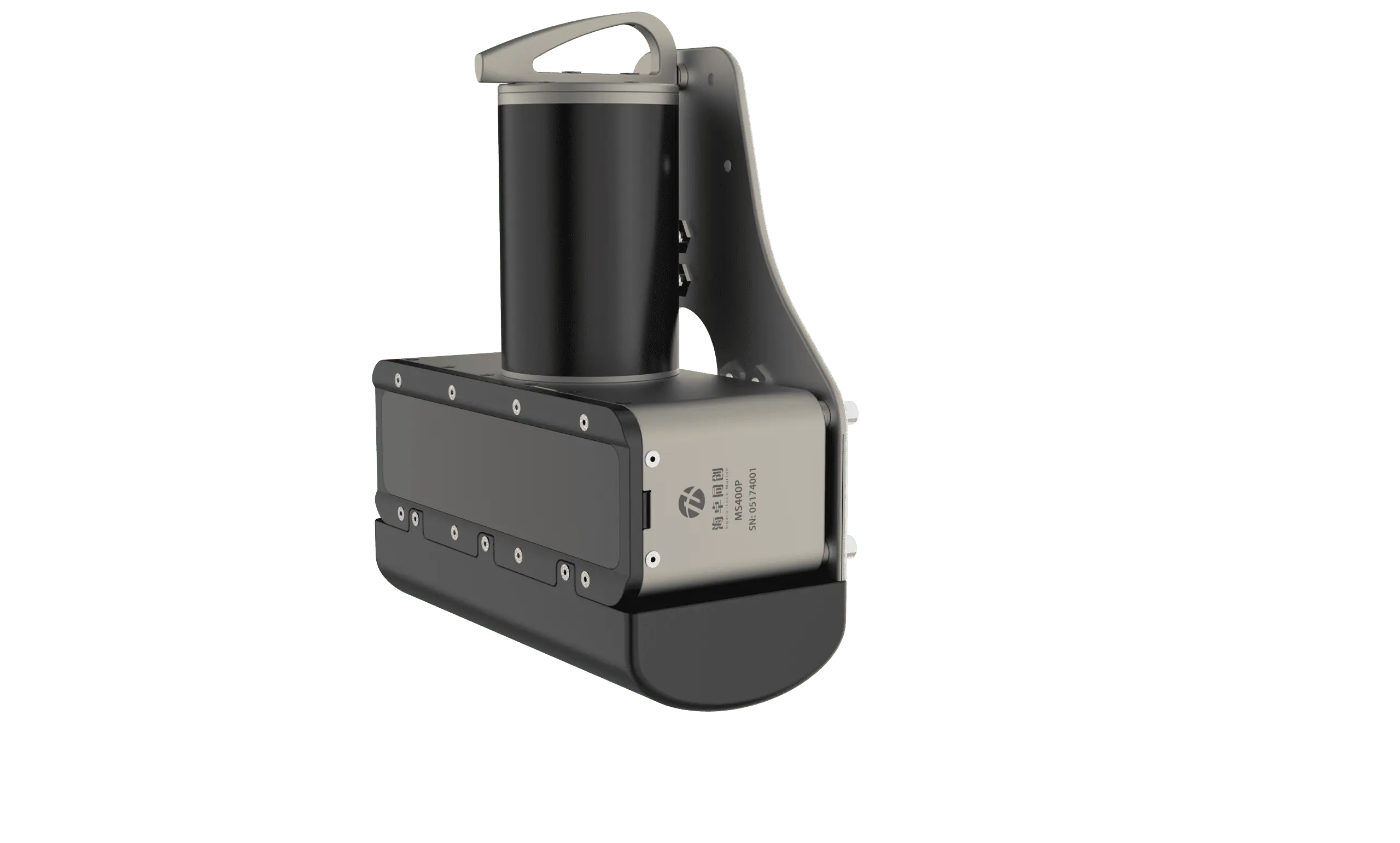

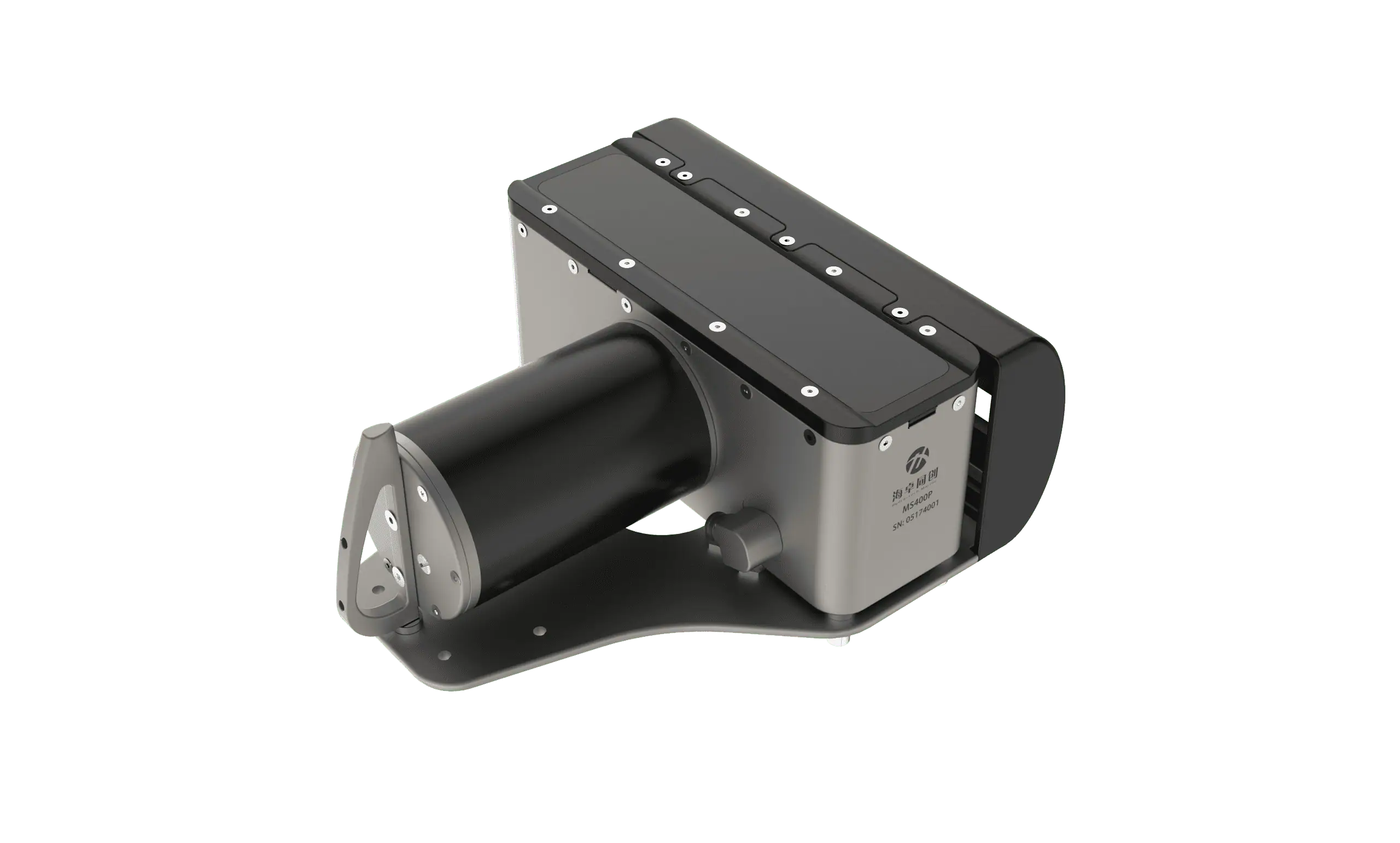

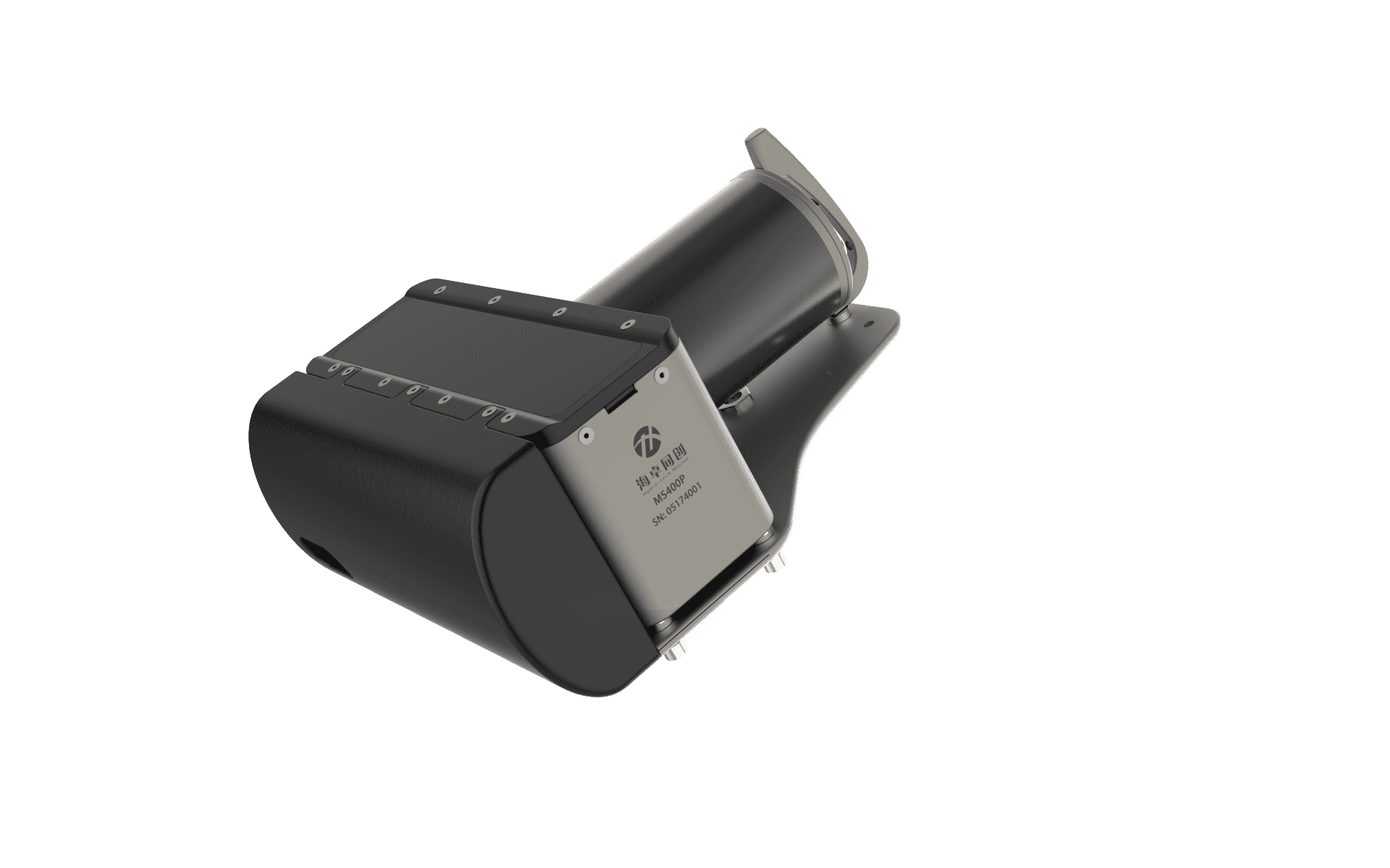

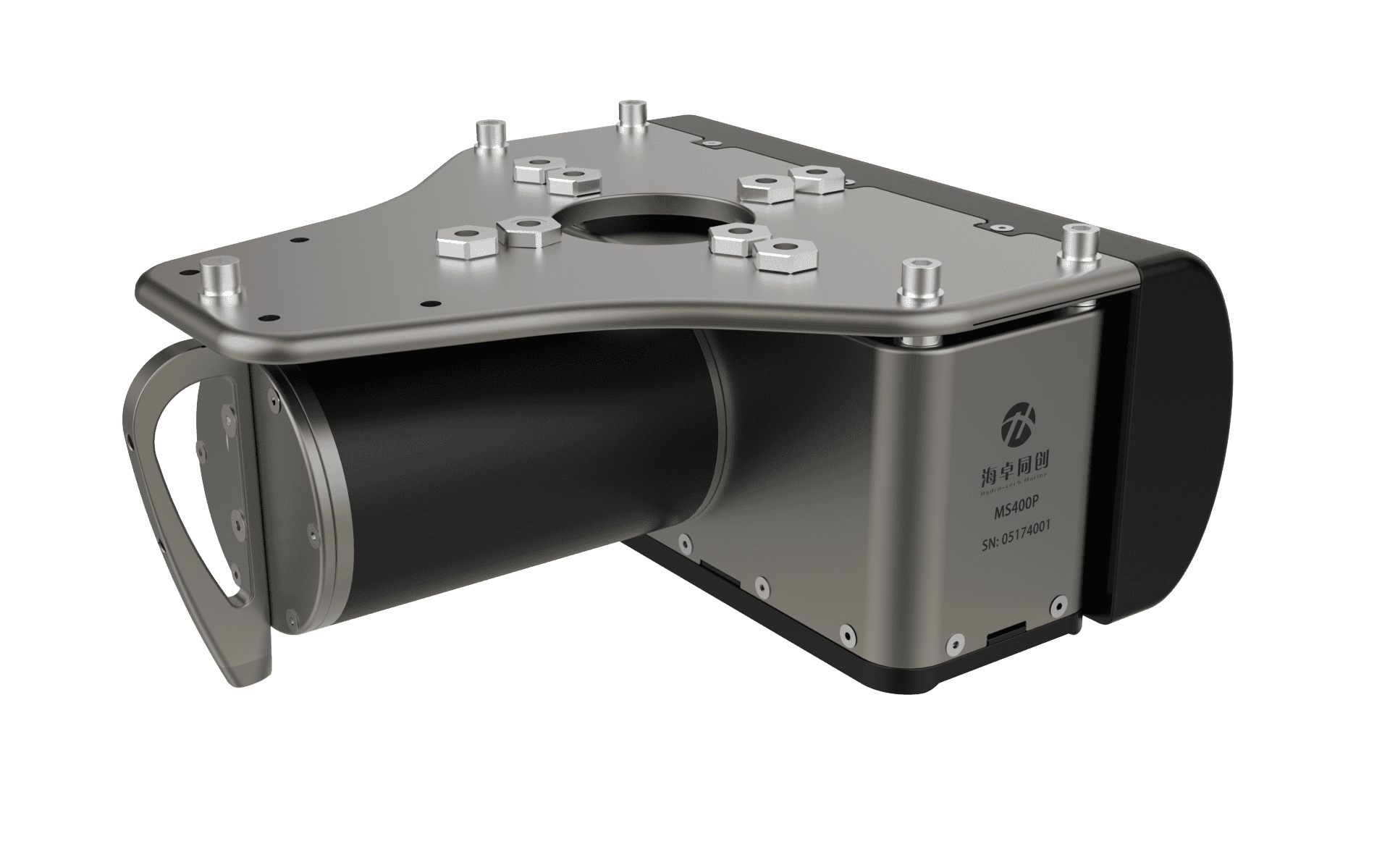

MS400P Portable Multibeam Echo Sounder
MS400P is a new generation multi beam echo sounder that fully reflects the trend of industry development. The system adopts advanced design concept and outstanding performance featuring compact size, lightweight (6.35kg only) and has low power consumptions (Less than 40W), system installation is fast and convenient. MS400P has transformed people’s cognition about traditional hydrographic surveying with powerful functions and high surveying accuracy, which totally in accordance with IHO standard. Ms400P is born to operate easily, even only one person can operate freely!
Specification：
| Dimension | 288mm*240mm*120mm |
| Weight | 8.3kg (In the air) |
| Power Supply | DC10V-32V / AC110V-240V |
| Working Frequency | 400kHz |
| No. of Beams | 512 |
| Depth Range | 0.2~200m（Customized） |
| Depth Accuracy | 0.75cm |
| Swath Coverage | 143° |
| Max. Working Depth | 50m |
