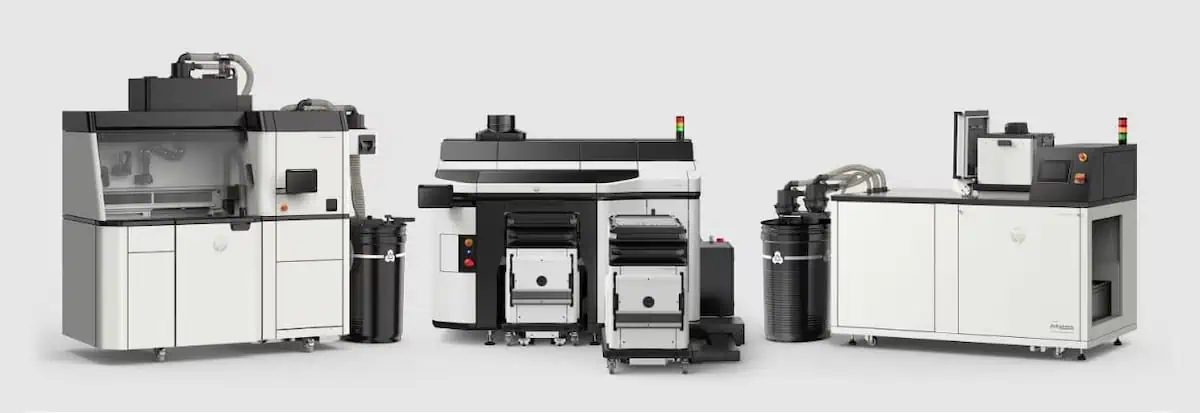

The HP Jet Fusion 5600 Series enables high-volume production of robust 3D printed parts, and is ideal for drone OEMs looking to efficiently scale up their drone manufacturing capabilities.
The advanced printer is based around HP Multi Jet Fusion (MJF) technology, which utilizes a unique multi-agent and multi-pass process and controls the properties of each individual voxel in every print. This results in the ability to combine fine detail with optimal mechanical properties, creating complex geometries that are impossible to produce with CNC machining.
Compatible with a variety of materials including flame-retardant and smooth surface finish options, the HP Jet Fusion 5600 Series 3D printer offers an effective build volume of 380 x 284 x 380 mm and a building speed of up to 3466 cm3 per hour.
The capabilities of this powerful printer can be enhanced further with the HP 3D Process Development package. The Process Development workflow allows you to customize and fine-tune critical process parameters according to specific application requirements, and to analyze and iterate until your drone parts are exactly optimized. The final settings can then be sent to the HP Jet Fusion 5600 to ensure the highest levels of repeatability at scale.
HP Jet Fusion 5600 Specifications:
| Printer Dimensions: |
2,210 x 1,268 x 1,804 mm (87 x 50 x 71 in) |
| Operating Area: |
3,700 x 3,700 x 2,500 mm (146 x 146 x 99 in) |
| Weight: |
Printer 880kg (1,940lb) Build unit 140.5kg (309.7lb) |
| Power Consumption: | 12 kW |
| Effective Build Volume: |
380 x 284 x 380 mm (15 x 11.2 x 15 in) |
| Building Speed: | Up to 3,466 cm3/hr (211 in3/hr) |
| Layer Thickness: | 0.09 mm (0.0035 in) |
| Job Processing Resolution: | 1200 dpi |
| Print Resolution: | 1200 dpi |
| Price: | On Application |
| Series: | HP Jet Fusion 5600 |
