Drone Fuel Cells

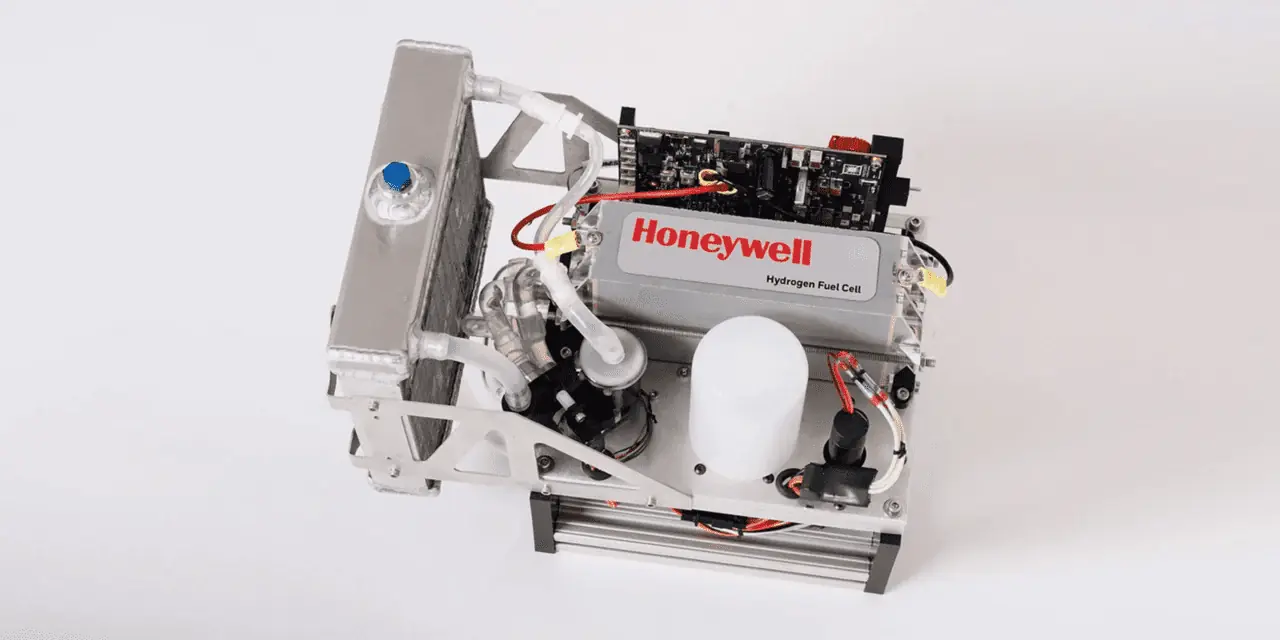

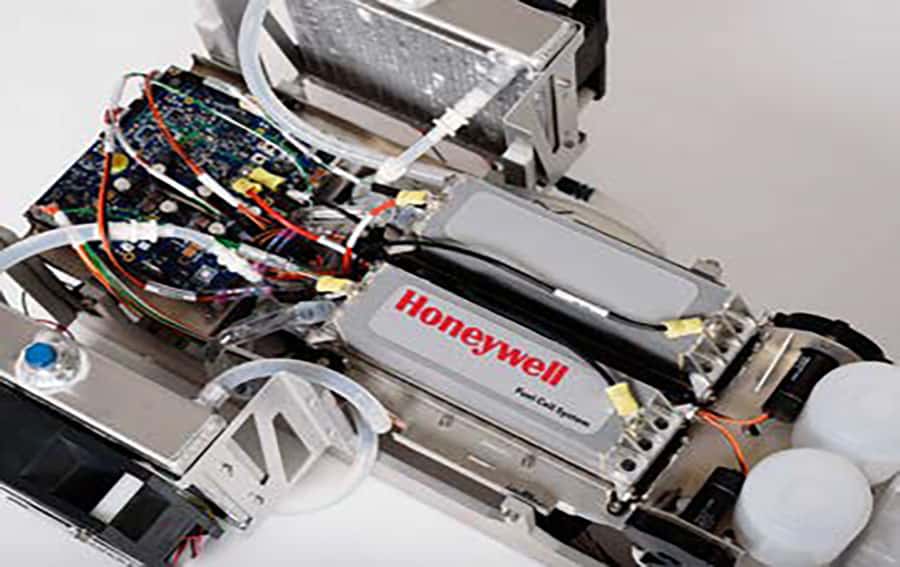

Honeywell's long range hydrogen fuel cells provide commercial UAVs with up to three times more endurance than batteries, with enhanced reliability and lower maintenance costs compared to fuel engines. Available in 600-watt and 1200-watt versions, the drone fuel cells produce only water as emissions and are virtually noise-free.

The liquid-cooled fuel cells need no recharging, significantly cutting downtime between missions with only a quick and easy hydrogen storage tank change required. The cells provide excellent cold-weather and high-altitude performance, and are ideal for empowering a variety of advanced drone applications such as ISR (intelligence, surveillance and reconnaissance), search and rescue, law enforcement, and precision agriculture.

600U 600U-HV 1200U
Dimensions (LxWxH) 9.5 x 6.7 x 5.5” 9.1 x 6.1 x 5.4” 17 x 10.5 x 6.5”
Weight 1.8 kg 1.9 kg 4.0 kg
Continuous Net Output Power 0 - 600W 0 - 600W 0 - 1200W
Max Net Output Power (with battery) 30A continuous
50A peak
60A continuous
100A peak
60A continuous
100A peak
Output Voltage 12 – 33.6V 8 – 58.8V 18 – 84V
Net Hydrogen Consumption Rate 53 g/kWh @ 200 W
63 g/kWh @ 650 W
53 g/kWh @ 200 W
63 g/kWh @ 650 W
53 g/kWh @ 400 W
63 g/kWh @ 1300 W
Ambient Temperature 5 to 45˚C 5 to 45˚C 5 to 45˚C
Standard Operating Altitude 0 to 15,000 ft 0 to 15,000 ft 0 to 15,000 ft
