H-RTK mosaic-H GPS Module

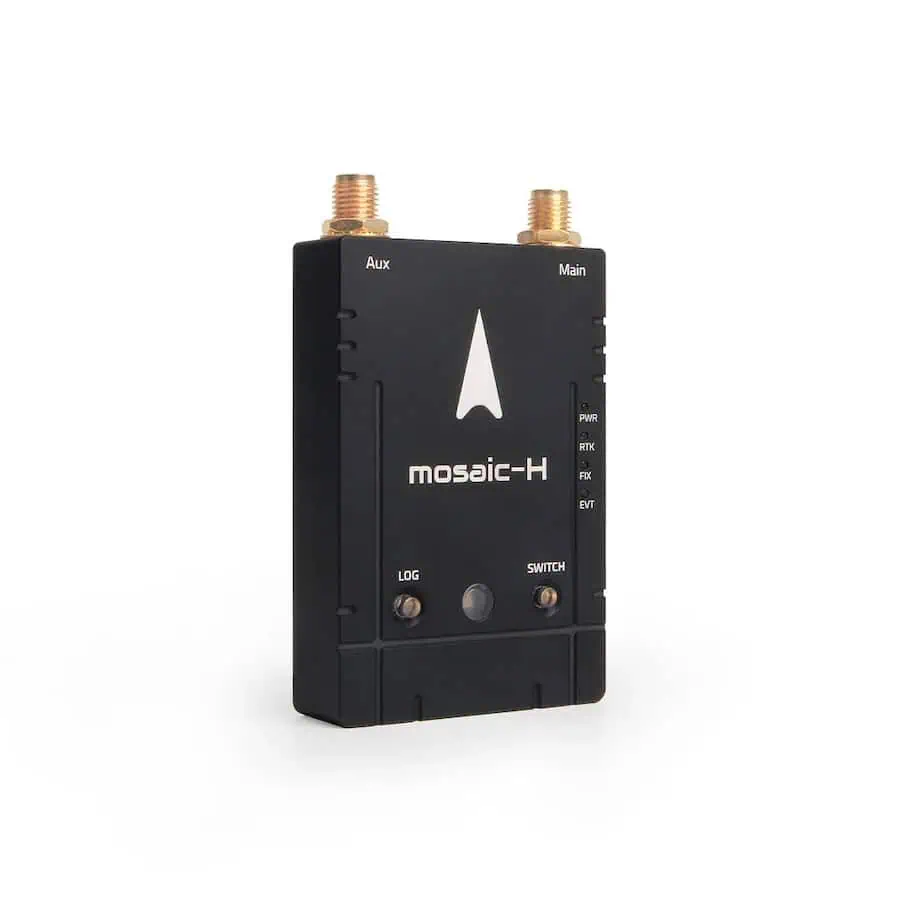

The H-RTK mosaic-H is a state-of-the-art RTK-capable GPS & GNSS module based around an advanced Septentrio receiver with dual antennas and an integrated magnetometer. It features built-in protection against intentional and unintentional jamming, ensuring reliability even under highly demanding conditions.

The dual-antenna module can utilize GPS as a yaw source instead of a traditional compass, eliminating issues caused by magnetic interference and providing drone autopilots with more accurate information for enhanced navigation performance.

Specifications:

Dimensions Board: 42.7 x 71.8 x 13.3 mm
Antenna: 40 x 76 mm
Weight 54.5g (without antennas)
Power 0.6W typical, 1.1W max
Frequencies GPS: L1, L2
Galileo: E1, E5b
GLONASS: L1, L2
Beidou: B1, B2, B3
QZSS: L1C/A, L1C/B, L2
SBAS: Egnos, WAAS, GAGAN, MSAS, SDCM (L1)
Positioning Accuracy Standalone: H 1.2m, V 1.9m
SBAS: H 0.6m, V 0.8m
DGNSS: H 0.4m, V 0.7m
RTK: H 0.6cm+0.5ppm, V 1.0cm+1ppm
Attitude Accuracy Heading 0.15o, pitch/roll 0.25o (1m antenna separation)
Heading 0.03o, pitch/roll 0.05o (5m antenna separation)
