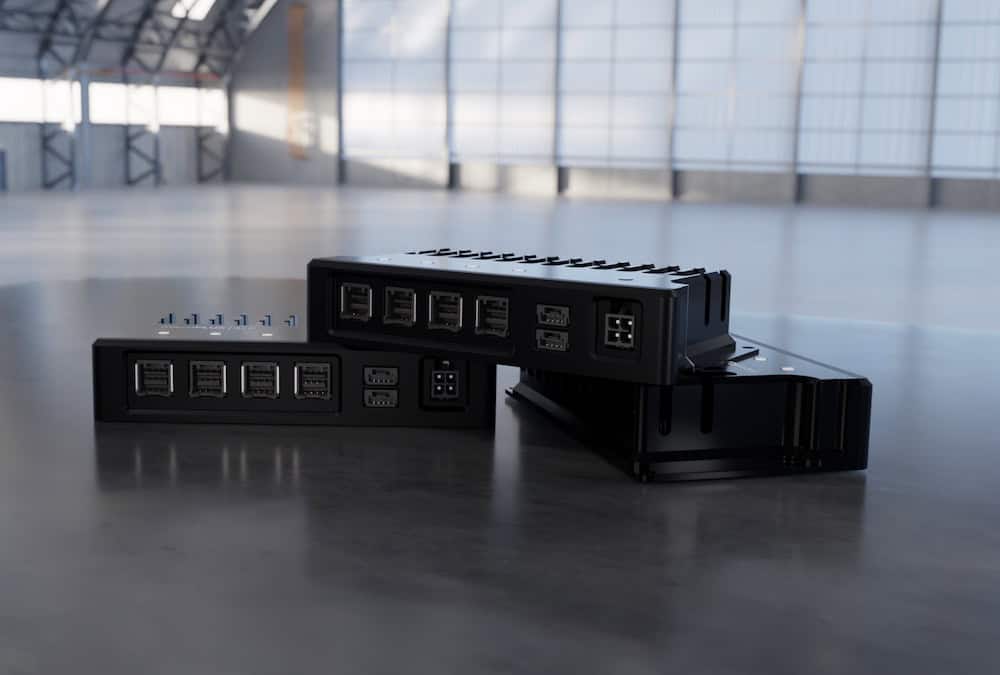

The microFLUX 4LP from Hargrave Technologies is a compact, flight-ready power solution engineered specifically for Uncrewed Aerial Systems (UAS) requiring adaptable, reliable electrical management. Drawing on over a decade of UAS power-electronics development, it provides a modular four-channel power architecture that supports both low and high voltage configurations, selectable on order. Each channel features digitally adjustable output control, giving designers the flexibility to match evolving system requirements without additional hardware redesign.
Built with Western-sourced, NDAA-compliant components, the microFLUX 4LP ensures dependable performance and transparent power oversight through DroneCAN integration. Operators gain live data on per-channel and system-wide metrics including voltage, current, and load behavior. The unit’s advanced diagnostics, circular data logging, and error-correcting memory enhance mission assurance while reducing integration time. The microFLUX 4LP is the first release in Hargrave Technologies’ FLUX family of modular, smart power supplies.
Specifications:
| Dimensions: | 21 x 103 x 56.85 mm [0.8 x 4.05 x 2.2 in] |
| Weight: | 108 g [3.8 oz] |
| Power Supply Voltage: | 15–60V [4S–14S] |
| Output Voltage: | Digitally Configurable per channel |
| Absolute Max Output Current: | LV Channel: 8A HV Channel: 6A |
| Rated Output / Continuous Current: | LV Channel: 7A HV Channel: 5A |
| Operating Temperature: | -20 to 50°C [-4 to 122°F] |
| CAN Bus Support: | DroneCAN |
