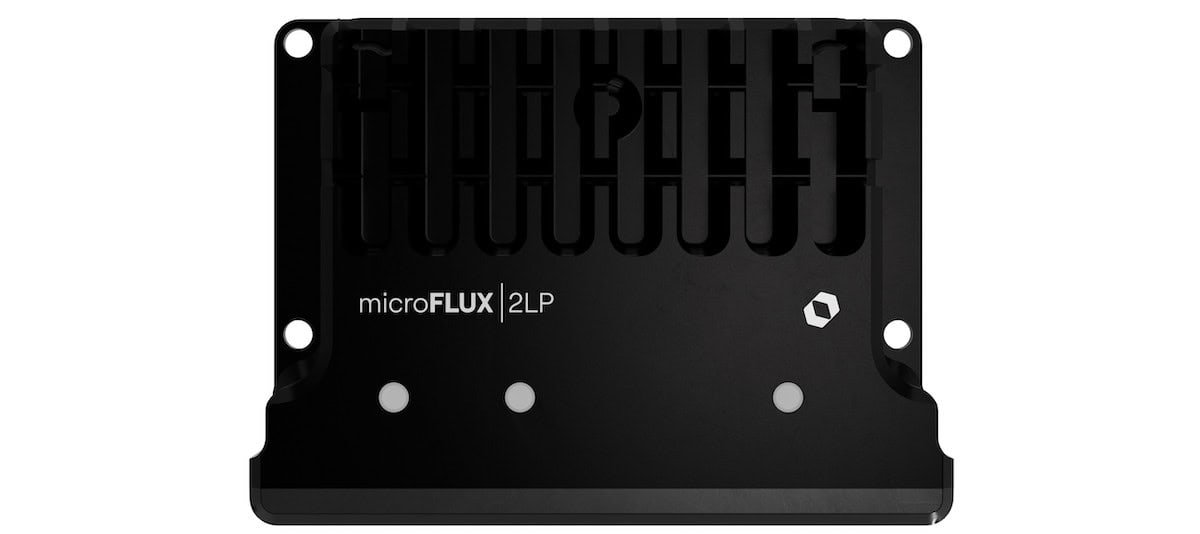

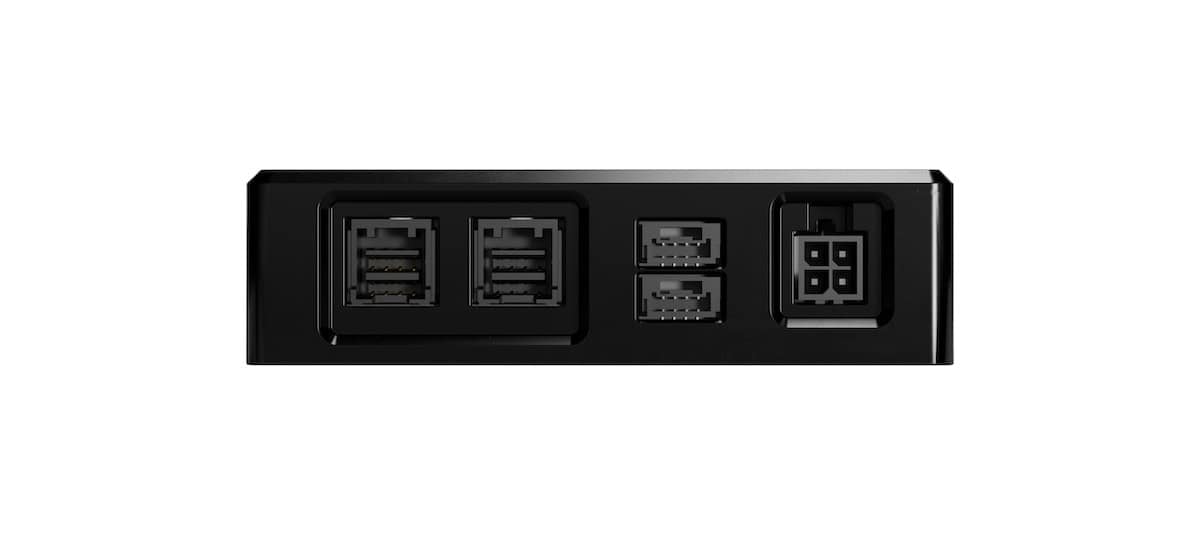

microFLUX2LP from Hargrave Technologies is a modular UAS power solution featuring two low-current outputs for modern uncrewed aircraft architectures. The compact 83 g unit supports adjustable output voltages from 3.3 V to 28 V, a maximum input voltage of 60 V, and output current of 5 A per channel. Digitally selectable voltages enable configuration for low-power avionics while helping to reduce cable bulk, space requirements, and system overhead.
Designed to simplify integration from the bench through first flight, microFLUX2LP provides real-time voltage, current, and power monitoring alongside high-speed circular data logging and configurable hardware protection mechanisms. Error-correcting memory, RGB state indication for each output and the overall system, and efficient operation across the load range further support dependable UAS power management.
Specifications:
| Maximum input voltage: | 60 V |
| Adjustable output voltage: | 3.3 – 28 V |
| Output current: | 5 A per channel |
| Power outputs: | 2 low-current outputs |
| Monitoring: | Real-time voltage, current, and power |
| Base weight: | 83 g |
