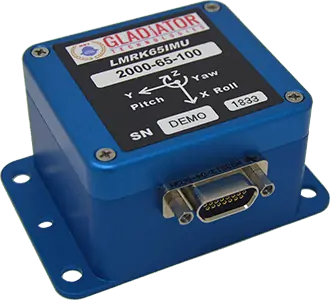

LandMark™ 65 IMU

The LandMark™ 65 MEMS IMU is our highest performing IMU with low noise and high dynamic range of 2000 deg/s gyros and 65g accelerometers. The rugged unit provides RS422/RS485 output at 5 kHz output and CANBUS 2.0B at 1MHz.

Built for robust performance in the demanding environments often faced by unmanned systems, the inertial measurement unit features environmental sealing, precision alignment, internal vibrational isolation as well as bias, scale factor and misalignment modelling over the entire operating temperature range.

Size: 4.6 cubic inches
Weight: 115g
In-Run Bias: 7°/hr
Gyro Noise: 0.002°/sec/√Hz
Accel Noise: 0.035mg/√Hz
