LandMark™ 60LX IMU Ultra-Low Noise MEMS IMU
LandMark™ 60LX IMU

Ultra-Low Noise MEMS IMU

Visit Website Send Message

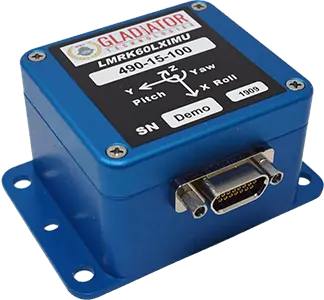

LandMark™ 60LX IMU

The LandMark™ 60LX is our highest-performing MEMS IMU, featuring ultra-low noise with a VRW of just 28 µg. It provides RS422/RS485 output at 3 Mbaud and CANBUS 2.0B at 1MHz, and is ideal for high-precision navigation and stabilization.

Built for robust performance in the demanding environments often faced by unmanned systems, the inertial measurement unit features environmental sealing, precision alignment, internal vibrational isolation as well as bias, scale factor and misalignment modelling over the entire operating temperature range.

Size: 4.6 cubic inches
Weight: 115g
In-Run Bias: 4°/hr
Gyro Noise: 0.0016°/sec/√Hz
Accel Noise: 0.028mg/√Hz
