LandMark™ 005 IMU Ultra Small Low-noise MEMS IMU
LandMark™ 005 IMU

Ultra Small Low-noise MEMS IMU

Visit Website Send Message
Saved
Save
LandMark™ 005 IMU

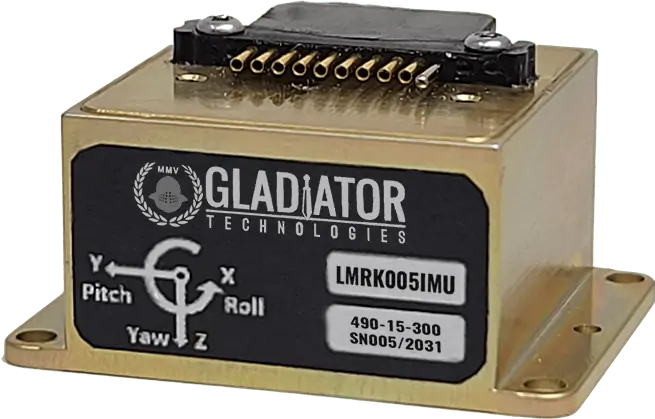

The LandMark™ 005 is an ultra-miniature MEMS IMU featuring our next-generation VELOX signal processing technology. With low noise and exceptional bias in-run and bias over temperature, it weighs in at just 18 grams with a size of 0.6 cubic inches.

Built for robust performance in the demanding environments often faced by unmanned systems, the inertial measurement unit features environmental sealing, precision alignment, internal vibrational isolation as well as bias, scale factor and misalignment modelling over the entire operating temperature range.

Size: 0.6 cubic inches
Weight: 19g
In-Run Bias: 4°/hr
Gyro Noise: 0.0018°/sec/√Hz
Accel Noise: 5mg/√Hz
