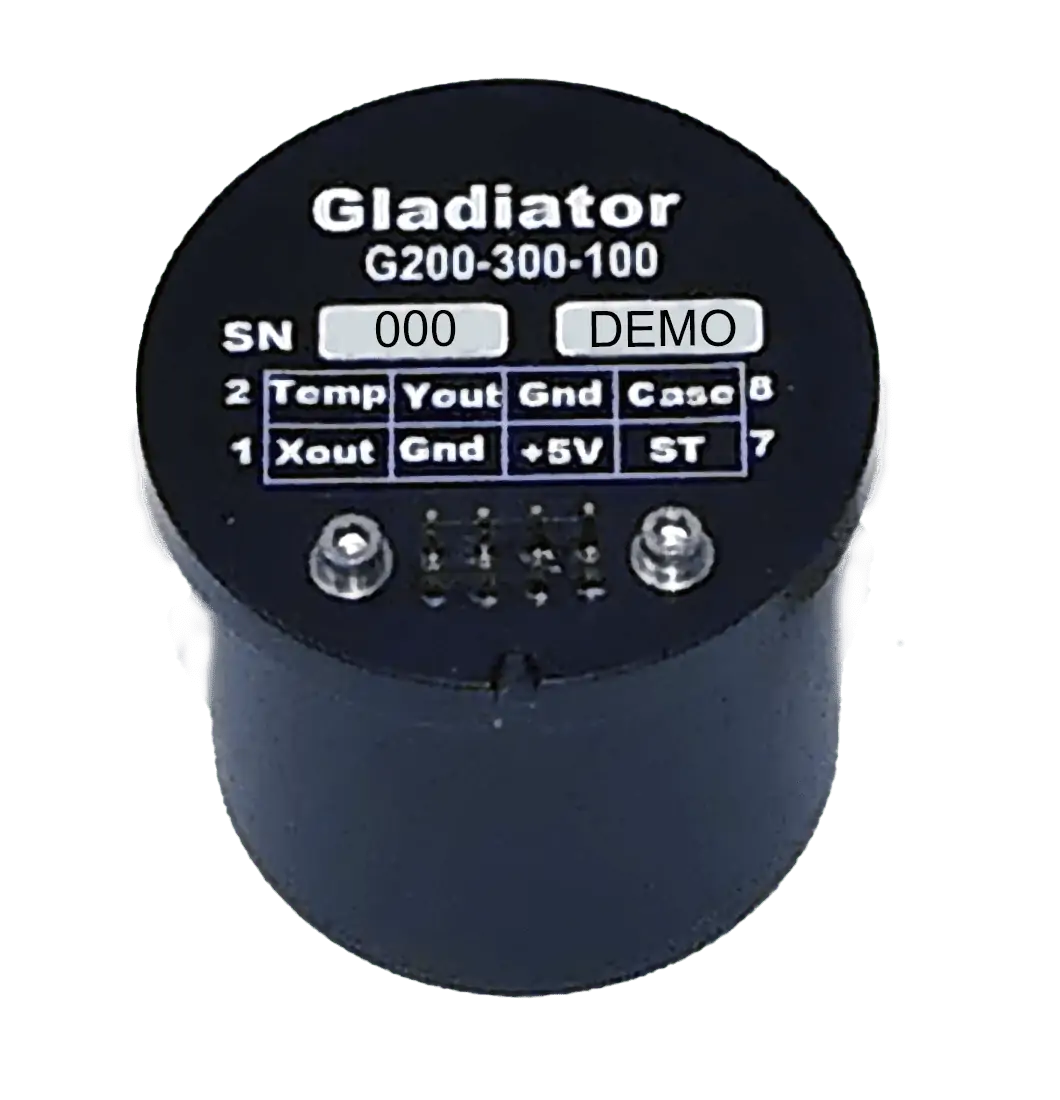

G200 Gyro

The G200 is a high-speed two-axis MEMS gyroscope with ultra-low noise and a SWaP-optimized form factor, making it highly suited to UAVs and unmanned systems.

The high-performance shock-resistant gyro is environmentally sealed and factory calibrated over the full temperature range, and is ideal for precision flight control, navigation and gimbal stabilization applications.

Size: 0.5 cubic inches
Weight: 18 g
Power Consumption: < 10mA typical
Noise: 0.003°/s/√Hz
Bias over Temperature: 0.3°/s
Bandwidth: 200 Hz
