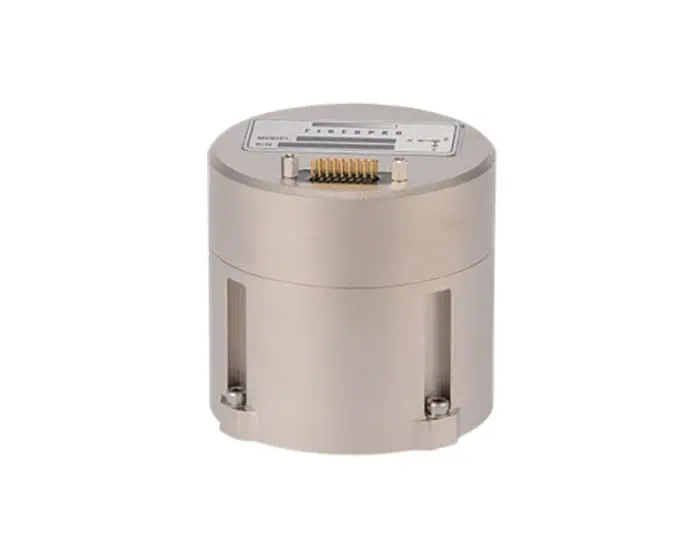

FI 200P Inertial Measurement Unit
Fiberpro's FI 200P is an advanced tactical-grade version of the FI 200C fiber optic gyro-based IMU, featuring enhanced accelerometer capabilities for extremely high-accuracy stabilization and control, and increased gyro and accelerometer operating ranges.
The FOG IMU is ideal for tactical UAV flight control, camera and payload stabilization, motion compensation, and incorporation into AHRS (attitude and heading reference systems). It offers integration options for UART (RS-422) and SDLC.
Specifications:
| Dimensions (D x H) | 88.9 × 84.5mm |
| Weight | 900g |
| Power Consumption | 5W |
| Gyro Bias Stability | 0.5 deg/hr |
| Gyro Scale Factor Accuracy | < 100 ppm |
| Gyro ARW | 0.025 deg/√hr |
| Gyro Range: | ±1,000 º/sec |
| Accelerometer Bias Repeatability | 300 μg |
| Accelerometer Scale Factor Accuracy | 200 ppm |
| Accelerometer VRW: | 0.015 m/s √hr |
| Acceleration Range | ±10g, optional up to 80g |
