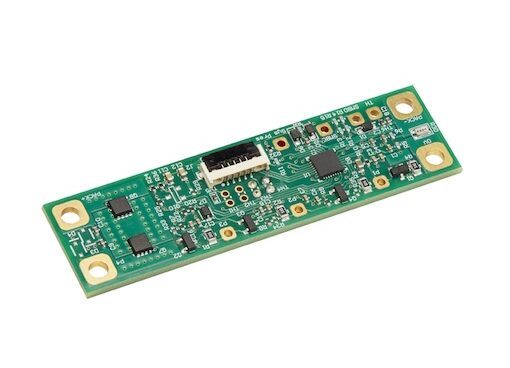

The IQ Prime (V04309) is a compact, cost-optimized Battery Management System (BMS) for small-to-medium battery packs. It supports configurations from 3S to 16S and combines cell-voltage sensing, temperature measurement, pack-current monitoring, protection, and 180 mA passive balancing. Integrated MOSFETs manage charge, discharge, pre-charge, and pre-discharge functions. Available variants use MOSFET voltage ratings matched to the selected battery chemistry and pack-voltage requirements.
IQ Prime provides continuous current handling up to 50 A and accepts as many as three NTC inputs for cell-temperature monitoring. Redundant voltage and thermal protections work alongside a heater drive with 5 A current sensing. An optional controllable secondary safety fuse strengthens the protection architecture, while onboard resistive current sensing supports pack monitoring. Microprocessor-based algorithms estimate state of charge and state of health. Integration options include a non-isolated CAN or SMBus interface, on/off control, and five-segment LED display output. Shutdown-mode quiescent consumption is below 10 μA.
Specifications:
| Dimensions: | 100 mm (L) × 55 mm (W) × 12 mm (H) |
| Current Rating (Continuous): | Up to 50 A |
| Cell Voltage Sensing: | 3S to 16S |
| Cell Temperature Inputs: | Up to 3 NTC inputs |
| Cell Balancing: | 180 mA passive balancing |
| Safety Protections: | Redundant OVP Redundant UVP Redundant OTP Redundant UTP |
| Heater Control: | Heater drive with 5 A current sensing |
| System Control Inputs: | On/off control input |
| Energy and Health Algorithms: | Microprocessor-based SOC / SOH estimation |
| Primary Protection Switching: | Onboard MOSFETs for charge/discharge control |
| Secondary Protection: | Optional controllable fuse Redundant OCC / OCD / SC |
| Current Measurement: | Onboard resistive current sensing (R-shunt) |
| Communications: | 1 non-isolated CAN or SMBus interface |
| User Feedback: | 5-segment LED display output |
| Sleep State Consumption: | <10 μA quiescent in shutdown mode |
