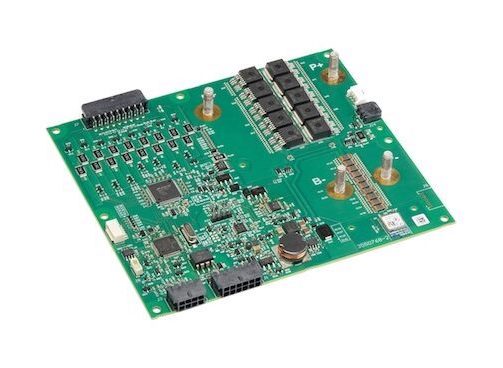

The IQ Power (V04306) is a compact, contactor-capable Battery Management System (BMS) controller developed for integrated battery pack designs. It supports configurations from 3S to 16S and monitors cell voltage, temperature, and pack current while providing balancing and protection. Standard cell-balancing current is 100 mA, with a 180 mA option available. The controller can be configured with or without contactor driving and adapted across multiple battery chemistries and pack sizes.
IQ Power works with the V07043 Power Sensing Module family, which is available in 100 A, 200 A, and 300 A versions for current and high-voltage pack sensing. The module can be integrated with the V04306 to reduce wiring and overall footprint or installed separately using a standard harness. Optional secondary protection adds another safety layer, while high-side MOSFET and controllable fuse drives support power-path management. Wired connectivity includes one non-isolated CAN interface and three isolated CAN interfaces, with BLE, Wi-Fi, and LED status output also supported.
Specifications:
| Cell Voltage Sensing: | 3S to 16S |
| Cell Temperature Sensing: | Up to 5 NTC inputs |
| Cell Balancing: | 100 mA standard 180 mA optional |
| Safety Protections: | Redundant OVP Redundant UVP Redundant OTP Redundant UTP |
| Current and Thermal System Management: | Heater drive 5 A current sensing |
| I/O Control: | On/off control input 4 programmable GPIO |
| Energy and Health Algorithms: | μP-based SOC / SOH estimation |
| Contactor / Fuse Control: | Redundant OCC / OCD / SC protection High-side MOSFET drive Controllable fuse drive |
| Current Measurement: | R-shunt based current sensing |
| Connectivity: | 1 non-isolated CAN 3 isolated CAN 1000 V isolation |
| Wireless and User Interface: | BLE and Wi-Fi support LED status output |
| Functional Safety: | All safety functions fully supported by internal circuits |
