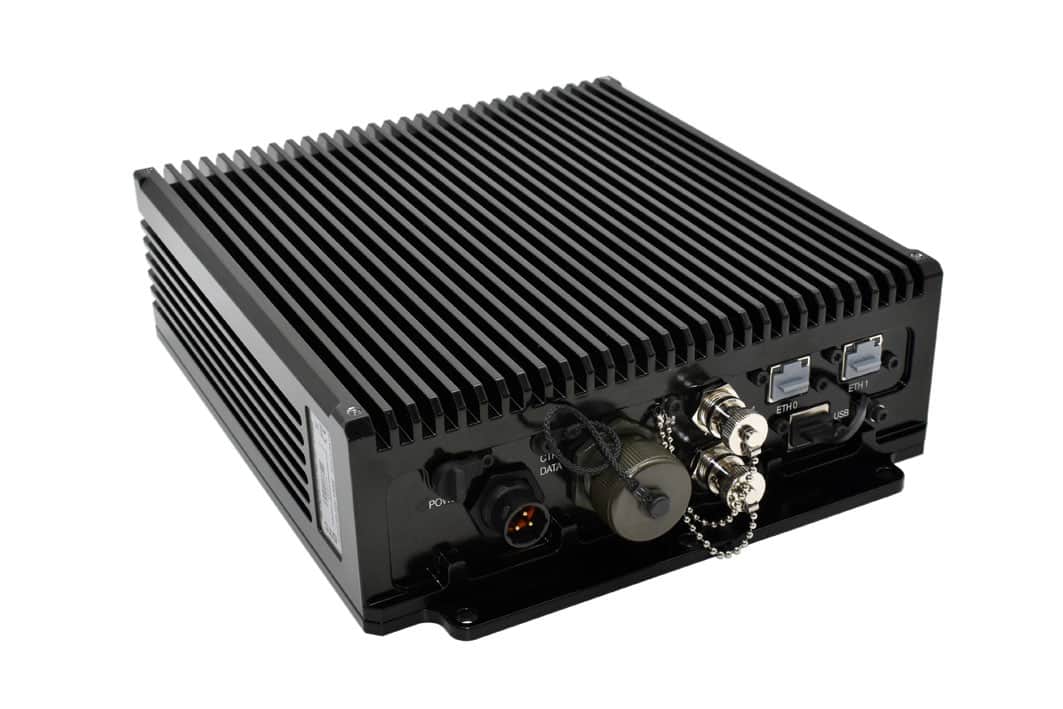

BluSDR-200
DTC's highest power Mesh product, BluSDR™-200 provides up to 30W total RF power output. BluSDR™-200 is designed for either mobile or fixed site applications, and is particularly suitable for drone platforms operating in extra-long range applications up to 200km.
Based around DTC's SOL8SDR (software defined radio) architecture and offering a full 2x15W of output power, BluSDR™-200 includes MANET IP Mesh capability to allow up to 144 nodes in a self-healing network using DTC's industry leading MeshUltra-X™ waveform.
BluSDR™-200 includes a rich set of interface options including Ethernet, USB, serial data, audio and dual HD-SDI video inputs.
Features and Benefits:
- 2x15W COFDM transceivers, 30W total
- Ideal for extra long range applications up to 200km
- Rugged IP66 design for environmental resistance
- MeshUltra™ MANET waveforms included to support up to 144 nodes in a self forming self healing Mesh network
- Optional AES128/256 encryption (accredited to FIPS140-2 for MeshUltra™ waveforms)
- USB support for peripherals such as 3G/4G/Wi-Fi dongles
- RNDIS support for Ethernet over USB
- Data capacity up to 90Mbps in 20MHz channel bandwidth
- Built-in video encoders
- Interlink mode for enhanced capability and large scale systems
- 64GB built-in storage
