The Dronetag DRI module allows OEMs of Standard Remote ID (US) and C-class (EU) drones to easily integrate compliant RID technology into their designs. Requiring only a single cable to connect, Dronetag DRI is compatible with all standard Pixhawk controllers running PX4 or Ardupilot out of the box, and Dronetag can also customize the board-level module to suit unique requirements and custom firmware.
The versatile module includes a UART forwarding feature that allows it to be installed between the flight controller and a serial peripheral, allowing you to install the device even if all ports are occupied.
Dronetag DRI is available with an internal antenna for easy plug-and-play integration, or with a U.FL connector that allows you to add your own selected antenna.
Specifications:

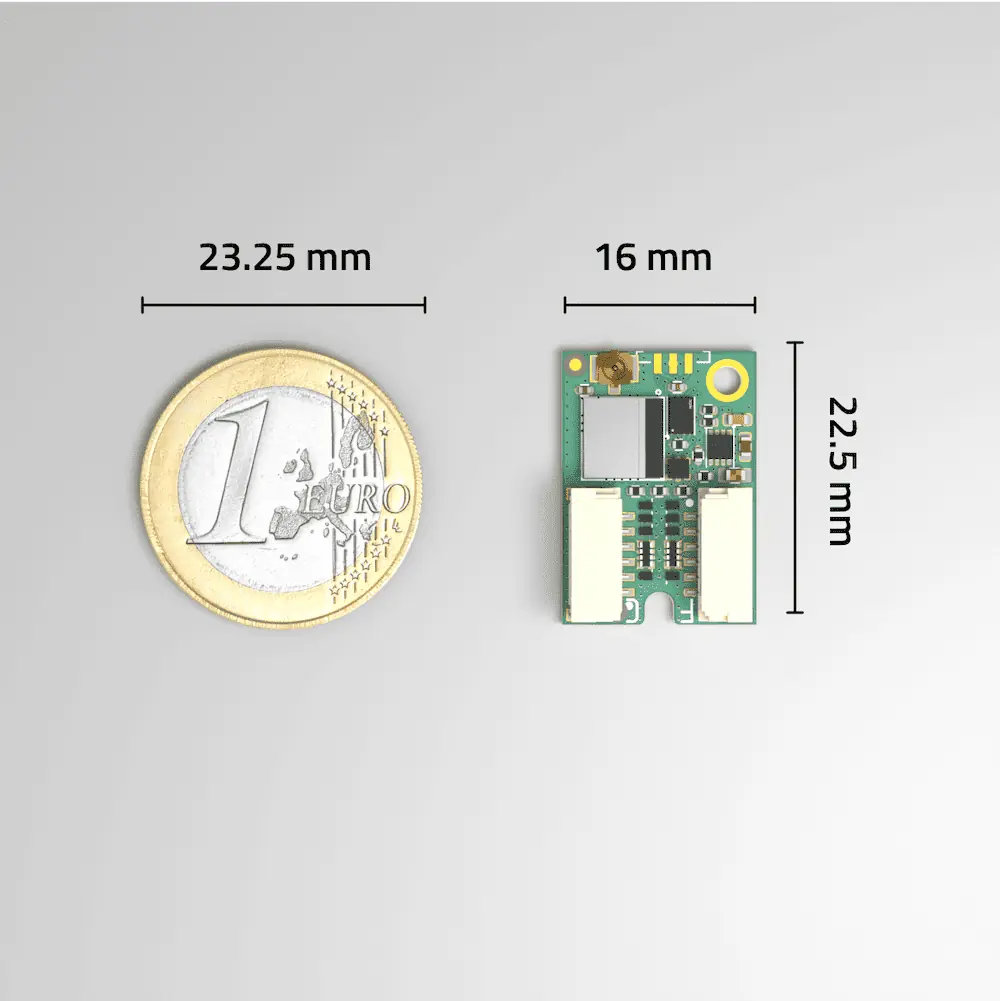

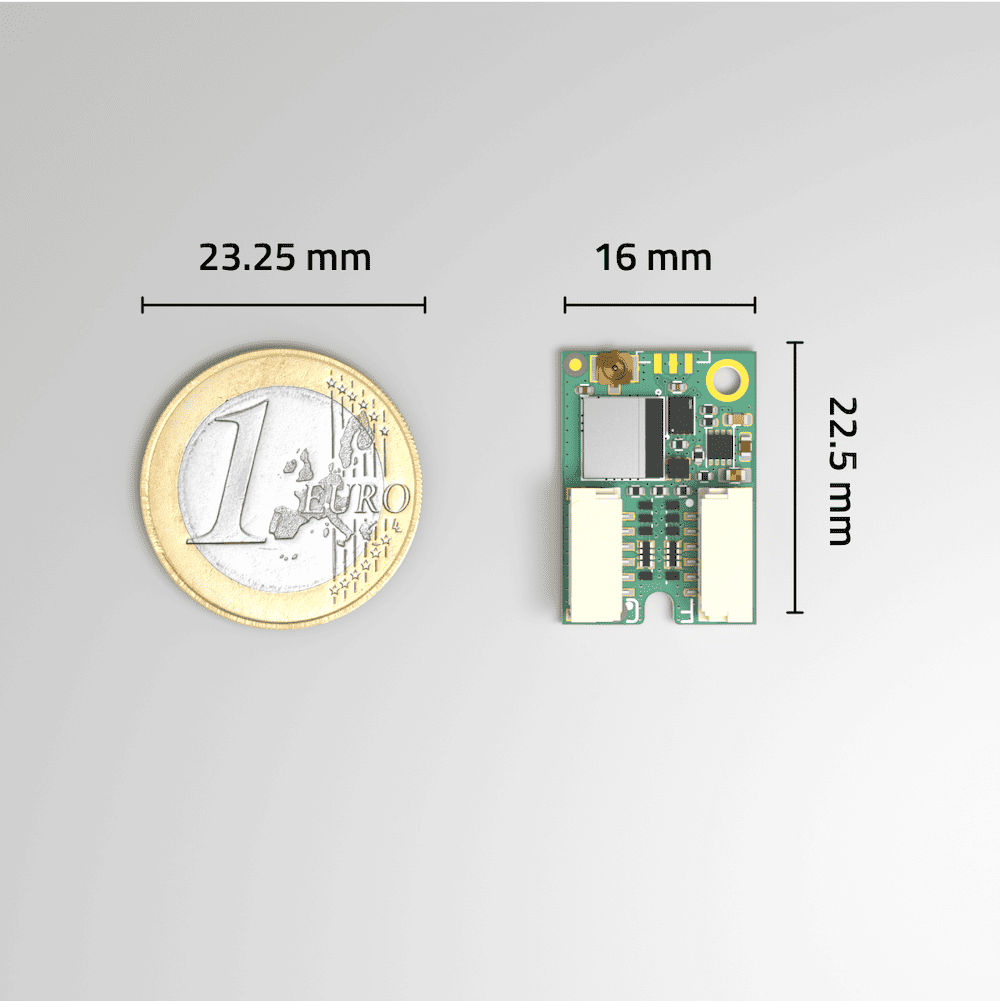

| Dimensions | 22.5 × 16 × 5 mm (0.89 x 0.62 x 0.19 in) |
| Weight |
1.5 grams (0.56 oz) with JST connectors 0.5 grams (0.017 oz) without JST connectors |
| Current Consumption | 3 mA average, 10 mA max |
| Short-Range Radio | Bluetooth 2.4GHz |
