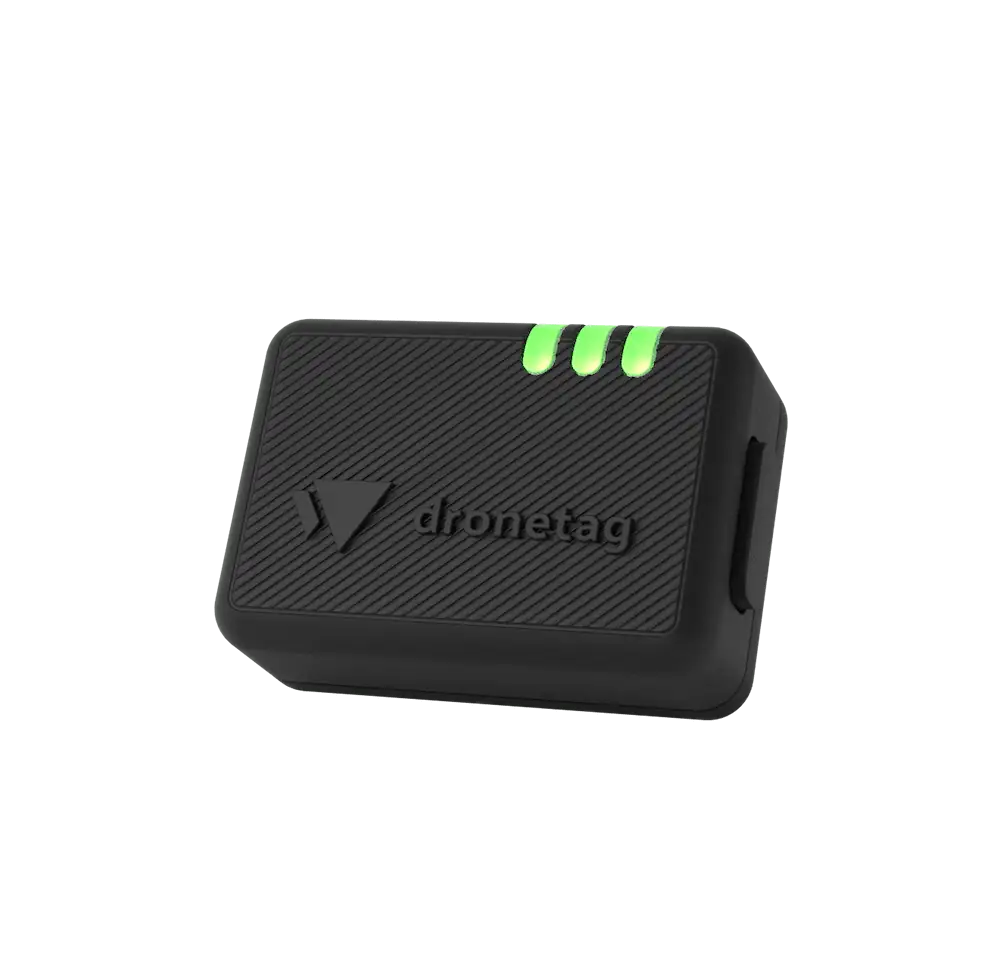

Dronetag Beacon
Dronetag Beacon is an add-on module that provides instant compliance with US (Broadcast) and EU (Direct) Remote ID regulations, and is also suitable for use in any countries using ASD-STAN or ASTM standards. Weighing just 17 grams, it can be easily integrated into virtually any drone, and transmits all required information via Bluetooth at ranges of up to 3 km.
Beacon integrates a multi-constellation GNSS receiver for robust and reliable positioning, as well as a pressure altitude sensor and an accelerometer for free-fall detection. It offers up to 16 hours of battery life and can also be powered by the drone. External Bluetooth antennas can be connected to the device for enhanced signal reception.
Specifications:

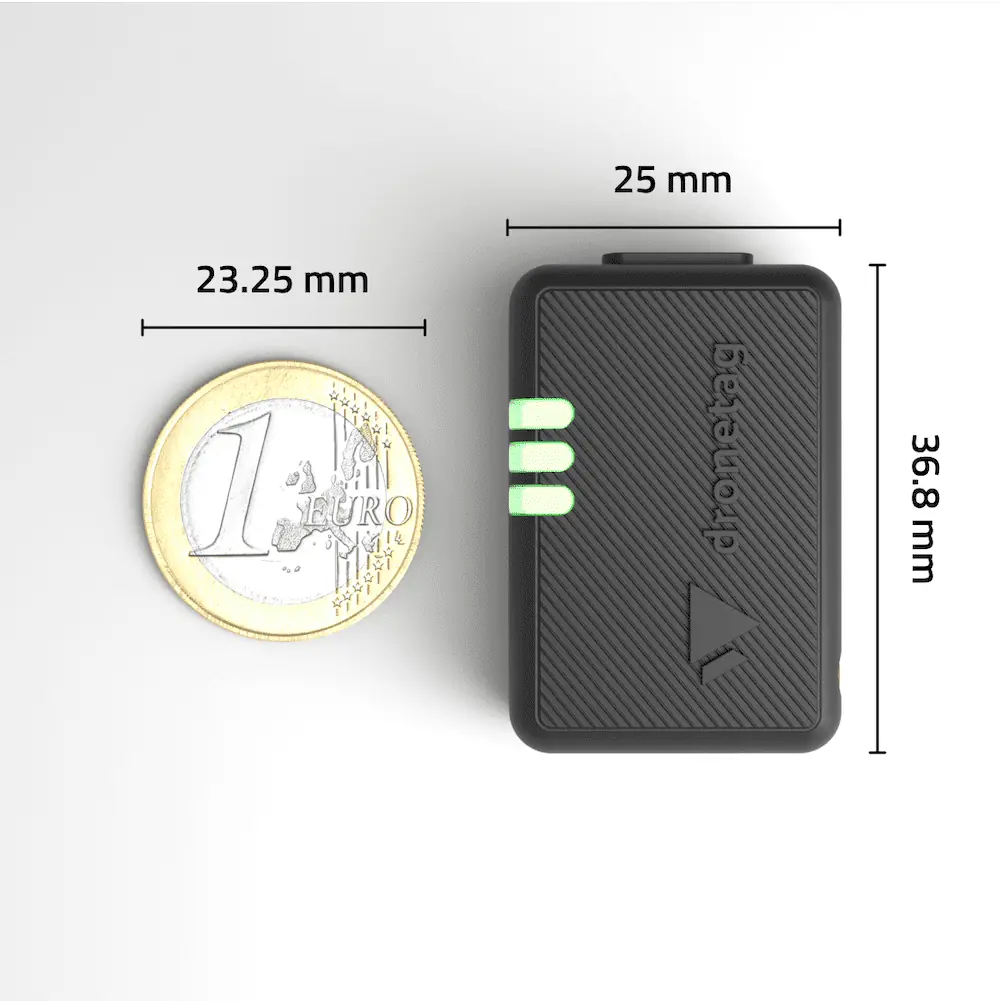

| Dimensions | 37 × 26 × 16 mm (1.5 × 1.0 × 0.6 in) |
| Weight | 16g (0.56 oz) |
| Current Consumption | 15 mA average, 100 mA max |
| Short-Range Radio | Bluetooth 2.4GHz |
| GNSS | GPS L1, GLONASS L1, Galileo E1, SBAS |
| IP Rating | IP43 |
