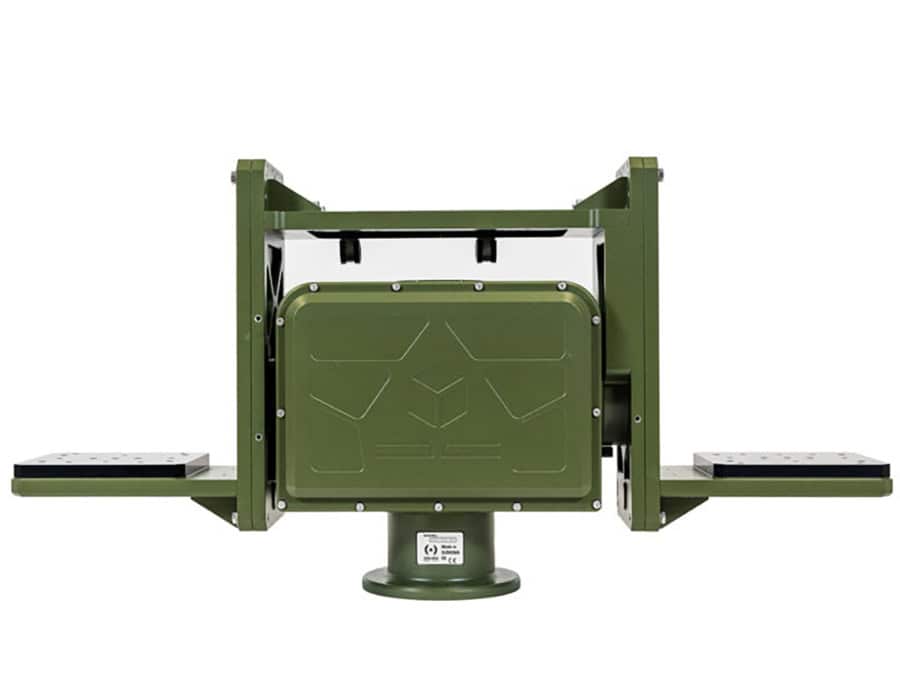

TRACER
TRACER is a rugged and fully marinized pan-tilt system with a compact design and low weight. Capable of handling up to 35 kg, it can be equipped with multiple slip-ring options, making it compatible with a wide range of payloads from high-frequency antennas to Ethernet-driven electro-optical units.
The IP67-rated unit can be controlled via 10/100 Base-T Ethernet, RS-232, or RS485/422.
Specifications:
| Dimensions: | 328 x 337 x 220 mm |
| Weight: | 17.5 kg |
| Power: | 24 VDC 160 W max |
| Load Capacity: | 35 kg |
| Torque: | 60 Nm |
| Pan Axis: | Range: 360° continuous Speed: 0.001 – 60 °/s |
| Tilt Axis: | Range: ± 90° Speed: 0.001 – 60 °/s |
| Accuracy: | 0.02° |
