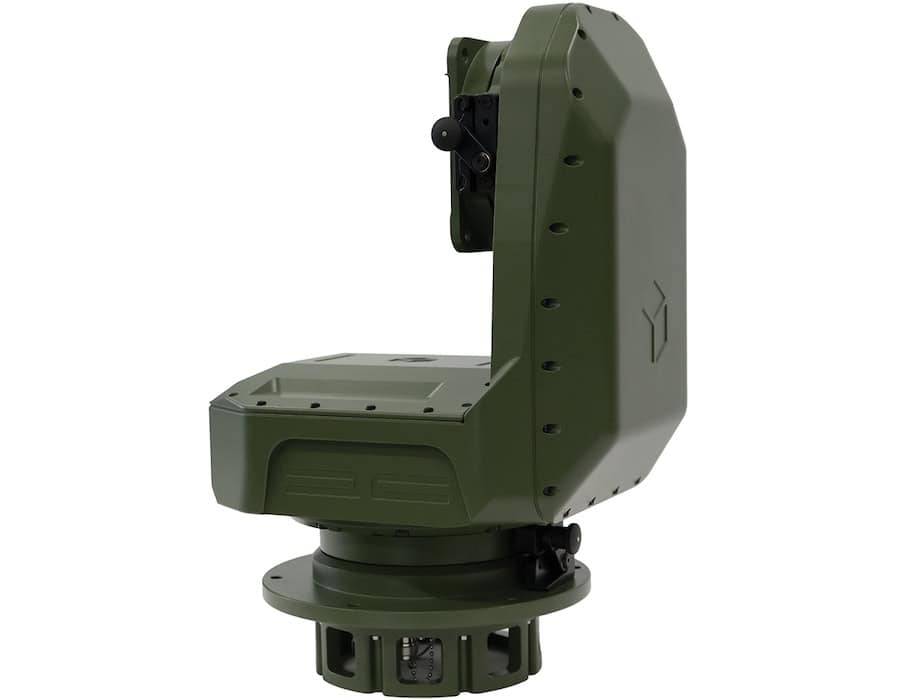

PT SPIRIT Lite
PT SPIRIT Lite is a compact modular pan-tilt system built for accurate payload positioning in challenging operating conditions. Supporting payloads up to 10 kg, the unit combines stabilized movement, continuous pan rotation, and rapid pan and tilt axis performance within a lighter-weight design.
The system offers backlash-free operation, a 24 VDC brake, and communications via Ethernet 10/100 Base-T, RS-232, and RS-485/422.
Specifications:
| Dimensions: | 444 x 286 x 240 mm |
| Weight: | 17 kg |
| Power: | 24 VDC 800 W max |
| Load Capacity: | 10 kg |
| Torque: | 6 Nm |
| Pan Axis: | Range: 360° continuous Speed: 0.001 – 400 °/s |
| Tilt Axis: | Range: -30°, +70° (±90° on request) Speed: 0.001 – 400 °/s |
| Accuracy: | 0.002° |
