LOCATOR

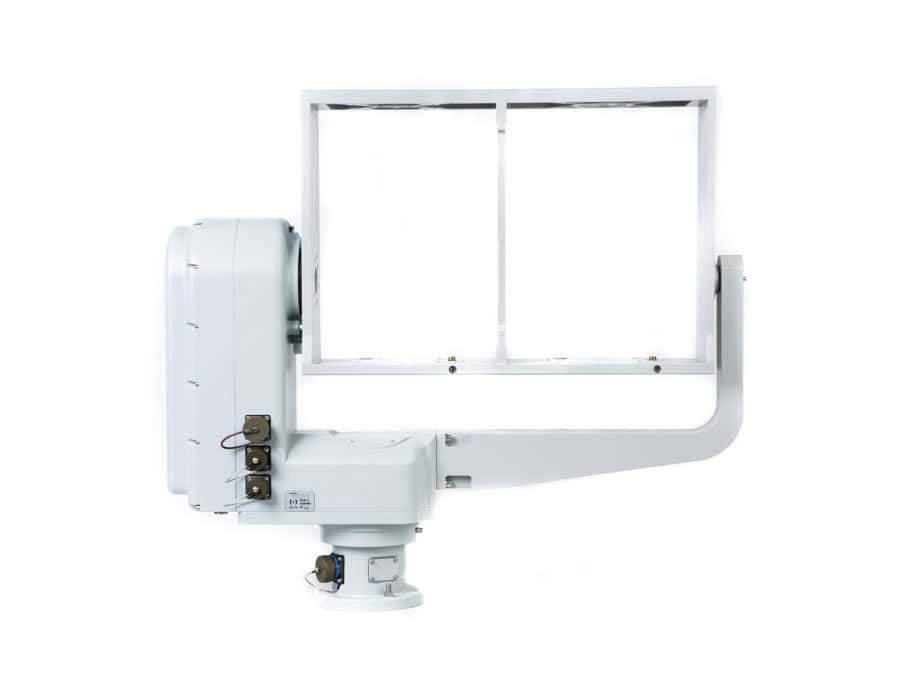

LOCATOR is a rugged L-shaped pan-tilt system with two high-performance drives and advanced motion control. The unit features a wide speed range, allowing it to perform slow movements for tracking distant objects, as well as fast acceleration for stabilization and close-range tracking applications.
The IP67-rated unit can be controlled via 10/100 Base-T Ethernet, RS-232, or RS485/422.
Specifications:
| Dimensions: | 639 x 452 x 390 mm |
| Weight: | 60 kg |
| Power: | 24 VDC 600W max |
| Load Capacity: | 200 kg |
| Torque: | 300 Nm |
| Pan Axis: | Range: 360° continuous Speed: 0.002 – 40 °/s |
| Tilt Axis: | Range: ± 90° Speed: 0.002 – 35 °/s |
| Accuracy: | 0.002° |
