CRAWLER

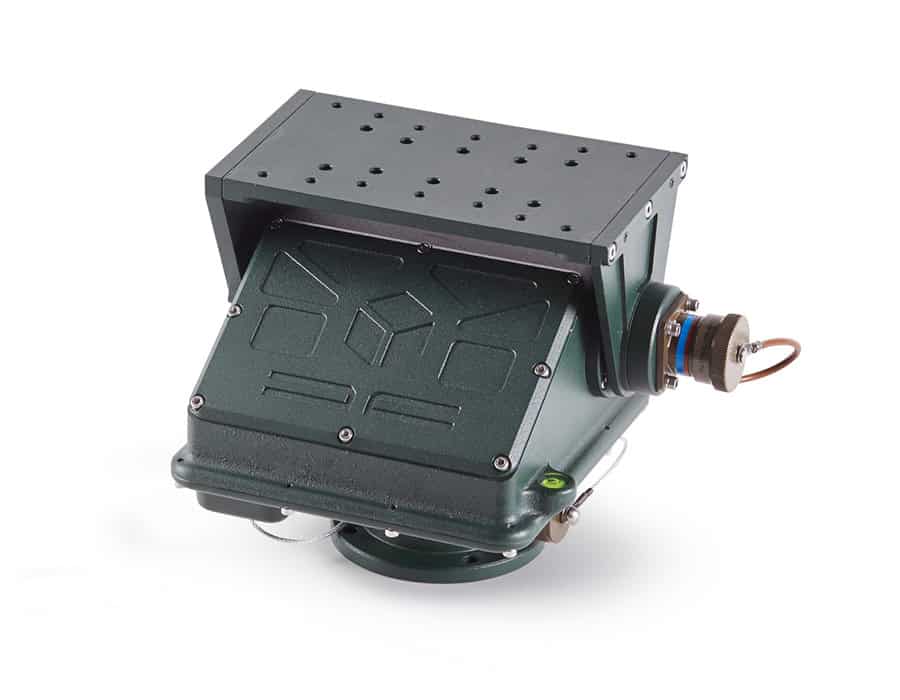

CRAWLER is a rugged pan-tilt system with small size, low weight, and high levels of torque and featuring self-locking capabilities. With an integrated IMU, it can carry out complex target tracking and acquisition.
The IP67-rated unit can be controlled via 10/100 Base-T Ethernet, RS-232, or RS485/422.
Specifications:
| Dimensions: | 171 x 206 x 160 mm |
| Weight: | 3.5 kg |
| Power: | 24 VDC 50 W max |
| Load Capacity: | 5 kg |
| Torque: | 8 Nm |
| Pan Axis: | Range: 360° continuous Speed: 0.001 – 30 °/s |
| Tilt Axis: | Range: -90 to +30° Speed: 0.001 – 30 °/s |
| Accuracy: | 0.05° |
