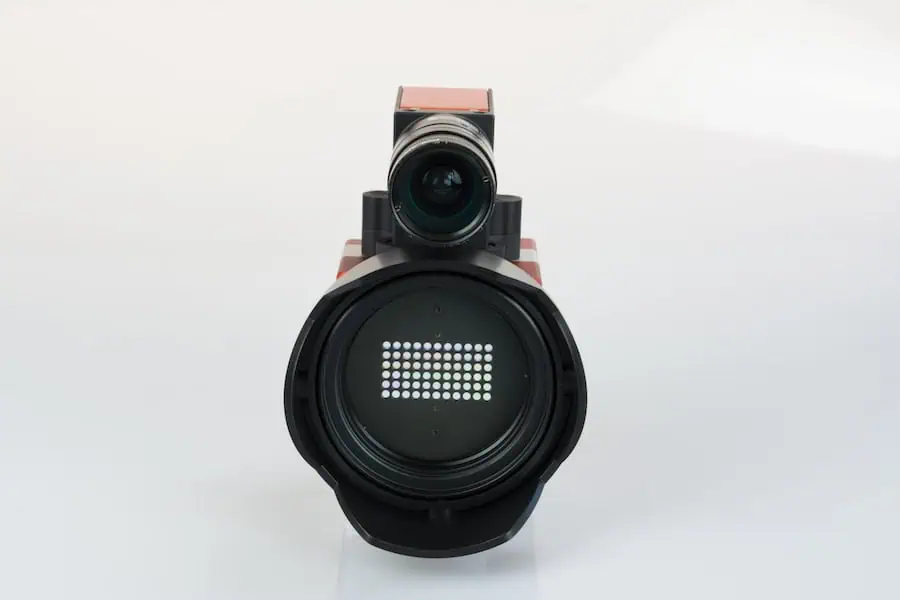

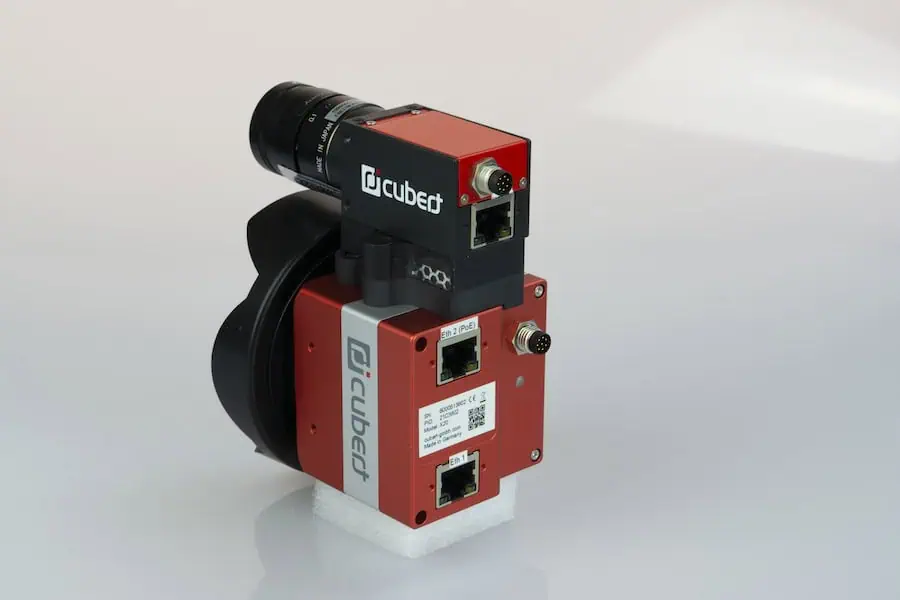

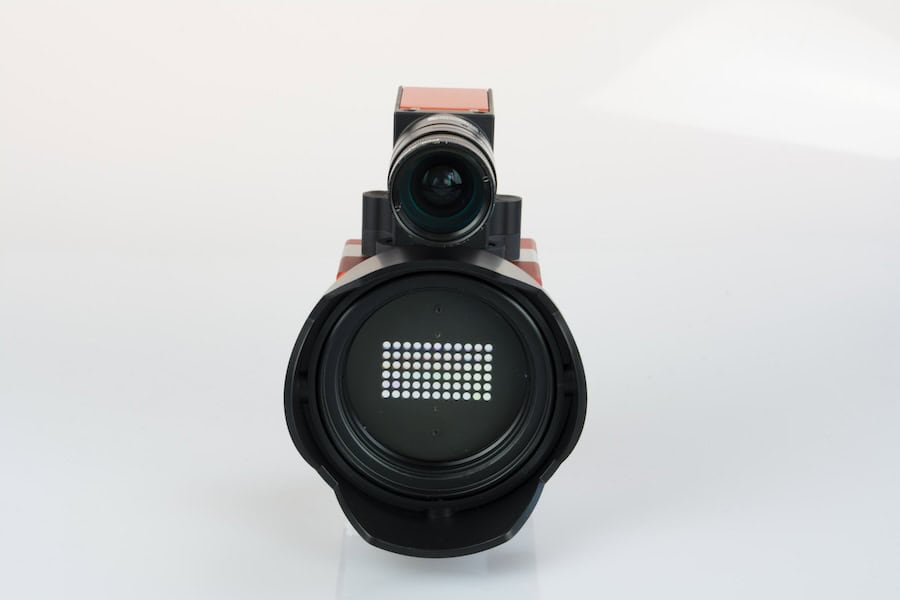

ULTRIS X20 Plus
Cubert’s ULTRIS X20 Plus enhances the functionality of the base X20 hyperspectral imager even further with the addition of a panchromatic camera sensor, boosting the resolution of the spectral camera to 1880 x 1880 for unmatched detail and improved spatial accuracy.
This enhanced dataset, in conjunction with image fusion, enables advanced vegetation analysis at the leaf level, allowing crop diseases and other issues to be detected in a timely manner.
Weighing less than 690g, the ULTRIS X20 Plus is ideal for integration into a wide range of drone platforms. A specially-designed UXG Gimbal is also available for easy mounting onto the DJI Matrice M300/350 RTK.
Specifications:
| Dimensions: | 86 x 121 x 105 mm |
| Weight: | 630g |
| Wavelength Range: | 350 – 1000 nm |
| Spatial Resolution: |
410 x 410 1886 x 1886 (panchromatic) |
| Spectral Bands: | 164 |
| FOV: | 35o |
| Max Frame Rate: | 3 Hz |
| Data Depth: | 12 bit |
