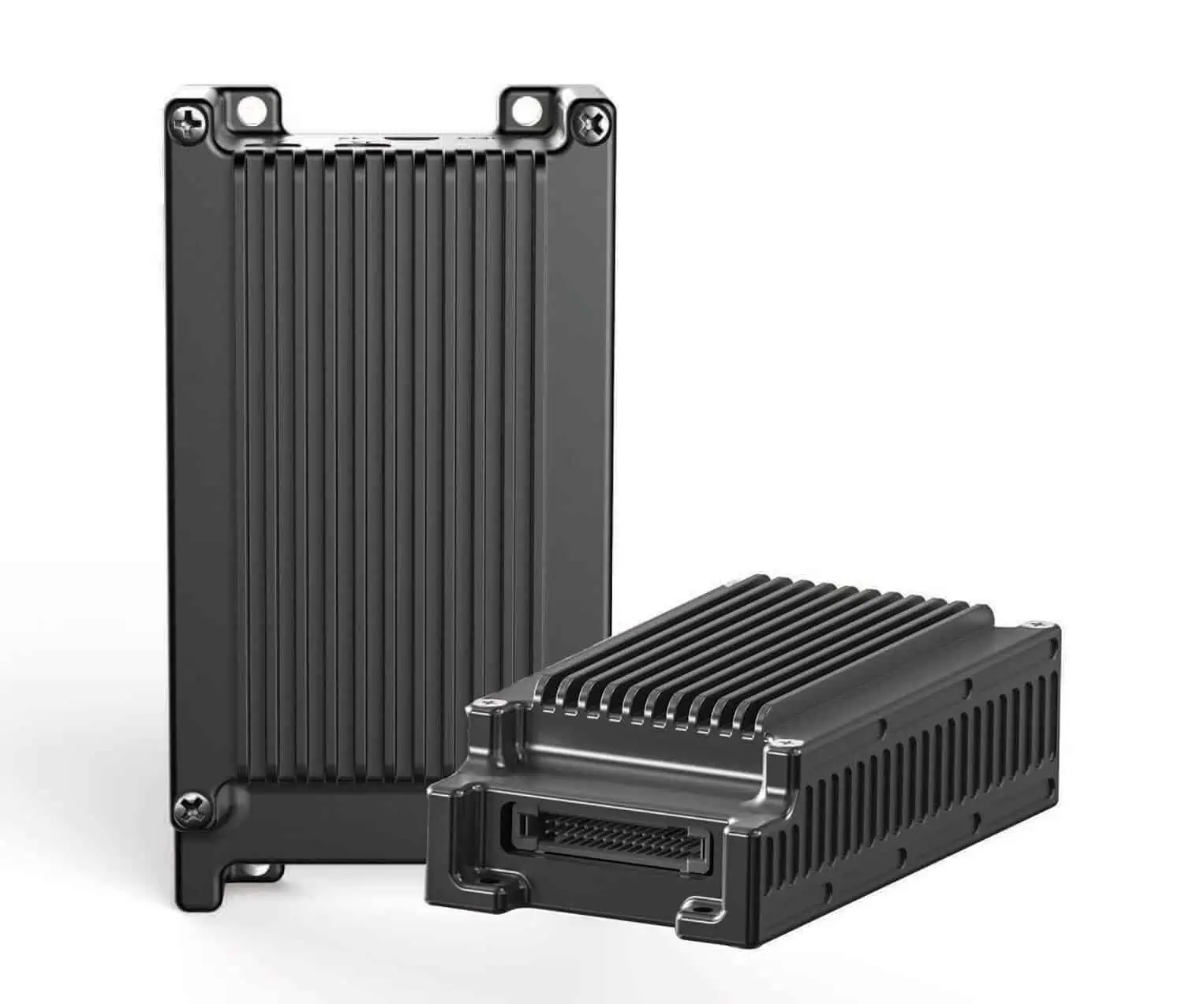

CNT-M2 Transceiver Module

The CNT-M2 is an advanced intelligent MANET SDR module that enables the creation of robust, self-forming and self-healing wireless mesh networks. Based on our state-of-the-art technology, it provides secure, highly reliable connectivity for a range of demanding applications, including real-time video transmission for mobile surveillance, NLOS (non-line-of-sight) communications, and command and control of drones and robotics.

CNT-M2 MANET Radio ModuleProviding secure IP networking with end-to-end encryption and seamless Layer 2 connectivity, the CNT-M2 module can be easily integrated into almost any platform or application. Up to 64 nodes can be operated on a single channel, with an unlimited number of hops and no master node required, and the entire network can be remotely controlled and monitored.

The lightweight, compact units are ideal for SWaP-C (Size, Weight,Power and Cost)-conscious UAVs and unmanned vehicles, and are available today inUHF, S-Band and C-Band frequency variants, but can also be modified upon customer request.

Specifications:

Dimensions: From 85 x 45 x 35mm
Weight: From 100-120g
Power Consumption: 10W
Data Rate: Up to 40 Mbps at 16 MHz channel (adaptive)
Transmission Power: 100mW – 1W
Channel Bandwidth: 2, 4, 8, 16 MHz (software configurable)
Frequency Band Options: UHF 340-470 MHz
UHF 800-1000 MHz
S-Band 2200 – 2400 MHz
C-Band 5600 – 5800 MHz
* from 100MHz to 6GHz available upon request
