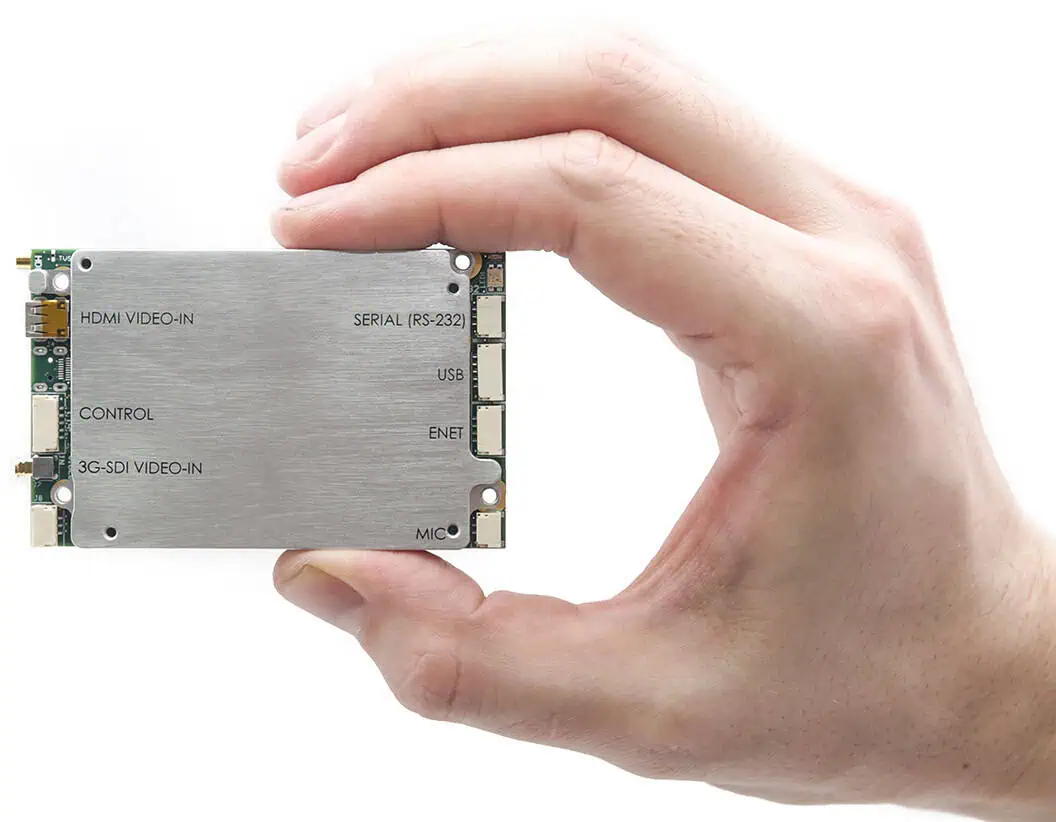

The Embedded Module allows you to connect your UAVs, UGVs, and sensors to Persistent Systems' Wave Relay® MANET, transforming them into networked assets that can deliver mission-critical video and data from anywhere. The ultra-low-SWaP module also allows you to replace your unmanned system’s separate communication, computing, and video subsystems with a single unified package, reducing space and weight requirements as well as costs and engineering time.
With up to 10W of power and 3x3 MIMO technology, the Embedded Module provides greater range, throughput and reliability than any other integration-ready radio on the market. The integrated computing capabilities allow you to run collision avoidance and swarming algorithms directly onboard and take advantage of the peer-to-peer Wave Relay® MANET for optimized coordination.
The Embedded Module features an Interchangeable Frequency Architecture that allows users to easily adapt to the requirements of different global regions or missions. It is pre-certified to MIL-STD-461 RE102 standards, eliminating the need to certify separate devices separately and ensuring faster time to market. The Embedded Module and Interchangeable Frequency Module can be connected together as a single unit or separated by a ribbon cable, allowing for versatile integration possibilities.
The Embedded Module is Blue UAS-certified.
Specifications:
| Dimensions: |
2.00 x 3.29 x 0.59 in. 5.08 x 8.35 x 1.49 cm |
| Weight: |
3.2 oz. 90.7 g |
| Input Voltage: | 8 – 28 VDC |
| Onboard Computer: |
1 GHz Quad Core ARM 2GB RAM 128GB of Flash Storage |
| Video Input: |
3G-SDI Composite HDMI |
| Bit Rates: | 500 Kbps – 20 Mbps |
| Frame Rates: |
6/10/15/24/29.97/30/59.94/60 fps 59.94/60 fps not available at 1080p |
| Resolutions: |
240p SD 480 SD 576 PAL 720p 1080p |
| Crypto: |
CTR-AES-256 Encryption SHA-256 HMAC |
| MANET: |
Unlimited hops Unlimited nodes Max distance between nodes 130 miles |
