Cognitive Wireless MANET Mesh SDRs for Tactical, Mission-Critical Datalinks

Creomagic Ltd Visit Website
High-speed wireless connectivity solutions for real-time mission-critical applications

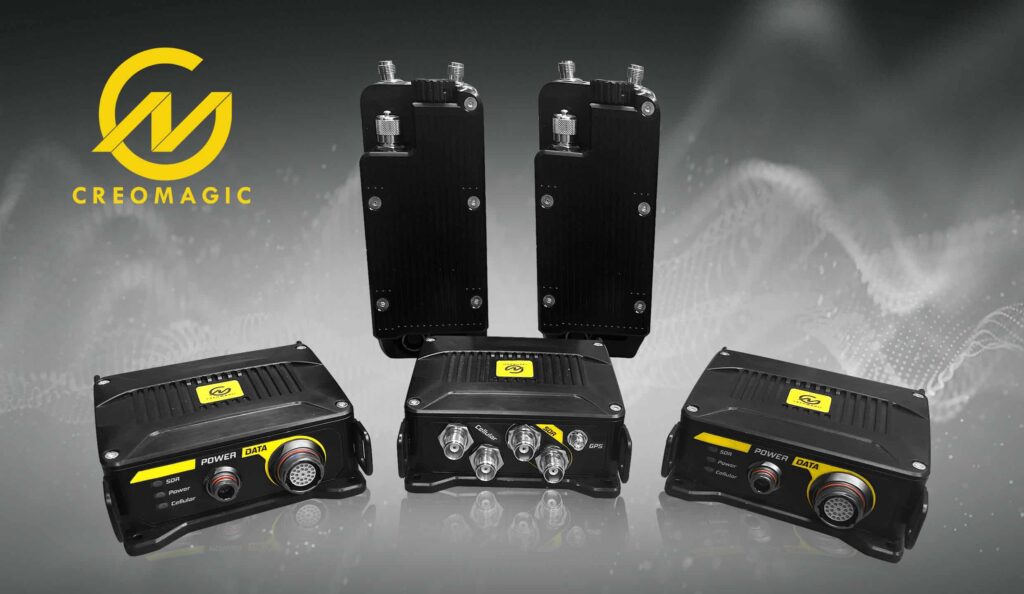

Creomagic is a leading developer of high-speed cognitive wireless mesh connectivity solutions for real-time mission-critical applications. Providing high-reliability coverage without the need for permanent infrastructure or a centralized point of failure, our MANET (Mobile Ad-Hoc Network) radio systems are ideal for use by quick responders and deployed forces with a variety of configurations, such as personal radio, vehicle, and compact for incorporation into UAVs (unmanned aerial vehicles), UGVs (unmanned ground vehicles) and other robotic platforms.

MANET Mesh Technology

Our unique intelligent technology allows secure, stable and reliable transmission of real-time video, voice and data over constantly changing cognitive MANETs and wireless mesh network topologies. Using a powerful combination of routing, distributed spectrum sensing for cognitive radio and decentralized fog computing, our solution provides scalable peer-to-peer connectivity via multiple hops for high-speed communications even in challenging, interference-filled, dense urban environments.

MANET Technology

The state-of-the-art features of our technology include:

Self-Forming and Self-Healing Capabilities – a continually adapting network allows nodes to join or leave at any time, with a unique decentralized architecture that provides continuity even when one or more nodes are lost

Link Adaptation – sophisticated software-defined radio (SDR) technology defines adaptive transmission parameters for each node, in order to maximize link data rate, robustness and improve user experience

Transparent IP Networking – our network appears as a single Layer 2 networking switch, allowing other IP-based devices such as cameras and computers to be connected to MANET radios with seamless wireless mobility

Adaptive Scalable Routing – proprietary routing algorithms select the optimal communication path, minimizing wireless consumption and maximizing end-end throughput during spectrum sensing

Multicast Traffic – adaptive algorithms maximize network bandwidth efficiency and end-to-end throughput without global network overhead, continuously shifting the routing path to provide multicast transmission to only those devices that need a particular stream.

CNT-M2 MANET Transceiver Module

Wireless mesh connectivity for mission-critical applications

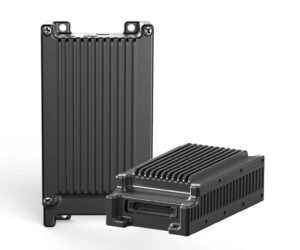

CNT-M2 wireless connectivity Radio Module

The CNT-M2 is an advanced intelligent MANET SDR module that enables the creation of robust, self-forming and self-healing wireless mesh networks. Based on our state-of-the-art technology, it provides secure, highly reliable connectivity for a range of demanding applications, including real-time video transmission for mobile surveillance, NLOS (non-line-of-sight) communications, and command and control of drones and robotics.

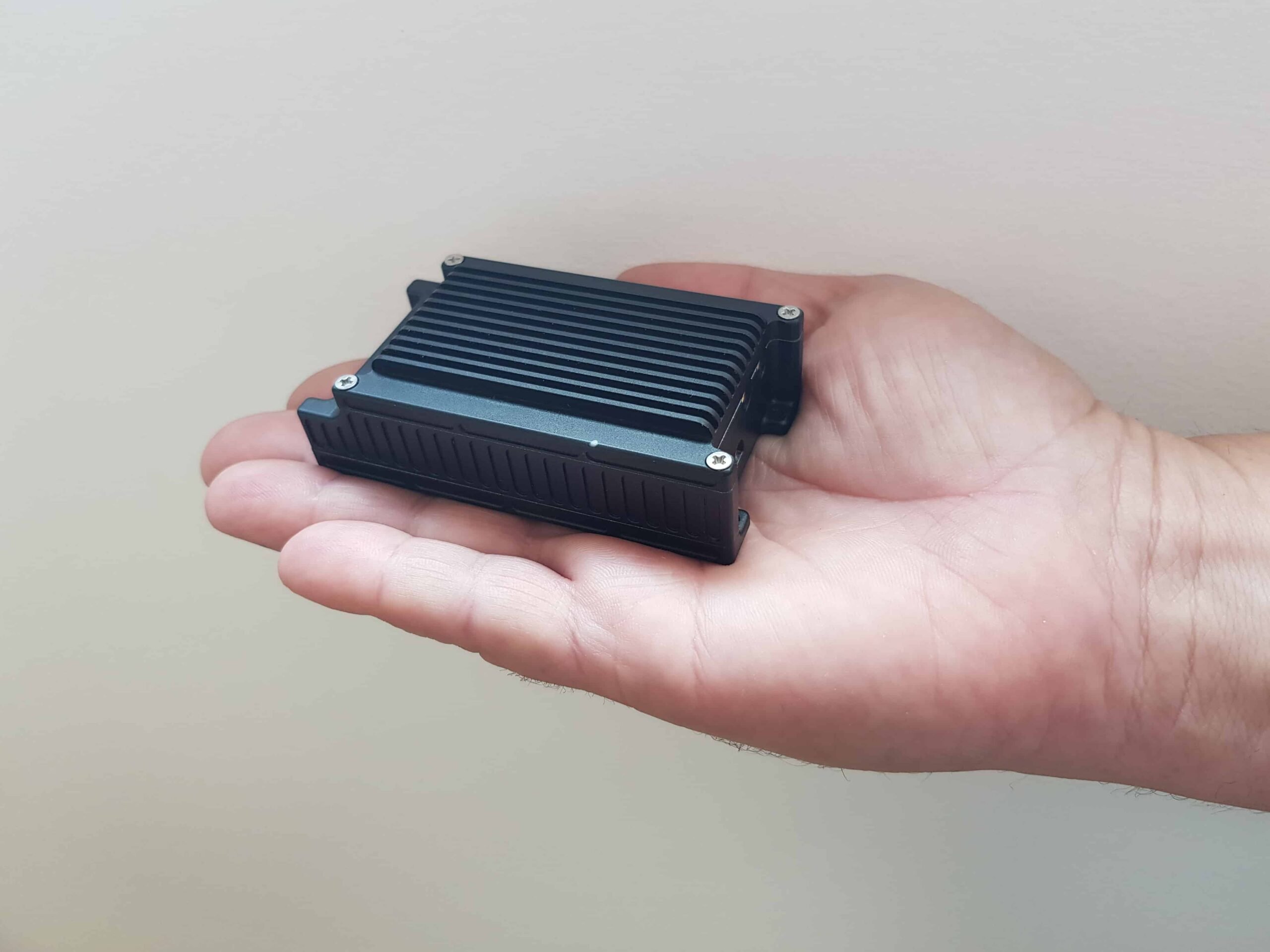

CNT-M2 MANET Radio ModuleProviding secure IP networking with end-to-end encryption and seamless Layer 2 connectivity, the CNT-M2 radio module can be easily integrated into almost any platform or application. Up to 64 nodes can be operated on a single channel, with an unlimited number of hops and no master node required, and the entire network can be remotely controlled and monitored.

The lightweight, compact units are ideal for SWaP-C (Size, Weight,Power and Cost)-conscious UAVs and unmanned vehicles, and are available today inUHF, S-Band and C-Band frequency variants, but  can also be modified upon customer request.

Specifications:

Dimensions:From 85 x 45 x 35mm
Weight:From 100-120g
Power Consumption:10W
Data Rate: Up to 40 Mbps at 16 MHz channel (adaptive)
Transmission Power:100mW – 1W
Channel Bandwidth:2, 4, 8, 16 MHz (software configurable)
Frequency Band Options:UHF 340-470 MHz
UHF 800-1000 MHz
S-Band 2200 – 2400 MHz
C-Band 5600 – 5800 MHz
* from 100MHz to 6GHz available upon request

CreoHub MANET Software-Defined Radio

Scalable, self-healing radio for surveillance and intelligent applications

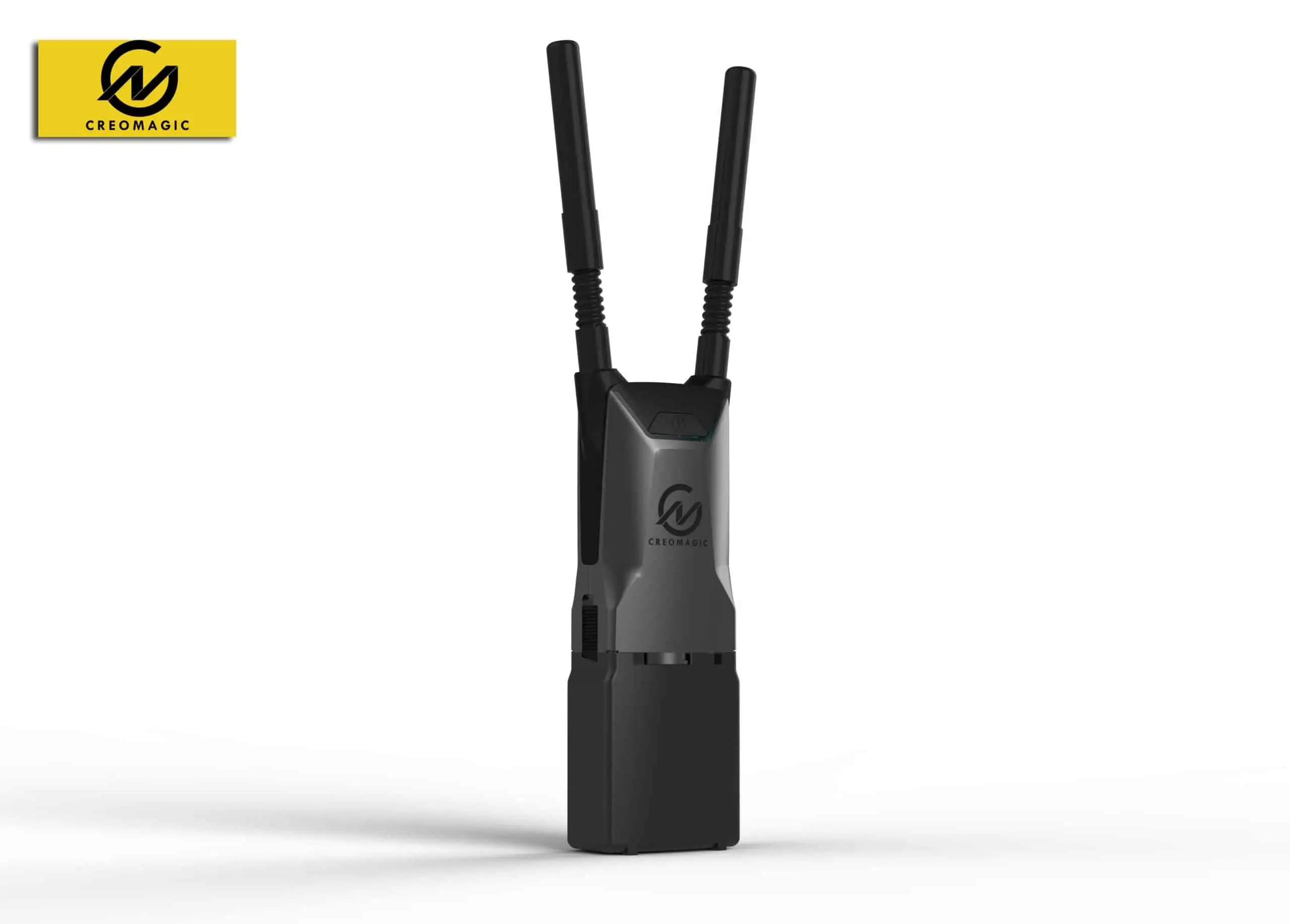

CreoHub MANET Software-Defined Radio

The CreoHub is a next-generation full turnkey MANET SDR communication solution, that provides high-security wireless mesh connectivity for tactical applications such as search and rescue, law enforcement, disaster management and battlefield deployment. With decentralized management and peer-to-peer networking, the CreoHub is ideal for mission-critical communications in situations with unreliable or no existing infrastructure.

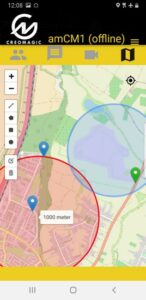

CreoApp

Secured by advanced end-to-end powerful encryption, the CreoHub enables the transmission and sharing of real-time video, voice, text message and location data, providing a Common Operating Picture (COP) and total team awareness for tactical applications.

The Android-based CreoApp for tablets and smartphones provides intuitive and convenient access to all of CreoHub’s features and functionality, and allows video streaming from any external device.

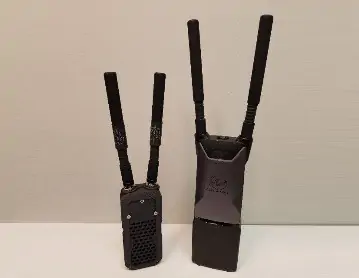

The CreoHub is offered in three different versions:

  • CreoHub A – our Basic configuration
  • CreoHub L – a new Lightweight configuration due for launch in the near future
  • CreoHub V – a new ruggedized Vehicle and marinized Vessel configuration due for launch by the end of 2020.

Available frequency options include UHF, S-Band and C-band, but can be modified upon customer request.

CreoHub A Specifications:

Weight:< 850g
Battery Life:Up to 12 hours (rechargeable)
Data Rate:Configurable, up to 40 Mbps

Applications:

<
