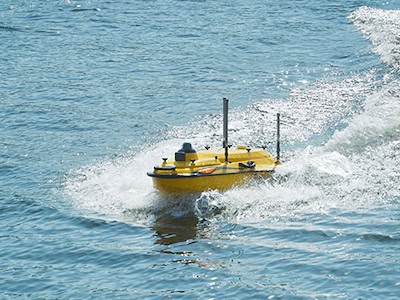

The APACHE 4 Pro is a versatile Unmanned Surface Vehicle (USV) designed to perform a broad range of hydrological and bathymetric survey operations. Constructed from high-strength, high-modulus carbon fiber using HPT one-piece molding technology, the hull achieves a tensile strength of 10 MPa, enhancing impact resistance and operational reliability in challenging aquatic environments. The vessel supports a payload of up to 50 kg, allowing integration with ADCPs, multibeam echo sounders, side-scan sonar, and water quality sensors for complete end-to-end hydrographic solutions.
Its advanced hull design incorporates titanium alloy mesh covers and hybrid pressure conversion technology to minimize entanglement risk from aquatic vegetation, while dual-motor propulsion ensures consistent maneuverability. Equipped with full GNSS + IMU positioning, a high-sensitivity 200 kHz single-beam echo sounder, and an optional CHCNAV HQ-400 multibeam system, the APACHE 4 Pro delivers accurate, high-resolution depth and flow data. The Android-based EasySail controller provides intuitive mission planning, live video monitoring, and data post-processing via 4G and 2.4 GHz connectivity, ensuring precise and efficient hydrographic survey execution.
Specifications:
| Dimensions: | 1200 mm × 750 mm × 400 mm |
| Weight: | 36 kg (with instrument and batteries) |
| Max Payload: | 50 kg |
| Draft: | 8.6 cm (unladen) |
| Max Speed: | 6.5 m/s |
| Single-Point Positioning Accuracy: | Horizontal: 1.5 m Vertical: 2.5 m |
| DGNSS Positioning Accuracy: | Horizontal: 0.4 m + 1 ppm Vertical: 0.8 m + 1 ppm |
| RTK Positioning Accuracy: | Horizontal: ±8 mm + 1 ppm Vertical: ±15 mm + 1 ppm |
| Heading Accuracy: | 0.1° @ 1 m baseline |
