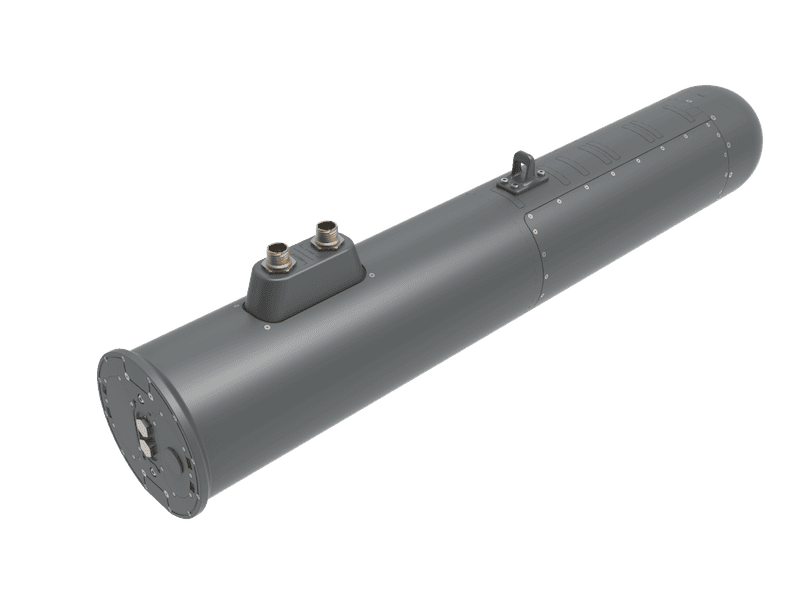

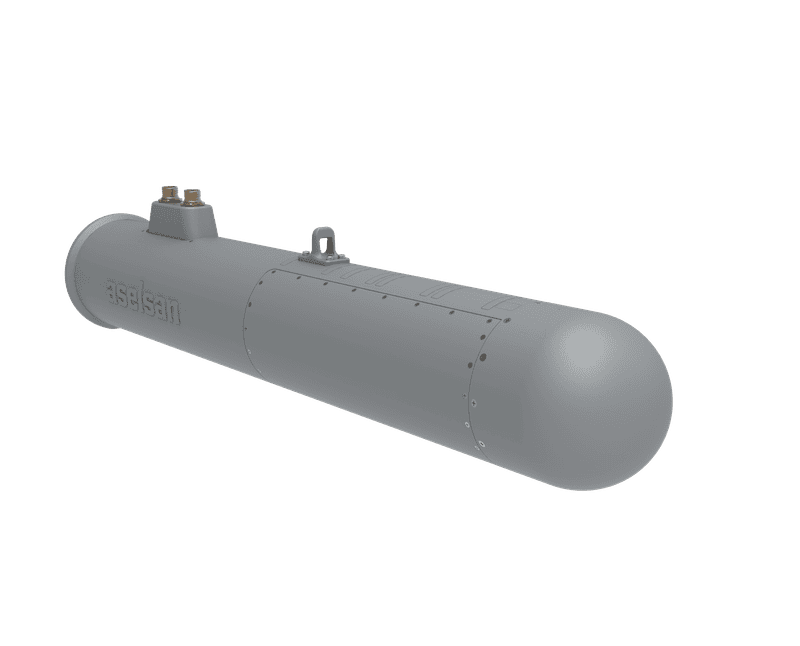

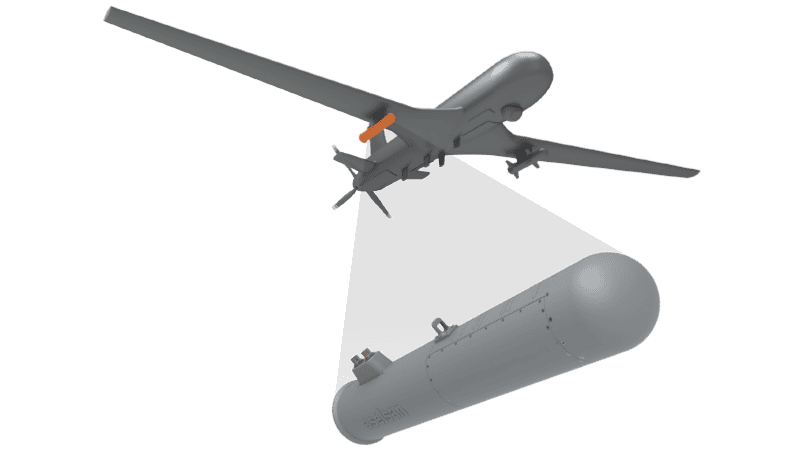

FULMAR 200-A is a lightweight synthetic aperture radar pod system developed for surveillance and reconnaissance missions by unmanned aircraft. The compact pod uses an AESA antenna with agile electronic beam scanning, enabling radar imaging from a flexible under-wing or under-body payload configuration.
The system can generate high-resolution stripmap and spotlight SAR imagery in all-weather conditions. Its podded format allows rapid integration with air platforms and makes it possible to operate alongside EO/IR camera payloads for complementary sensing.
FULMAR 200-A offers low power consumption, built-in test functionality, STANAG 7023-compatible imagery and operation at altitudes of up to 30,000 feet, providing UAVs with a compact radar option for beyond-visual surveillance and reconnaissance.
Specifications:
| Operating frequency | X-band |
| SAR imaging range | 40 km |
| Weight | <20 kg |
| Input power | 350 W at 28 VDC |
| Image compatibility | STANAG 7023 |
| Operating altitude | Up to 30,000 ft |

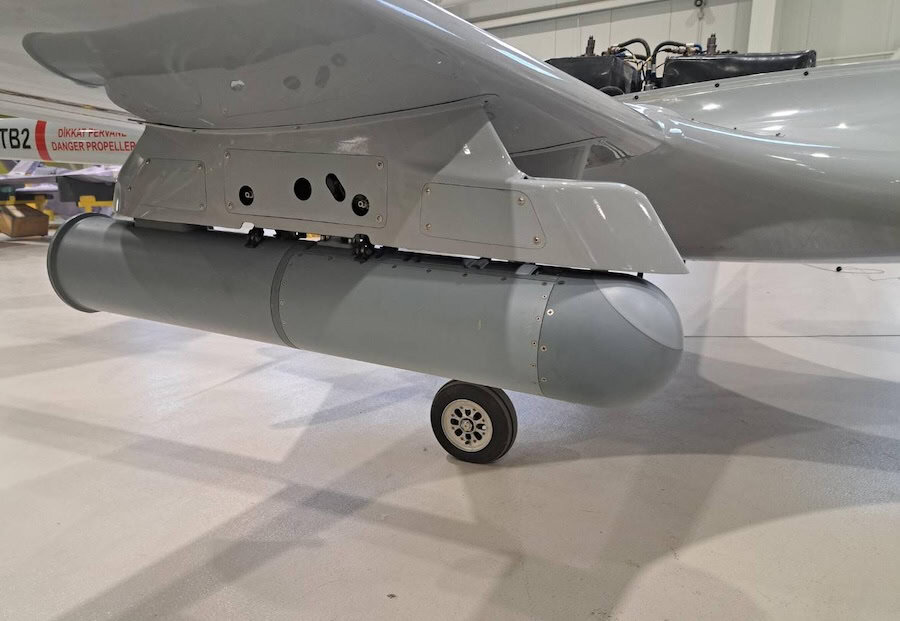

| Installation | Wing or body installation options |
