AURA 200-G is a multifunction surveillance radar designed to detect, track and automatically classify mini and micro UAVs, helicopters, aircraft and weapon targets. The radar operates in all-weather conditions during day or night, providing persistent awareness for base protection and counter-UAS missions.

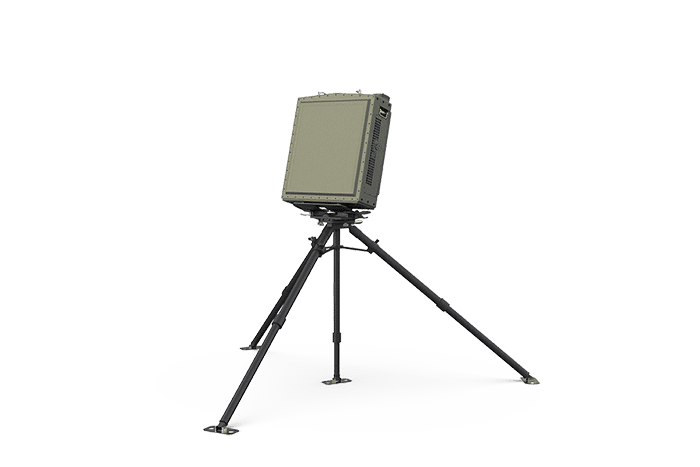

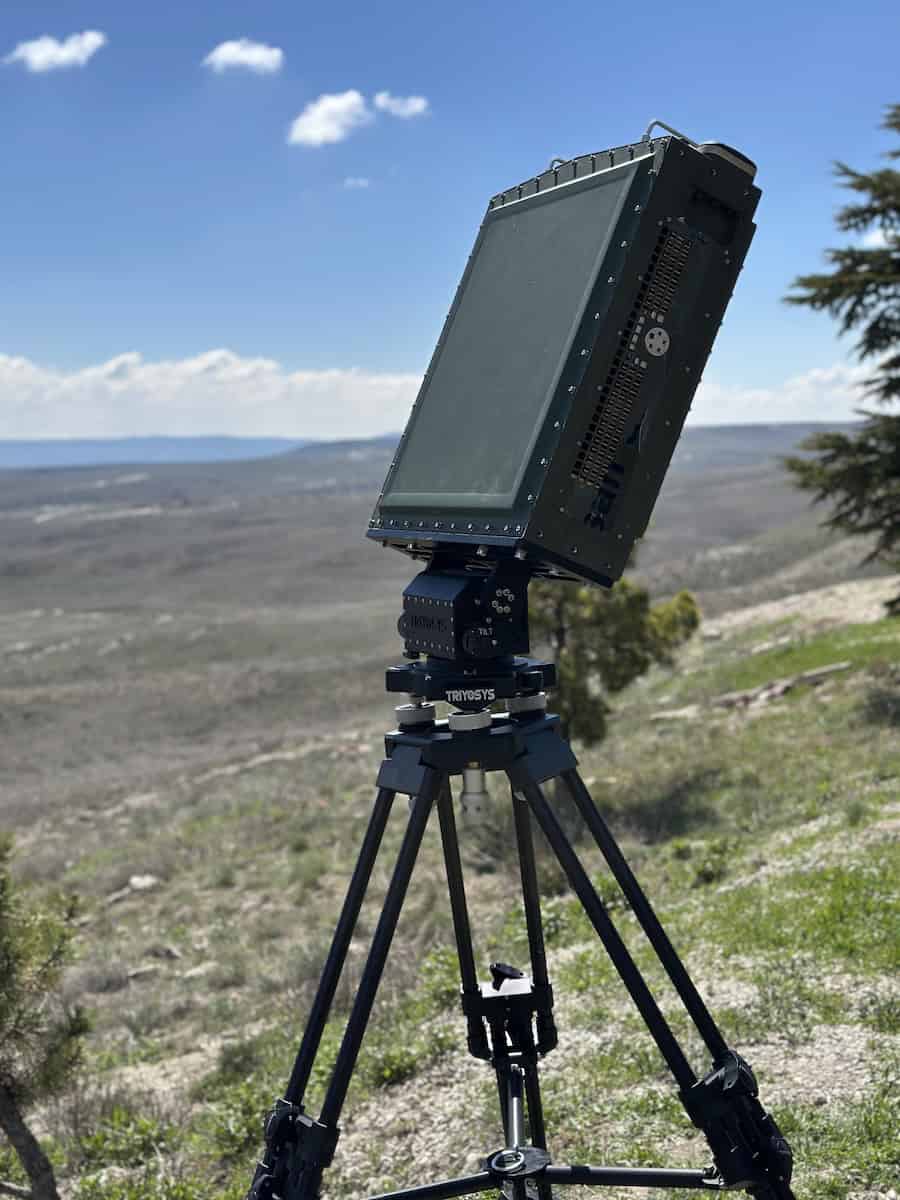

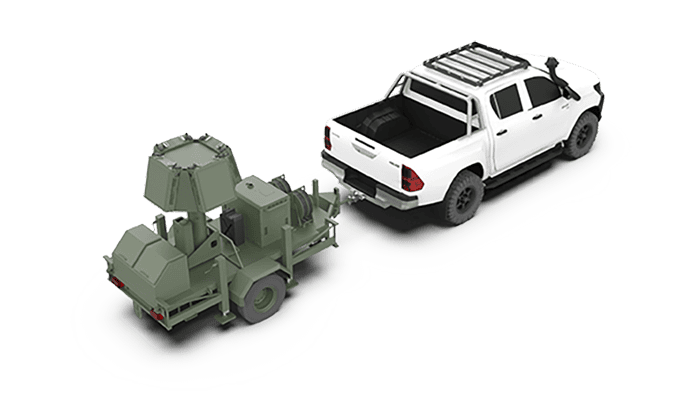

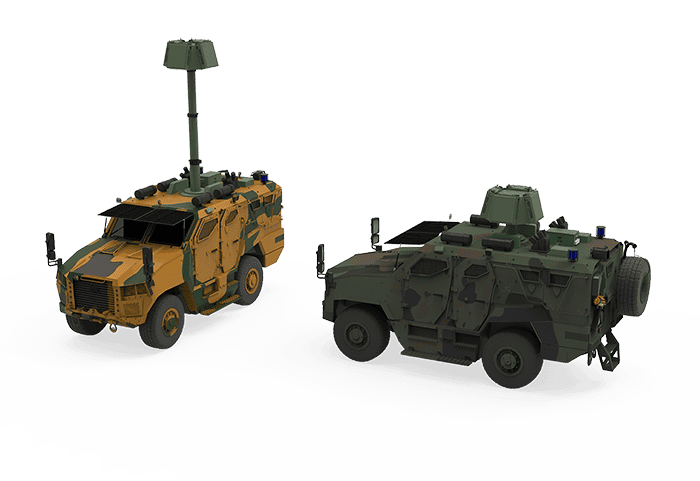

The AESA radar can be used in a tripod-mounted configuration for standalone field deployment, installed on a tower or mast to increase line of sight, or fitted to vehicles for mobile operations. It can be controlled through a dedicated operator console or integrated with existing command and control systems.
AURA 200-G can also detect ballistic munitions and calculate impact or landing locations. The system can be integrated with electro-optical sensors and jammers, and a four-antenna configuration can provide continuous 360-degree scanning with data fusion.
Specifications:
| Radar architecture | AESA antenna |
| Detection and tracking | 3D multiple simultaneous detection and tracking |
| Instrumented range | >25 km |
| Single-antenna coverage | 90 degrees |
| Four-antenna suite | 360-degree continuous scanning with data fusion |
| Interfaces | TCP/IP Ethernet |
| Standards | MIL-STD-810G and MIL-STD-461F |
