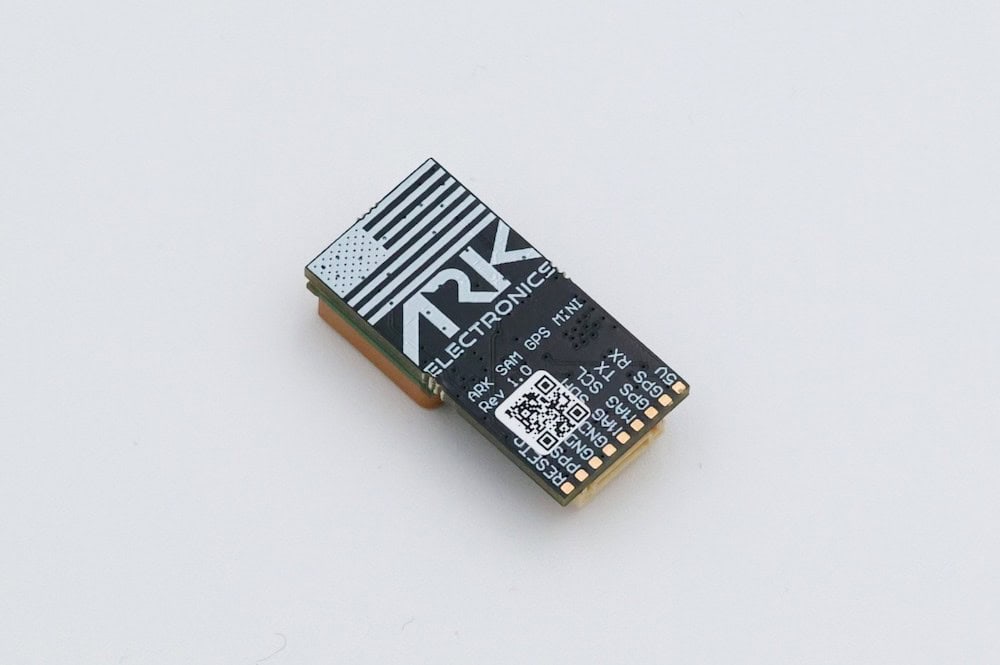

The ARK SAM GPS MINI is a compact, NDAA-compliant navigation solution combining the u-blox SAM-M10Q GNSS receiver with the ST IIS2MDC industrial magnetometer. Manufactured in the USA, the unit delivers efficient multi-constellation positioning performance with advanced spoofing and jamming detection. Operating with less than 38 mW power consumption, it supports four concurrent GNSS systems to maximize satellite availability and positioning accuracy in real time.
This lightweight 8 g module features a small footprint of 3.225 × 1.6 × 0.8 cm and includes a Pixhawk standard 6-pin JST GH connector for streamlined integration over UART or I2C interfaces. Powered at 5V with a low average draw of 15mA, it includes an LED indicator for GPS fix status. Not intended for military applications.
Specifications:
| Weight: | 8 g |
| Dimensions: | 3.225 × 1.6 × 0.8 cm |
| Power: |
5V 15mA Average 20mA Max |
