Parasafe CA1201

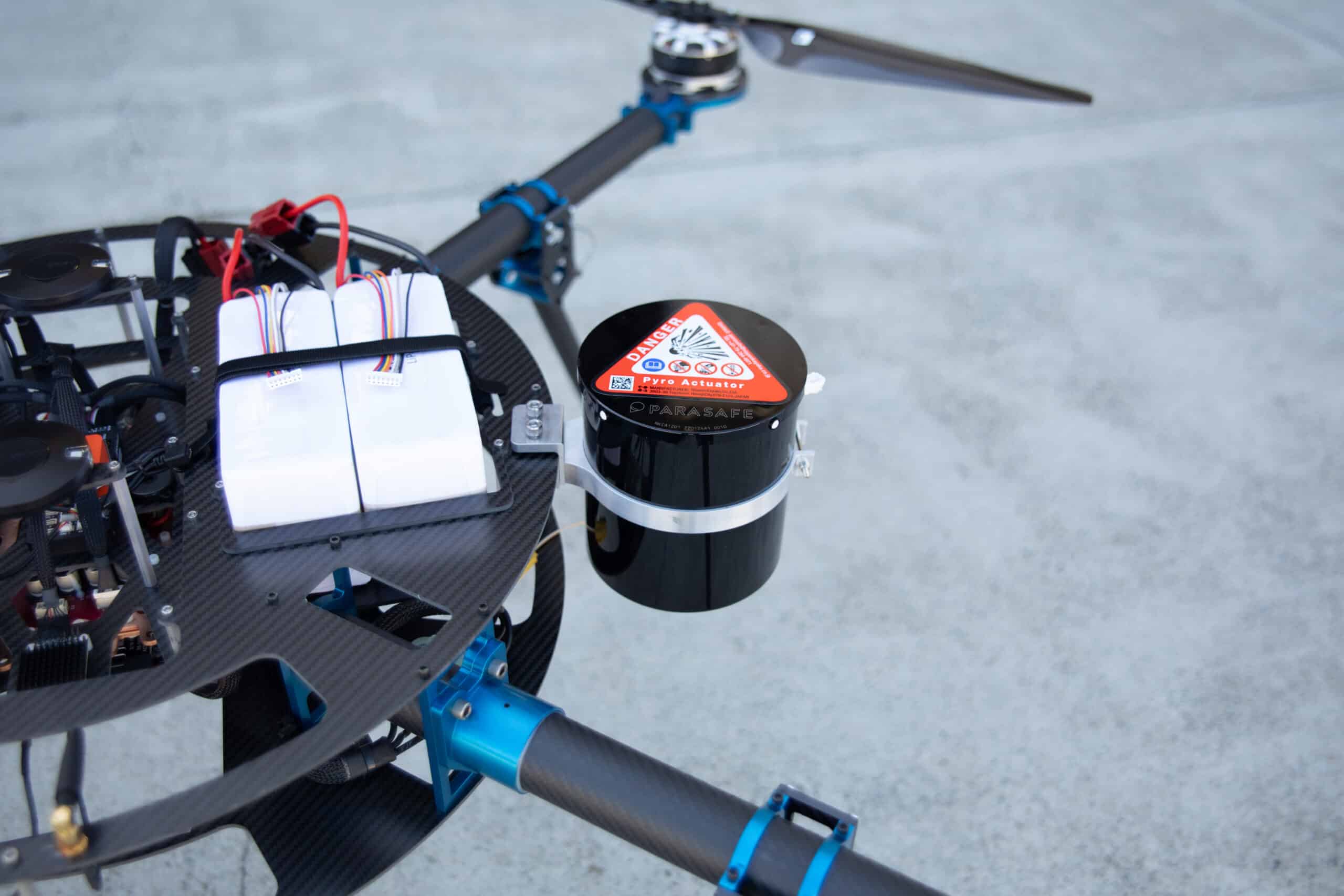

ASW's PARASAFE emergency drone parachute is designed for unmanned aircraft with MTOWs of up to 25kg (55 lbs). Weighing just 900 grams, the compact system can be easily integrated into a wide range of commercial and industrial drones including fixed-wing, multirotor and helicopter UAV platforms, guaranteeing unparalleled safety and protection both for your expensive equipment and for people in the vicinity of your operations.

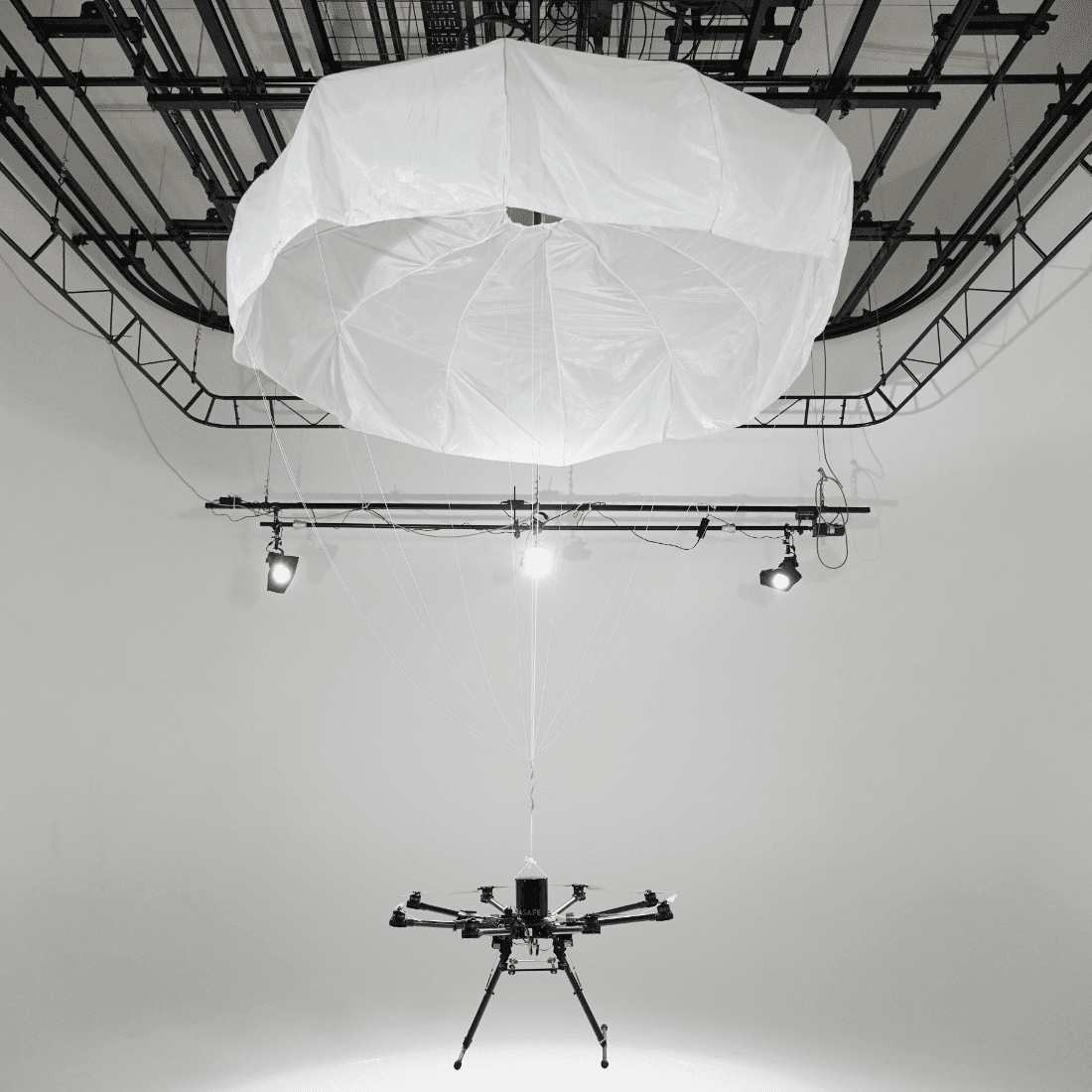

PARASAFE has been designed and tested in accordance with ASTM standards, and features proprietary pyrotechnic initiation technology that ensures rapid and reliable deployment and low-speed descent. It is IP54-rated for all-weather performance.
Specifications:
| Dimensions (D x H) | 130 x 145 mm (5 x 6”) |
| Weight | 900 g |
| Max Supportable Weight | 25 kg (55 lbs) |
| Parachute Area | 11 m2 (118 ft2) |
| Descent Rate | 6 m/s at 25 kg |
Trigger Systems:
| Automatic | Manual | |
| Dimensions (W x D x H) | 100 x 62 x 21 mm | 84 x 60 x 37 |
| Weight | 110g | 120g |
| Operating Temperatures | 0 - 40oC | 0 - 40oC |
| IP Rating | IP53 | IP54 |
