900W Power Distribution Unit

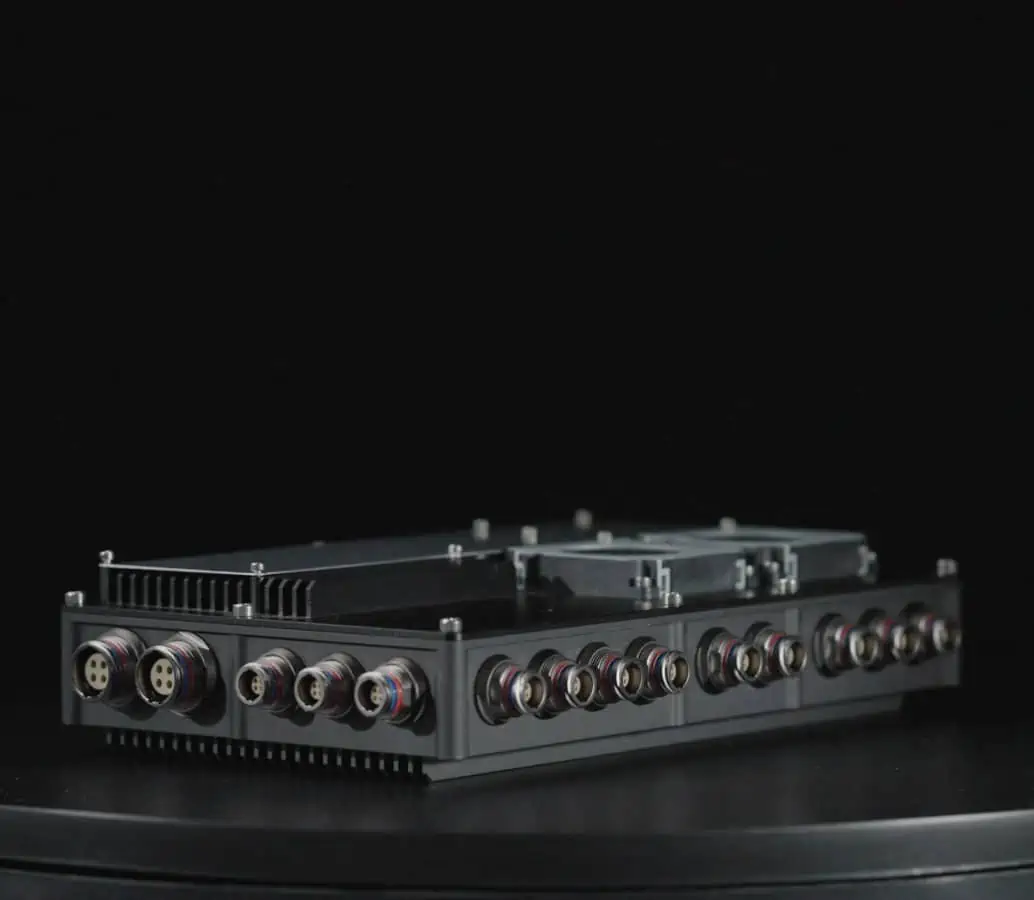

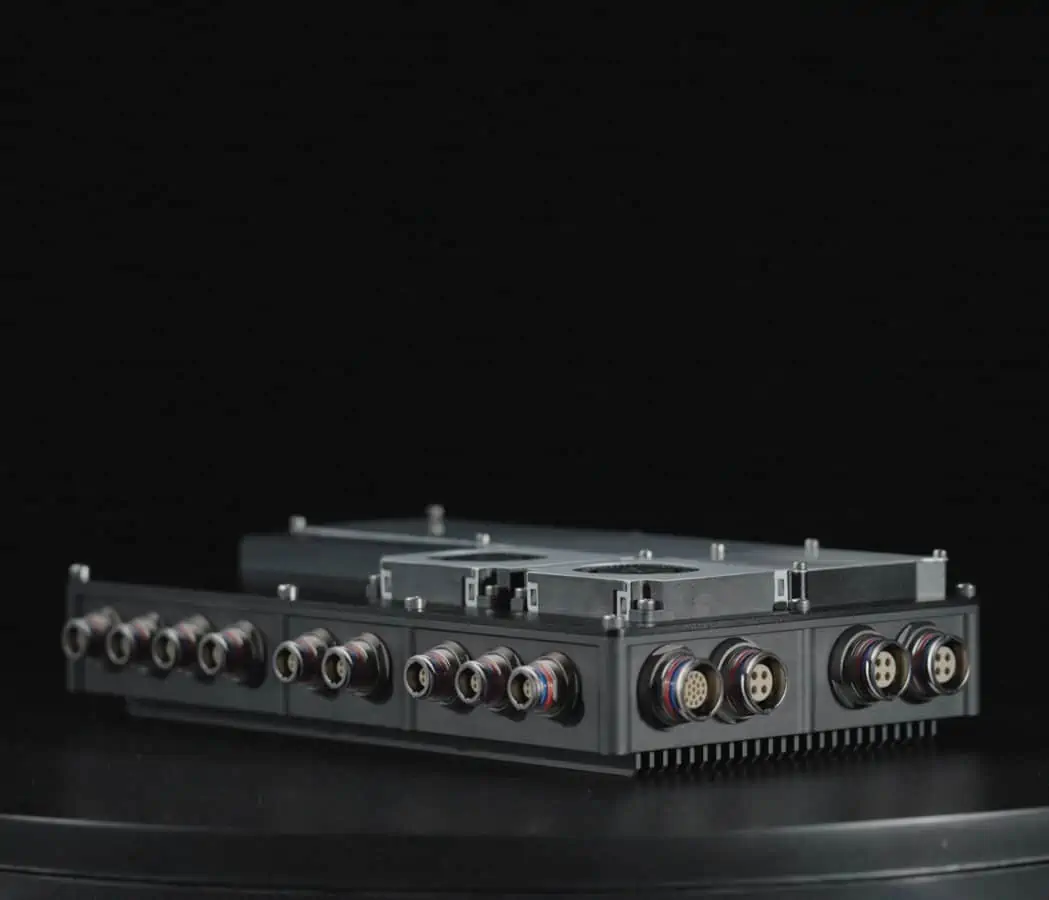

The 900W Power Distribution Unit (PDU) takes in unregulated battery voltage from 24 to 60 VDC and delivers regulated outputs suitable for distribution within small to medium-sized UAVs.

The PDU provides dual battery inputs with automatic lossless switchover between the two, and an umbilical input ensures that batteries are not depleted during pre-flight checks prior to take-off.

Three main independent and user-configurable power outputs are provided for avionics, servos and payloads, with avionics and servo supplies fully duplicated for redundancy and maximum reliability. A low-power redundant 5V output is also provided.

The system can be monitored via RS232 serial or CAN, and provides comprehensive voltage, current and internal temperature data. It is available in either a regular slimline or rugged IP66-rated enclosure, and both can be customized to suit requirements for types and number of connectors.

Specifications:

Dimensions Dependent on connectors; example 235x140x49mm
Weight 1.34 kg
Supported Battery Types LiPo: 10 – 14S
LiS: 15 – 20S
LiFe: 10 – 14S
Battery Inputs 24 to 55 VDC (main)
28 to 60 VDC (umbilical)
Power Outputs Avionics: 12 – 28V
Servo: 6 – 28V
Payload: 12 – 28V
Low-power: +5V
Max Altitude 10,000m
