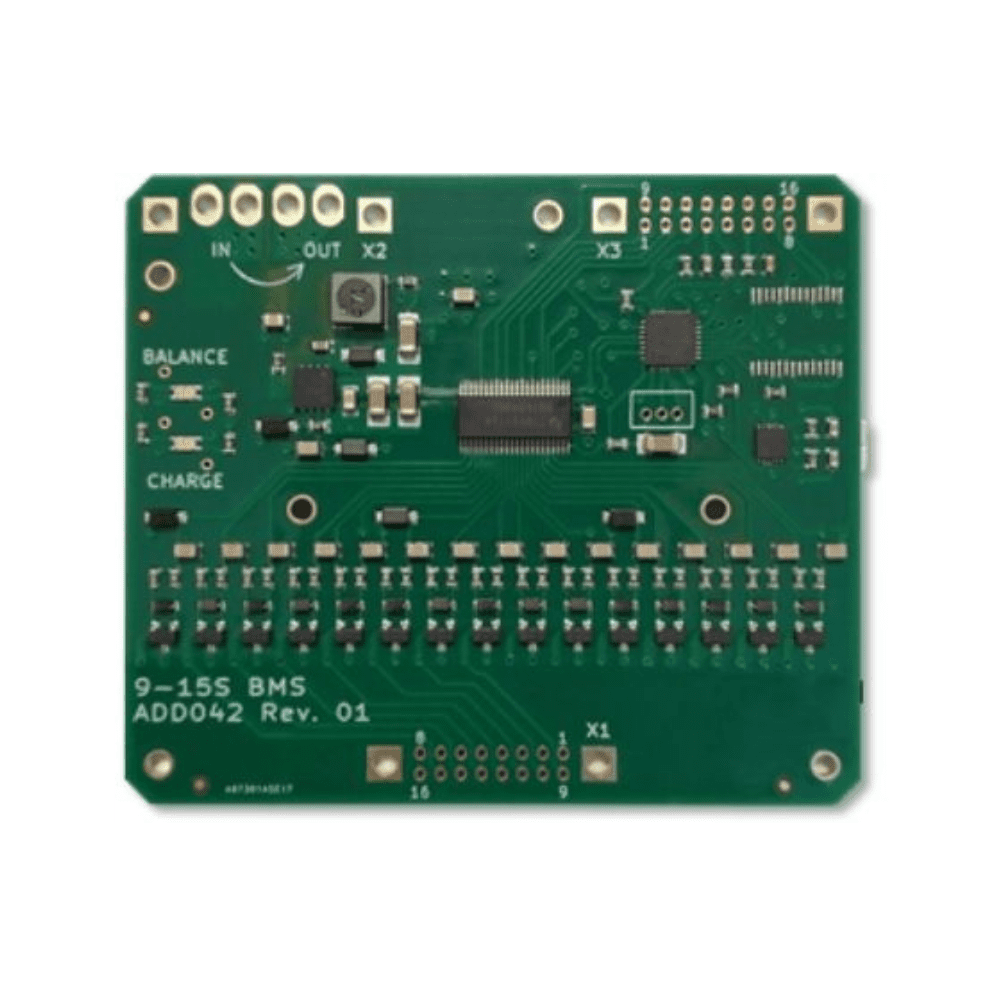

15S Battery Cell Monitor & Balancer

The 15S Battery Cell Monitor & Balancer transforms ordinary batteries into smart self-balancing power sources. It ensures optimal performance, improved system reliability and prolonged lifespans for multi-cell batteries, and can be seamlessly interfaced with the VISIONAIRtronics 1700W Generator Control Unit.

The board-level instrument supports 9 to 15S batteries with LiPo, LiS or LiFe chemistries. Comprehensive data, including internal state, voltages, currents and temperatures, is sent to the vehicle's CAN bus, and two front-panel LEDs provide "go/no go" indication of battery balance and charge.

Specifications:

Dimensions 77 x 75 x 12.7 mm
Supported Batteries LiPo, LiS, LiFe
9S-15S
Max Battery Voltage 65 VDC
Max Power Dissipation 6W
Max Balancing Current 3 x 0.45A
Voltage Measurement Accuracy ±10 mV typical
Max Altitude 10,000m
