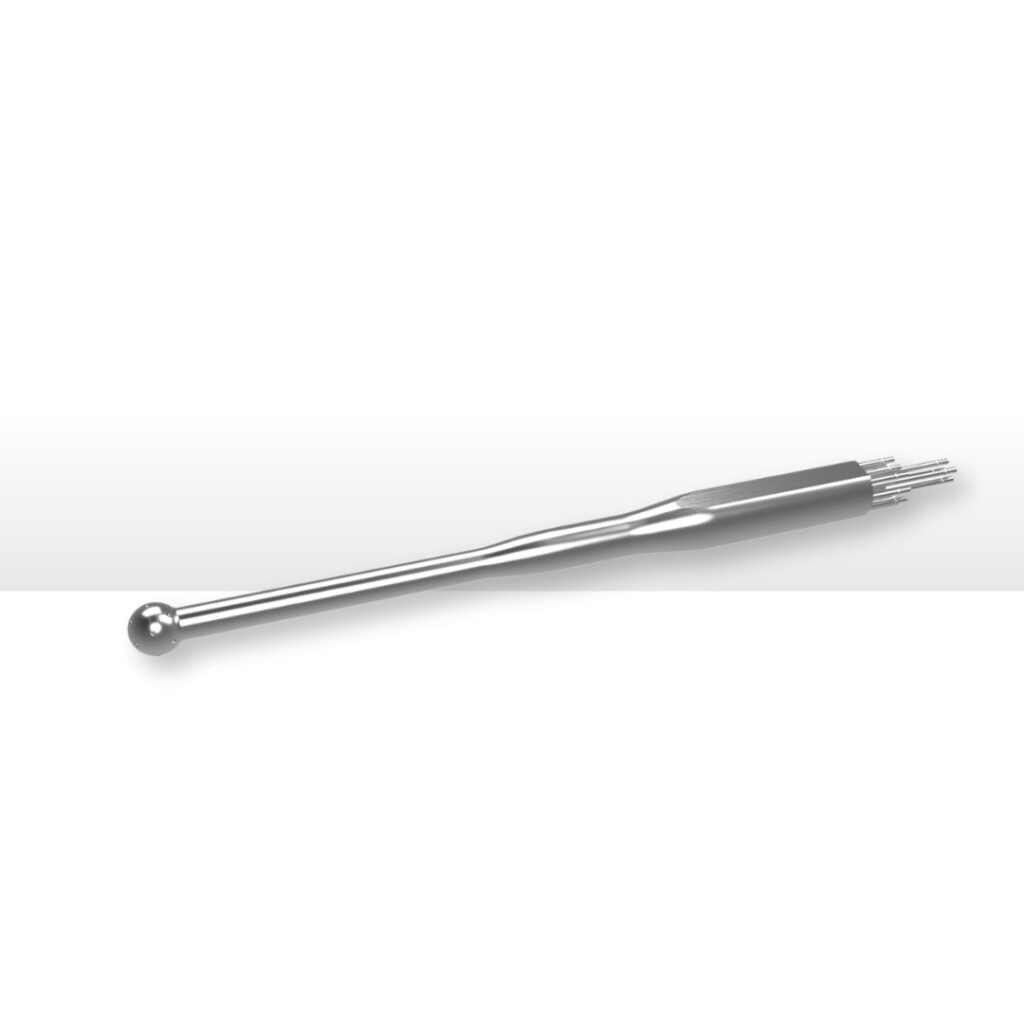

Vectoflow's 14-hole Omniprobes are designed for applications where angle of flow is unknown or where backflow is to be expected. They can measure angles of attack up to ±160°, as well as a range of other aerodynamic and thermodynamic parameters including speed and static and total pressure.
Omniprobes are available with straight or L-shaped geometries, and can be manufactured from a variety of materials including stainless steel, titanium, Inconel, plastic, aluminum and more. All probes are expertly calibrated in Vectoflow's purpose-built wind tunnels, and calibrated data is provided to the customer along with a binary file that can be used to evaluate the measurement data with our post-processing libraries or VectoVis Pro software.
Specifications:
| Max Length: |
280 mm (single-part designs) Greater lengths possible with multi-part designs |

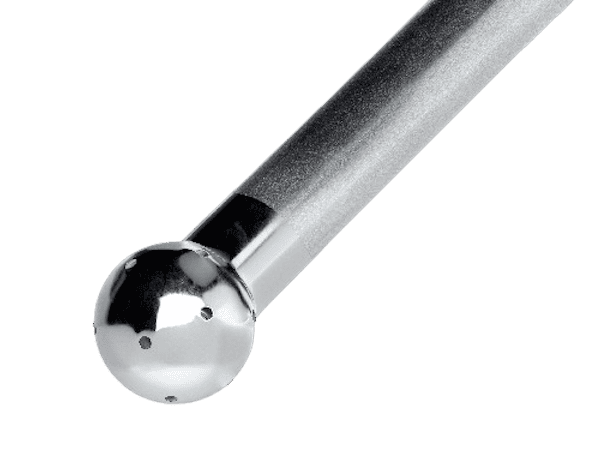

| Tip Geometries: | Spherical |
| Minimum Tip Diameter: | >5mm |
| Temperature Range: | Up to 800oC (higher upon request) |
| Angular Range: | ± 160° |
| Angular Accuracy: | < ±1° |
| Velocity Range: | 3 m/s to Mach 0.95 |
| Velocity Accuracy: | < ±1 m/s |
