Vanguard 400
Features & Benefits
Specifications

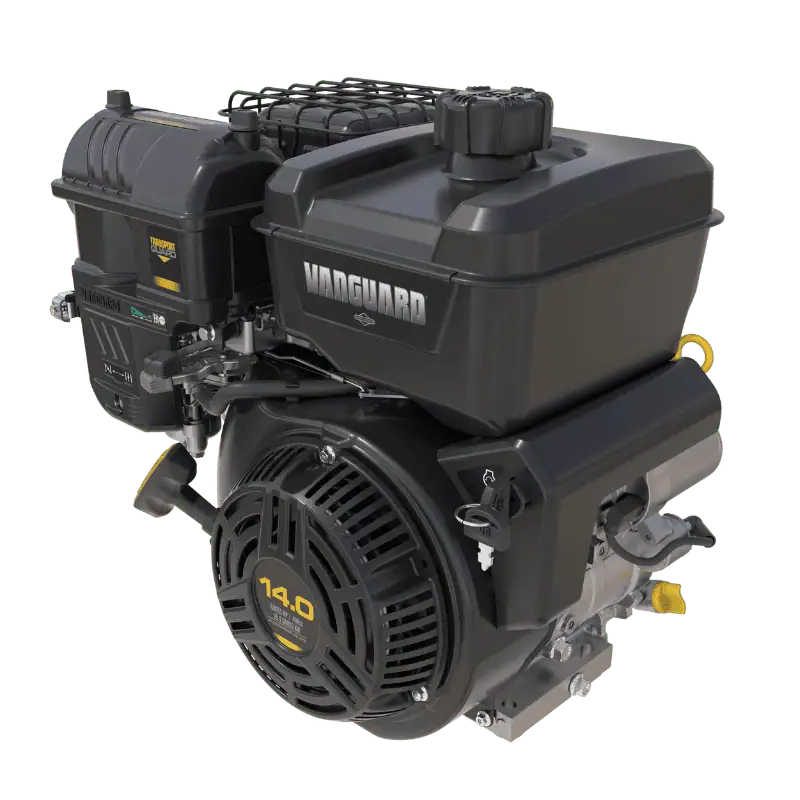

The Vanguard 400 horizontal shaft engine delivers powerful, high-displacement performance with the added benefits of advanced starting, extended maintenance intervals, and exceptional cold-weather reliability. Developed with direct customer input, this single-cylinder commercial engine is a high-torque, low-maintenance solution for demanding power applications. It’s a drop-fit replacement for legacy platforms—no modifications required—and includes a 3+1 year commercial-use warranty for peace of mind.
- Lower noise. Less vibration. Increased user comfort: Engine structure minimizes vibration and sound for smoother handling and less operator fatigue.
- Low TCO, reduced downtime: TransportGuardâ„¢, 600-hour air filter life, and extended oil service intervals significantly cut ownership costs.
- Ideal for simple replacement: Fast drop-fit installation for the most popular engine footprints—ready for immediate repower applications.
- Simplified 3-Step Starting
Optimized for operator ease, the 3-step start system ensures faster, lighter recoil starts in any environment—proven at temperatures as low as -29°C. - Eliminate Fuel/Oil Dilution
The TransportGuardâ„¢ 3-in-1 control shuts off fuel and ignition at once, preventing oil contamination and downtime from transport-related failures. - Optimized Fuel Management
Improved fuel system maintains engine readiness, even with stale fuel, reducing risks associated with intermittent use or seasonal deployment. - Advanced Engine Protection
Integrated low oil sensor helps prevent engine damage by detecting critical levels, adding a layer of automated safeguard. - Outperforms in All Terrains
Optional 45° inclination package keeps the engine running smoothly on steep or irregular surfaces—ideal for rugged or mobile machinery. - More Efficient Power Management
Governed idle improves throttle stability at low speeds, offering precise control and fuel efficiency across varying load demands. - Fewer Air Filter Changes
Cyclonic air filtration system enables up to 600 hours between filter changes—doubling standard intervals for longer continuous use. - Longer Oil Maintenance Intervals
Doubled oil change cycles reduce labor and waste, lowering costs and improving sustainability with up to 50% less oil disposal required. - Zero Overhang Muffler (Optional)
Optional muffler design provides a clear mounting footprint, streamlining installation and repowering in tight engine compartments. - Reduced Noise and Vibration
Engine balancing and refined architecture decrease noise and vibration levels, enhancing user comfort and equipment stability.
Engine Type: | Single-cylinder, 4-stroke, air-cooled, OHV |
Model Number: | 25V3 |
Gross Power @ 3600 rpm: | 10.4 kW / 14.0 HP |
Displacement: | 408 cc |
Cylinder: | Cast iron sleeve |
Bore & Stroke: | 80.0 mm x 67.0 mm |
Fuel Tank Capacity: | 6.1 liters |
Oil Capacity: | 0.89 liters |
Compression Ratio: | 8.3 : 1 |

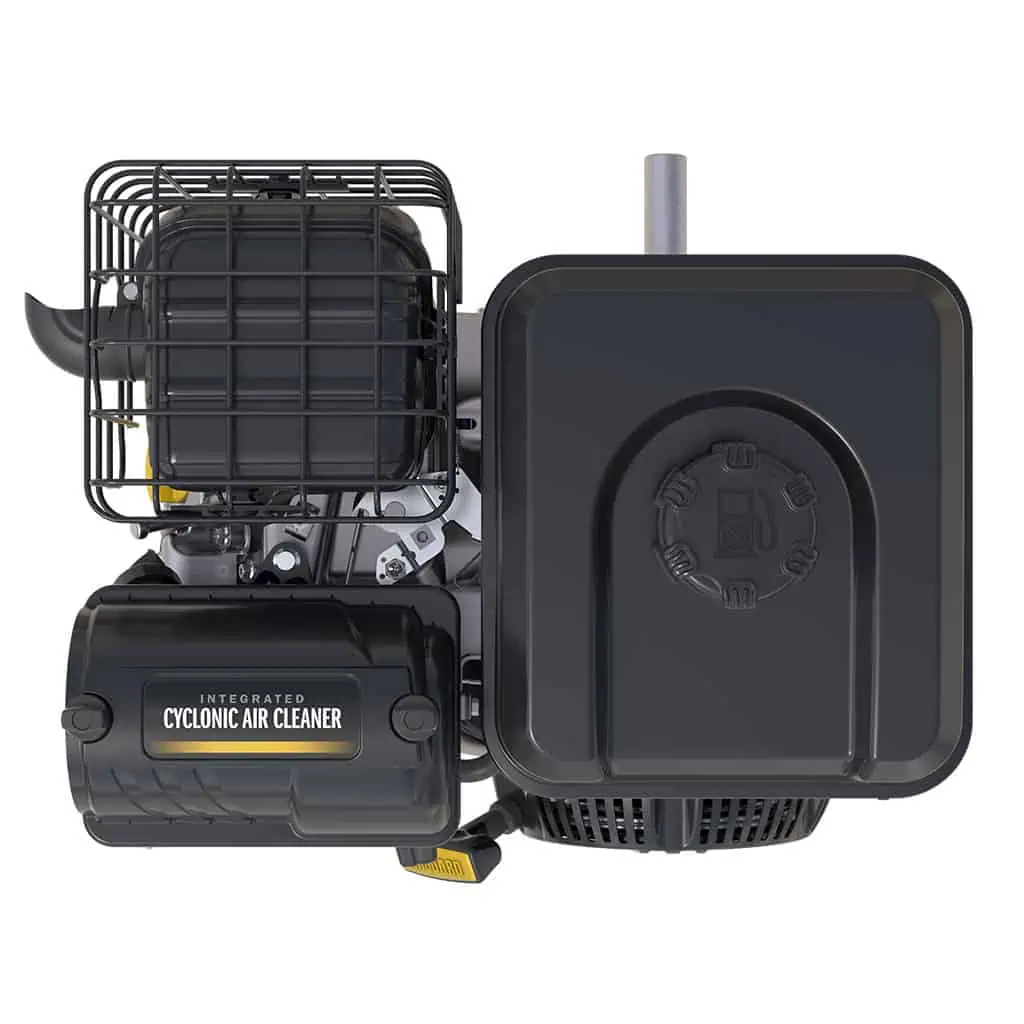

Air Cleaner: | Integrated Cyclonic Air Cleaner |
Ignition System: | CDI Ignition |
Lubrication System: | Splash Lubrication |
Dimensions (L x W x H): | 359 x 444 x 459 mm |
Dry Weight: | 35.5 kg |
Optional Features: | Electric Start (12V), Alternators (3.0 & 20.0 amp), 45° Inclination Package, Clear Flange Muffler, Metric Flange, Threaded Crankshaft, Tapered Crankshaft, Tankless/Mufflerless Configuration |
