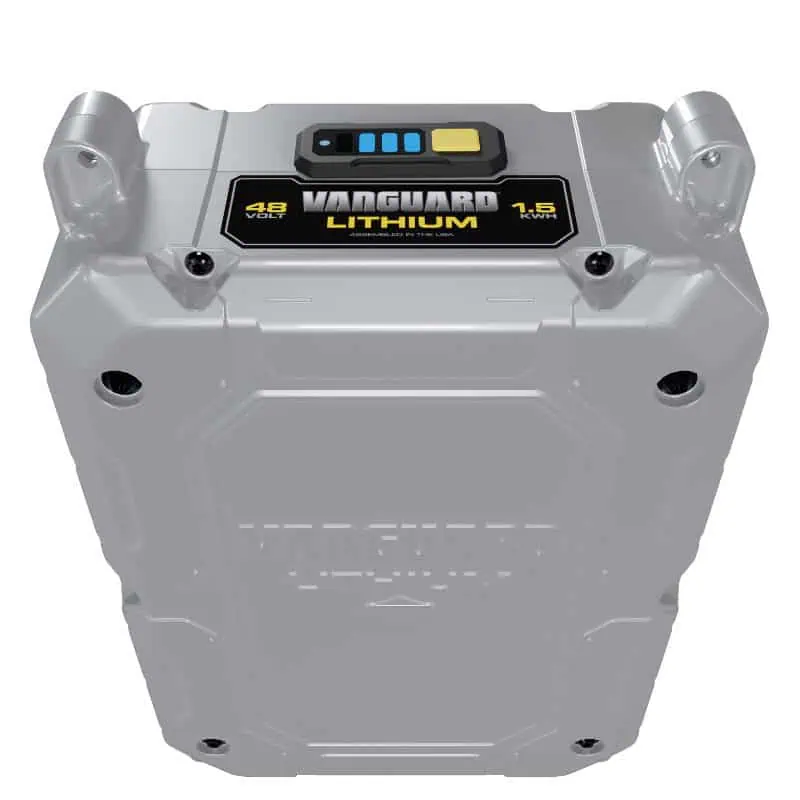

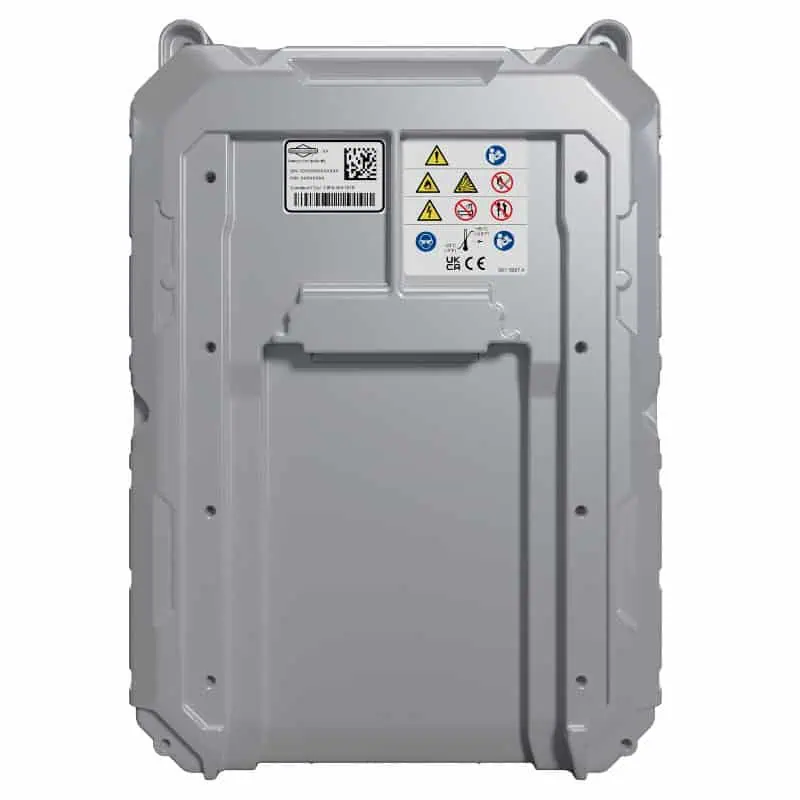

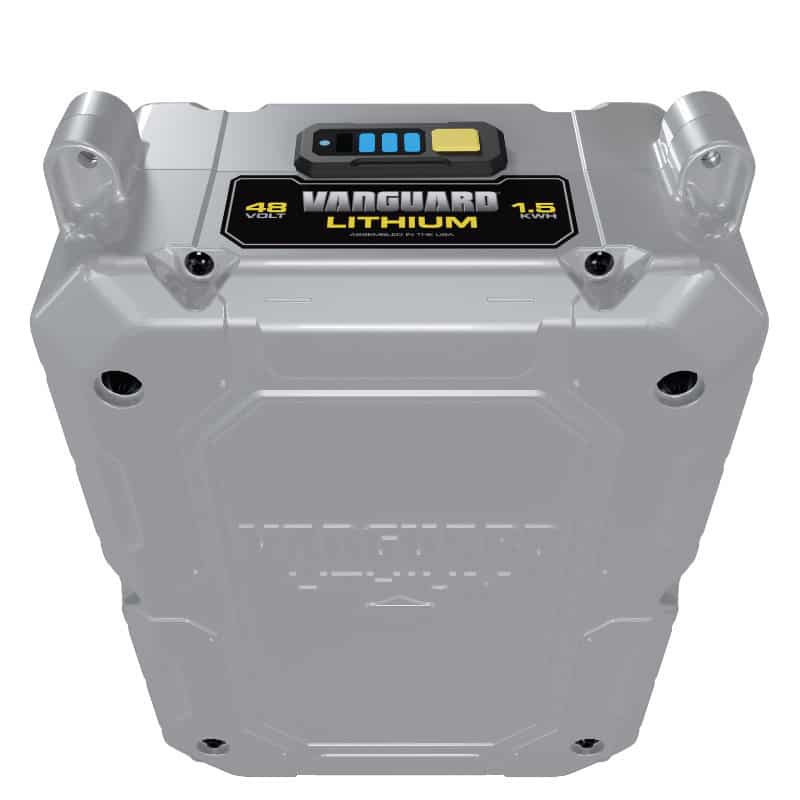

48V 1,5kWh Fixed battery (Fi1.5)
Features & benefits
Specifications
Related products
Built on the design of our innovative swappable battery, the Vanguardâ„¢ 48V 1,5 kWh fixed commercial battery delivers robust and reliable energy in compact spaces. With 1,5 kWh of power and the ability to be used in parallel, this battery pack is perfect for small to mid-sized applications, regardless of the brand.
- Durable: Multiple protective features tested to withstand harsh conditions, including extreme temperatures, impact, vibration and dirt.
- Intelligent & Safe: The integrated Battery Management System monitors temperatures and voltages of each cell bank to ensure sage operations and maximum safety.
- Efficient maintenance: The unique design of the Cell Module Assembly (CMA) enables precise monitoring of battery performance metrics and is easily serviceable.
- Flexibility: Single CANbus J1939 communication protocol allows easy integration into any application.
- Straightforward Troubleshooting
Black and white troubleshooting takes the guesswork out of your way and gets you back to work quicker. - Zero Noise & Emissions*
Supporting a greener environment and allows the application to be used indoors. - Increased Operator Comfort
This is a result of less noise, vibration, and harshness on equipment operators. - Secured
Stays bolted to equipment keeping the battery sturdy and avoiding physical damage. - Ultimate Safety and Robustness
Water, dust proof, and tested for harsh temperature environments, and high safety including wire bonding. - Virtually No Maintenance
Little to no maintenance allows you to get more work done.
*The battery pack is silent, however the application itself may make noise. Zero emissions apply only to the battery pack during operation.
Nominal Voltage (V) | 51,4 |
Top Voltage (V) per IEC 61960 | 58,8 |
Cutoff Voltage (V) | 35,0 |
Nominal Capacity per IEC 61960 | 28,4 Ah / 1,51kWh |
Communication Protocols | CANJ1939 (29-bit, 500kbps) |
Discharge Temperature Range | -40°C to +60°C |
Charging Temperature Range | 0°C to +45°C |
Marketed Durability Hours/Cycles | Up to 1.000 cycles to 80% initial capacity |
Parallel Capable | Coming soon |
Rated Discharging Current | 29A |
Ingress Protection Rating | IP55 |
Warranty | Vanguard offers an 8 year commercial limited warranty for all lithium-ion battery packs. |
