Titan Fastech

Shafts, Pins & Fasteners

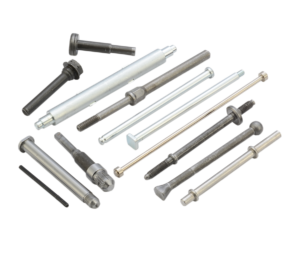

Titan’s shafts and pins are ideal for rotating, locating and articulated assemblies in unmanned systems. Potential applications include UAV motors, drive systems, control mechanisms, hinges and other installations that require accurate alignment and repeatable mechanical performance. Shafts can be manufactured from low- and medium-carbon steel, alloy steel or stainless steel, with diameters from 4 to 20 mm and lengths of up to 200 mm.

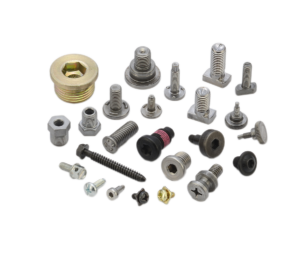

The company’s fastener portfolio includes custom bolts, screws, rivets, weld nuts and ball studs. Bolts and screws are available in sizes from M5 to M16 and lengths from 10 to 200 mm, providing options for motor mounting, structural joints, payload integration and equipment enclosures. Rivets and pins can be produced in diameters from 3 to 16 mm for permanent fastening, retention and locating requirements.

Tubes, Spacers & Machined Parts

Custom tubes and spacers provide controlled separation, alignment and load transfer within vehicle assemblies. They can be used in motor and payload mounts, airframe interfaces, electronic assemblies and other installations where accurate component positioning is required. Titan manufactures these parts from low-carbon and alloy steels, stainless steel and selected JIS steel tube grades, with diameters from 6 to 100 mm and lengths of up to 200 mm.

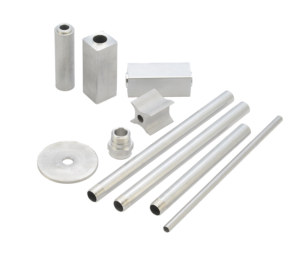

Fully machined parts can be produced from a range of steel grades as well as 6060 and 6061 aluminum and 3604 brass. These material options allow UAV engineers to balance strength, weight, corrosion resistance, conductivity and machinability according to the intended installation. Titan also manufactures aluminum parts from tube and extruded stock, together with stamped and pressed carbon-steel and stainless-steel components.

Drone Motor Components

Titan also produces custom housings and other components for UAV motors, applying its precision forming and machining capabilities to propulsion requirements specified by individual customers.

Cold Forming & Secondary Operations

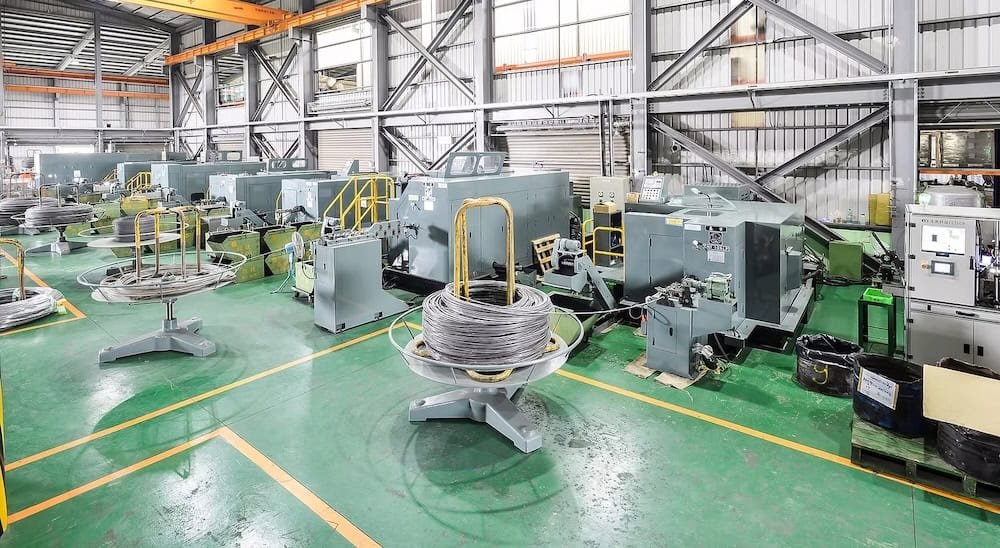

Titan’s cold-forming facilities include part formers, nut formers and re-heading equipment for components with a range of diameters, lengths and geometries. Multistage forming enables material to be shaped efficiently into complex or irregular profiles, reducing the amount of stock that must be removed during subsequent machining.

Material Saving: Cold forming + Machining

A cold-formed blank can undergo additional machining when a component requires tighter tolerances or detailed features that cannot be created during forming alone. Titan provides both external thread rolling and internal thread tapping, covering external threads from M4 to M18 and internal threads from M5 to M20.

Precision CNC Machining

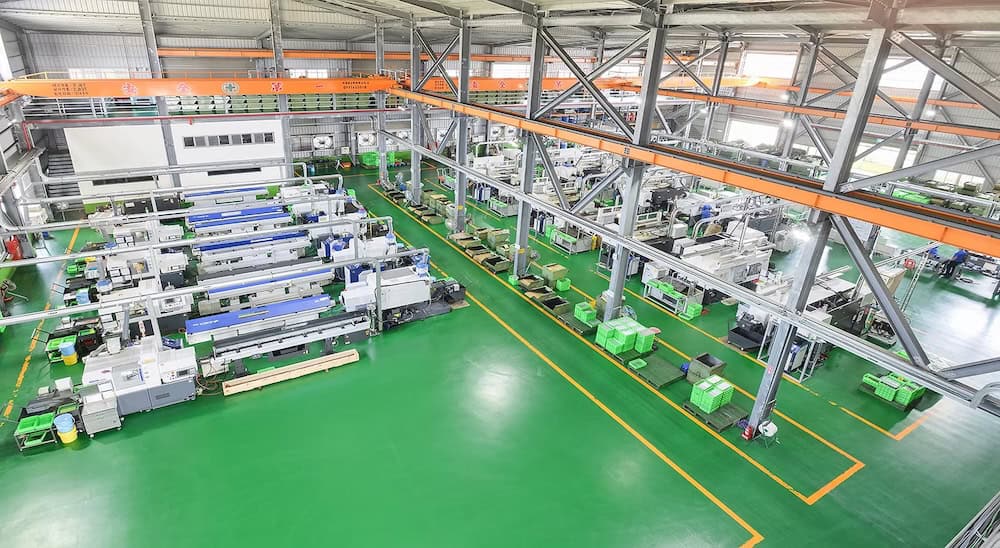

Titan’s facilities operate 39 CNC lathes including single-, twin- and four-spindle machines with configurations ranging from two to nine axes, providing the flexibility to manufacture both straightforward turned parts and more complex precision components.

Available machinery accommodates outside diameters of up to 52 mm and machining lengths of up to 500 mm. Multi-spindle production and automated material feeding help Titan maintain repeatable output across extended manufacturing runs.

Component Cleanliness & Quality Assurance

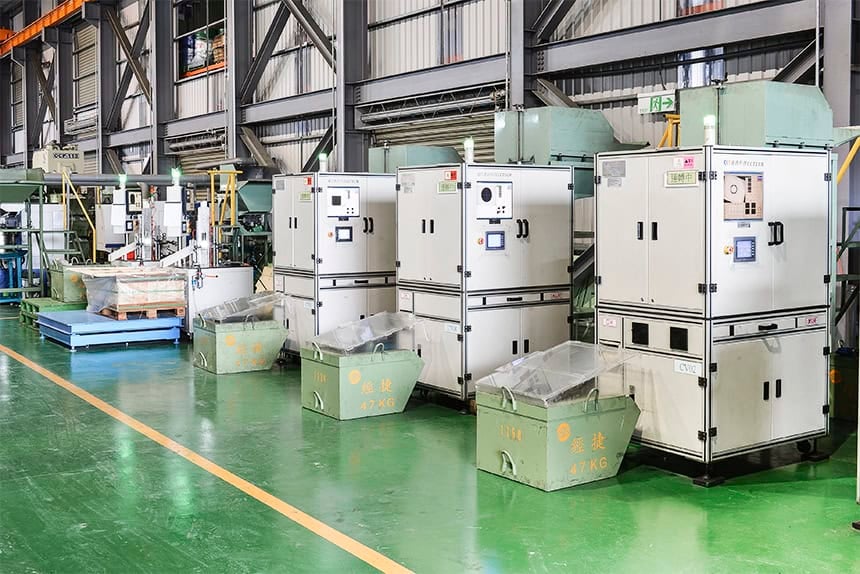

Titan offers a four-stage cleaning process based on hydrocarbon-solvent ultrasonic vacuum equipment. Components undergo atmospheric-pressure cleaning, vacuum ultrasonic cleaning, atmospheric-pressure immersion cleaning and vacuum steam cleaning, followed by vacuum drying. This integrated process removes manufacturing residues and prepares parts for inspection, assembly or delivery.

The company’s cleanliness laboratory is equipped for particle extraction and optical inspection, with ISO 16232 and VDA 19.1 cleanliness reports available. This capability is particularly useful for UAV motors and other precision mechanisms requiring controlled component cleanliness.

Further quality-control capabilities include coordinate measuring machines, video and non-contact optical measurement systems, optical shaft measurement, material and tensile testing, Rockwell and Vickers hardness testing, surface-roughness measurement and environmental testing. Titan’s quality and environmental management systems include ISO 9001, IATF 16949, ISO 14001 and ISO 45001, and its testing laboratory is accredited to ISO 17025.
