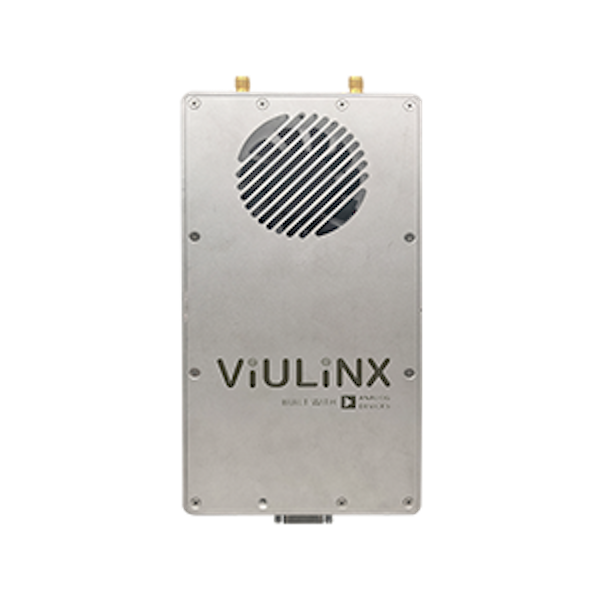

ViuMesh Triple is a wireless datalink from ViuLinX that combines 600 MHz, 1.4 GHz, and 2.4 GHz connectivity with flexible mesh networking for extended-range communications. The unit supports a stated communication distance of 200 km, dual 10 W transmission power, and configurable 1.25, 2.5, 5, and 10 MHz bandwidths. COFDM modulation is paired with adaptive QPSK, 16QAM, 64QAM, and 256QAM constellations, while data rates reach 28 Mbps at 10 MHz in standard operation and 47 Mbps at 20 MHz in wideband mode. Its feature set also incorporates communications security, interference resistance, link-protection measures, and adaptable multi-node networking.
The ViuMesh Triple mesh architecture accommodates as many as 64 nodes, with one-, two-, three-, four-, or unlimited-hop configurations. Receiver sensitivity is specified at ≤-103 dBm at 5 MHz, while DES56 encryption is standard and AES256 is available as an option. Integration interfaces comprise two SMA-K connections, two 100M Ethernet ports, two RS232 interfaces, and one TTL interface. The 735 g enclosure measures 204.4 × 109.3 × 31.0 mm, accepts 24–27 V DC input, consumes no more than 120 W, and is rated for operation from -40°C to +55°C.
| Frequency: | 600 MHz + 1.4 GHz + 2.4 GHz |
| Bandwidth: | 1.25 / 2.5 / 5 / 10 MHz |
| Transmission power: | 10 W × 2 |
| Modulation: | COFDM |
| Constellation: | QPSK / 16QAM / 64QAM / 256QAM, adaptive |
| Maximum throughput: | Standard: 28 Mbps @ 10 MHz; wideband: 47 Mbps @ 20 MHz |
| Communication distance: | 200 km |
| Input voltage: | DC 24–27 V |
| Operating temperature: | -40°C to +55°C |
| Dimensions: | 204.4 × 109.3 × 31.0 mm |
| Weight: | 735 g |
| Receiver sensitivity: | ≤-103 dBm @ 5 MHz |
| Maximum mesh nodes: | 64 |
| Hops: | 1 / 2 / 3 / 4 / unlimited |
| Encryption: | DES56; AES256 optional |
| Power consumption: | ≤120 W |
| Interfaces: | SMA-K × 2, 100M ETH × 2, RS232 × 2, TTL × 1 |
