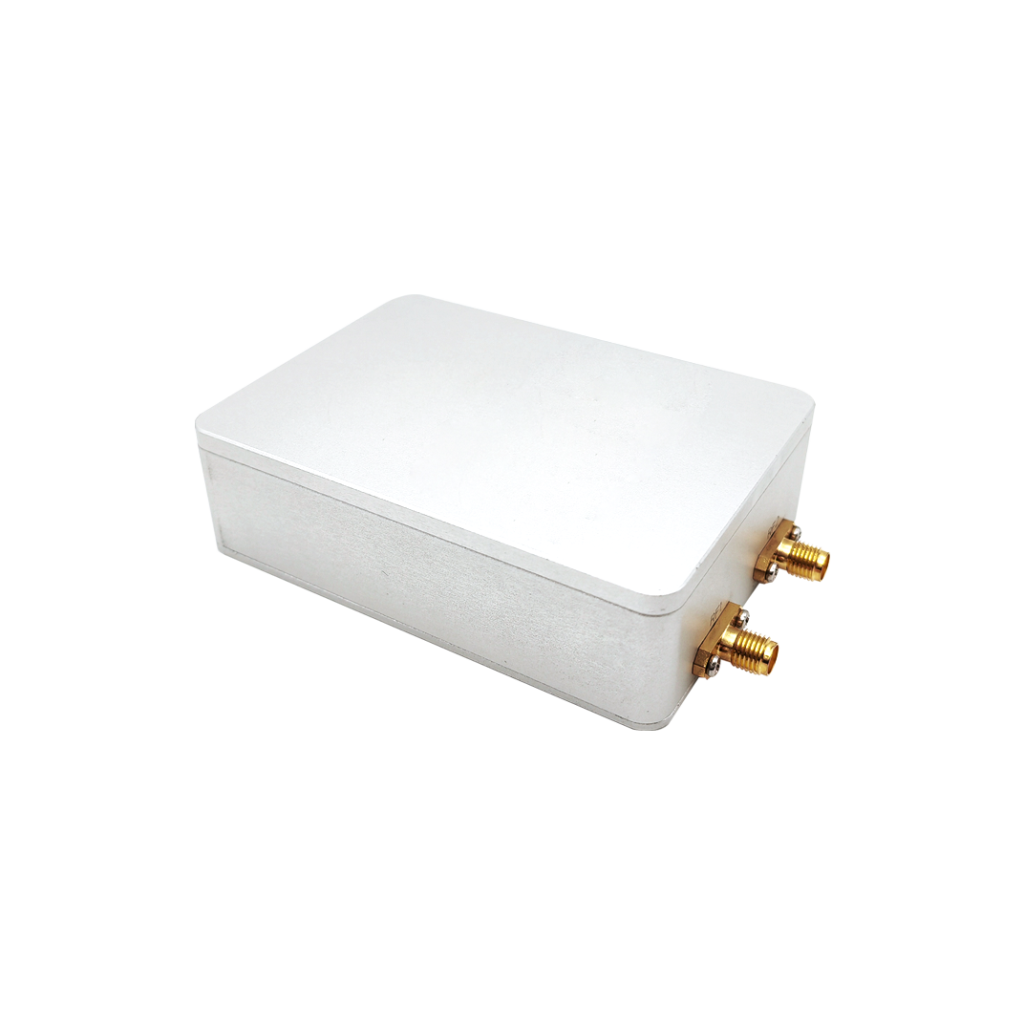

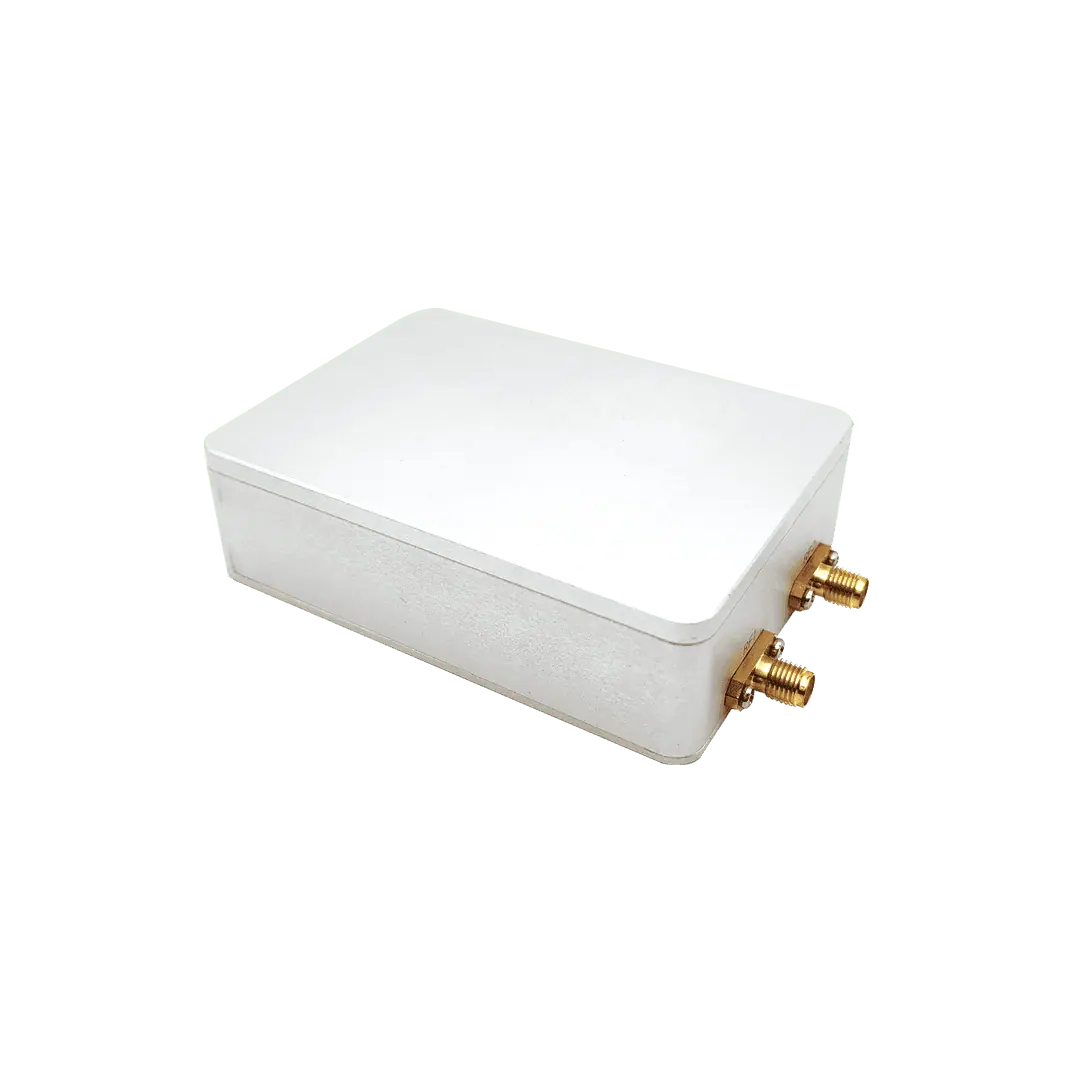

ViuMesh Pro
The ViuMesh Pro is a compact and lightweight MIMO antenna datalink for drones and robotics that is capable of mesh capabilities with networks of up to 64 nodes. Offering orthogonal frequency division multiplexing (OFDM) capabilities with BPSK, QPSK, 16QAM and 64QAM constellations, it features AES-128 and AES-256 encryption for secure and reliable communications.
Specifications:
| Dimensions: | 90.8 x 65 x 26.5 mm |
| Weight: | 250g |
| Input Power: | 15 - 36 VDC <30W |
| Max Mesh Nodes: | 64 |
| Max Node Jump: | 10 |
| Frequency: | 1428 - 1448MHz |
| Bandwidth: | 5 / 10 / 20 MHz |
| Transmission Power: | 33 dBm |
| Throughput: | 90 Mbps @ 20 MHz |
| Interfaces: | SMA-K ×2, J30J (power, ETH, TTL serial) |
