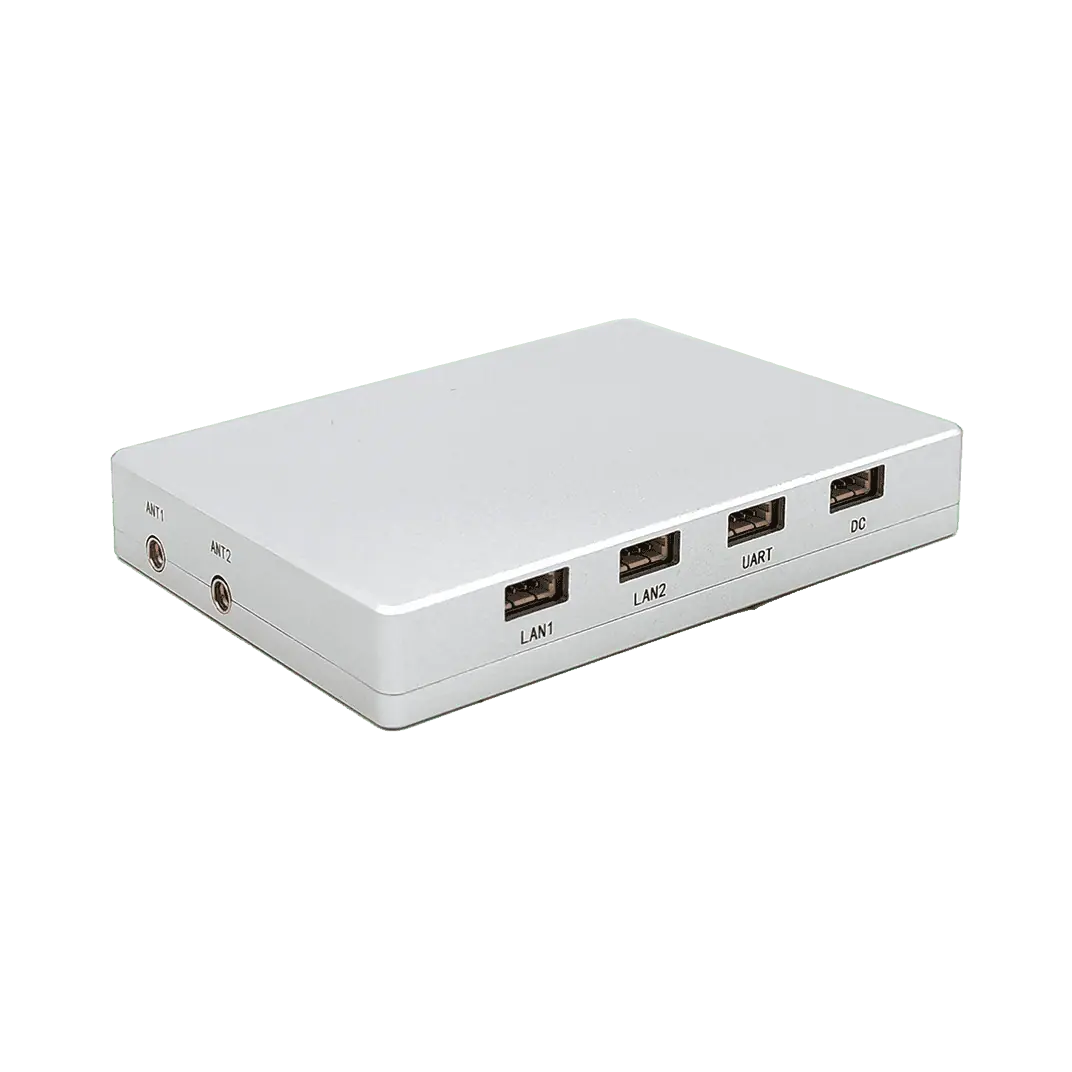

ViuMesh Lite
The ViuMesh Lite is a compact and lightweight MIMO antenna datalink for drones and robotics that is capable of mesh capabilities with networks of up to 42 nodes. Offering orthogonal frequency division multiplexing (OFDM) capabilities with BPSK, QPSK, 16QAM and 64QAM constellations, it features AES-CCMP encryption for secure and reliable communications.
Specifications:
| Dimensions: | 50 x 66 x 10 mm |
| Weight: | 52g |
| Input Power: | 9 – 48 VDC |
| Max Mesh Nodes: | 42 |
| Max Node Jump: | 8 |
| Frequency: | 2412 - 2462 MHz |
| Bandwidth: | 5 / 10 / 20 MHz |
| Transmission Power: | 0.5W x 2 |
| Throughput: | 80 Mbps max |
| Interfaces: | Ethernet, TTL, USB |
