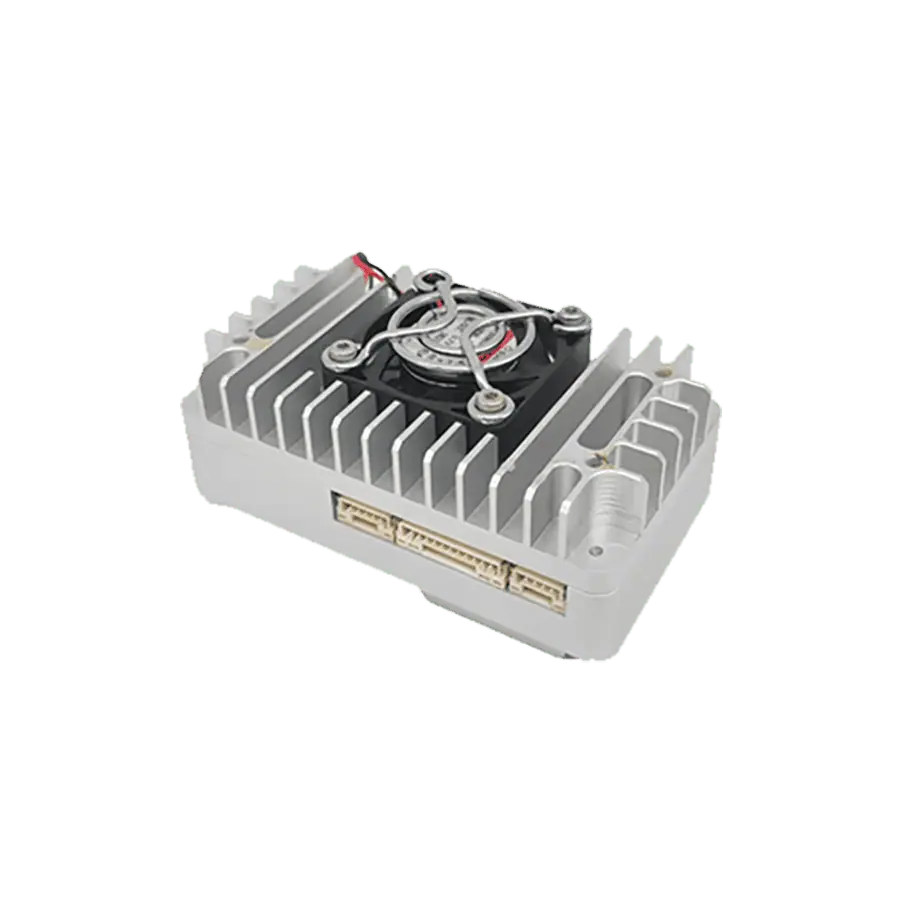

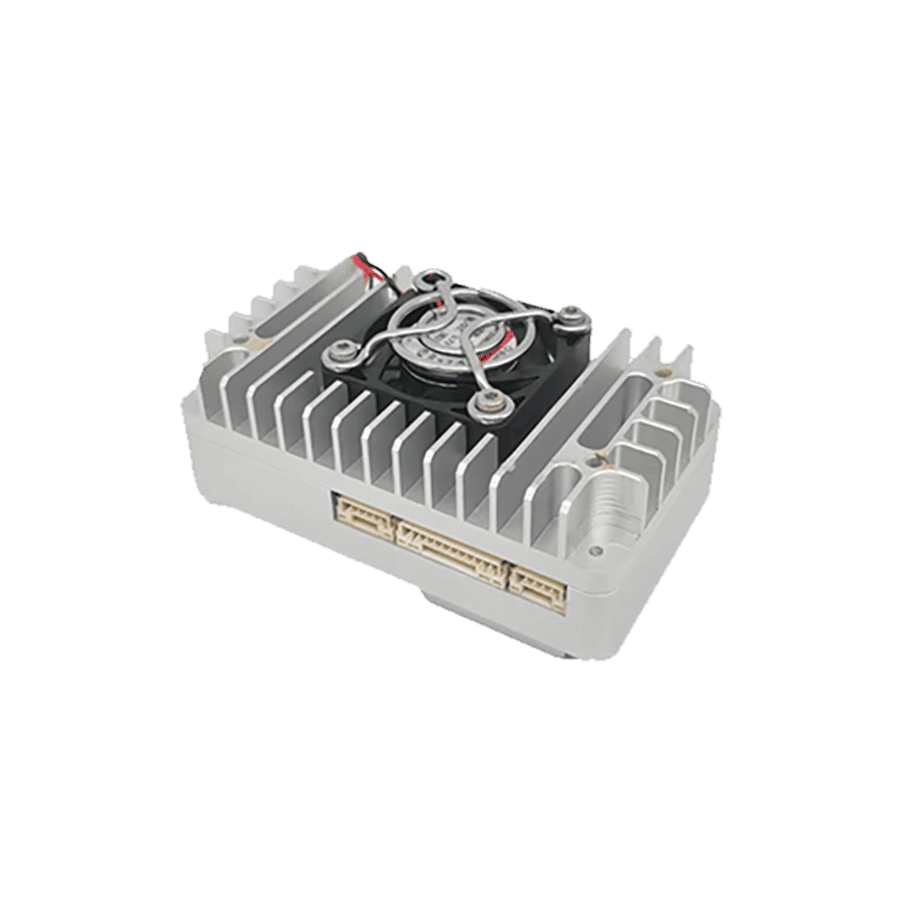

Viulinx Quad-Band
The Viulinx Quad-Band is a small-footprint and ultra-reliable bidirectional datalink for drones and robotics, providing transmission of high-definition video, command and control, and telemetry data on four different frequency bands: 2025-2110, 2200-2290, 2300-2400, and 2400-2500 Mhz. Offering orthogonal frequency division multiplexing (OFDM) capabilities with BPSK, QPSK and 16QAM constellations, it features AES-256 encryption and adaptive frequency hopping for secure and reliable communications.
The datalink is available in 0.5 or 2W output power versions.
Specifications:
| 0.5W | 2W | |
| Dimensions: | 23 x 71 x 40 mm | 35 x 41 x 72 mm |
| Weight: | 80g | 110g |
| Power: | DC 12V/1.5A (or 3S lithium battery) 4.9W (air unit), 4.6W (ground unit) | 12 – 26 VDC 20W |
| Frequency: | 2025-2110, 2200-2290, 2300-2400, and 2400-2500 Mhz | |
| Bandwidth: | 10 MHz | 10 MHz |
| Transmission Power: | 27 dBm | 33 dBm |
| Throughput: | 2 – 10 Mbps down, 600 kbps up | 15 Mbps max |
| Interfaces: | Ethernet x1 TTL x2 SBUS x2 | Ethernet x1 RS-232 x2 SBUS x2 |
