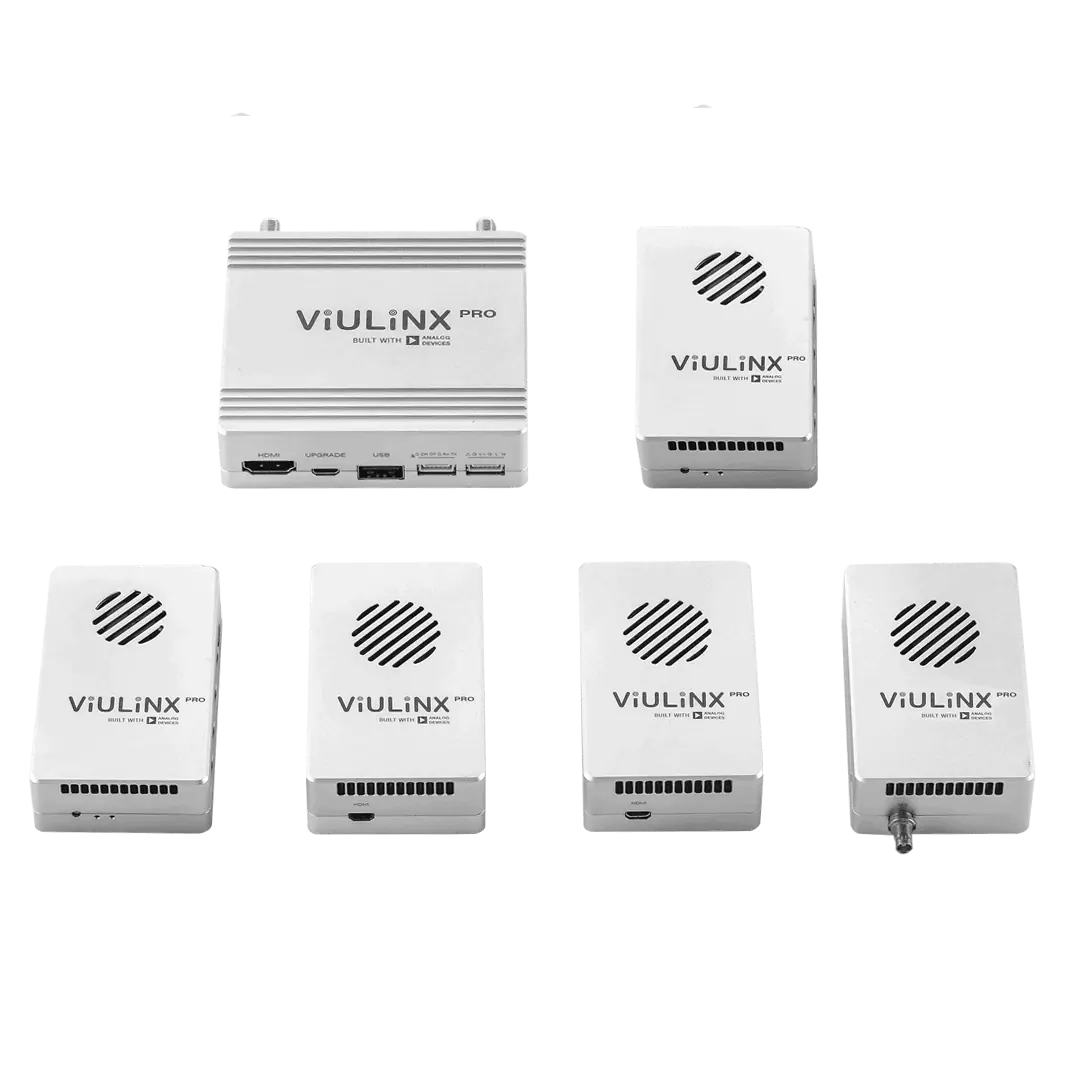

Viulinx PRO
The Viulinx PRO series of small-footprint and ultra-reliable bidirectional datalinks for drones and robotics provides transmission of high-definition video, command and control, and telemetry data, with options for 1.4, 2.4 or 5.6 GHz.
Offering orthogonal frequency division multiplexing (OFDM) capabilities with BPSK, QPSK and 16QAM constellations, it features FPGA-based AES-256 encryption and adaptive frequency hopping for secure and reliable communications, as well as H.264 and H.265 video compression and decompression.
Specifications:
| A200 | A300 | A501 | |
| Dimensions: | 77.8 × 47.3 × 23.5 mm (Ethernet) 130 x 90 x 28.5 mm (HDMI) | ||
| Weight: | 97g | 97g | 97g |
| Power: | 9 – 26 VDC | 9 – 26 VDC | 9 – 26 VDC |
| Frequency: | 2.4 Ghz | 5.8 Ghz | 1.4 GHz |
| Bandwidth: | 10 MHz | 10 MHz | 10 MHz |
| Transmission Power: | 27 / 30 dBm | 27 / 30 dBm | 27 / 30 dBm |
| Throughput: | 2 – 10 Mbps down, 600 kbps up | ||
| Interfaces: | HDMI, SDI; AV, Ethernet Serial, PPM/SBUS | ||
