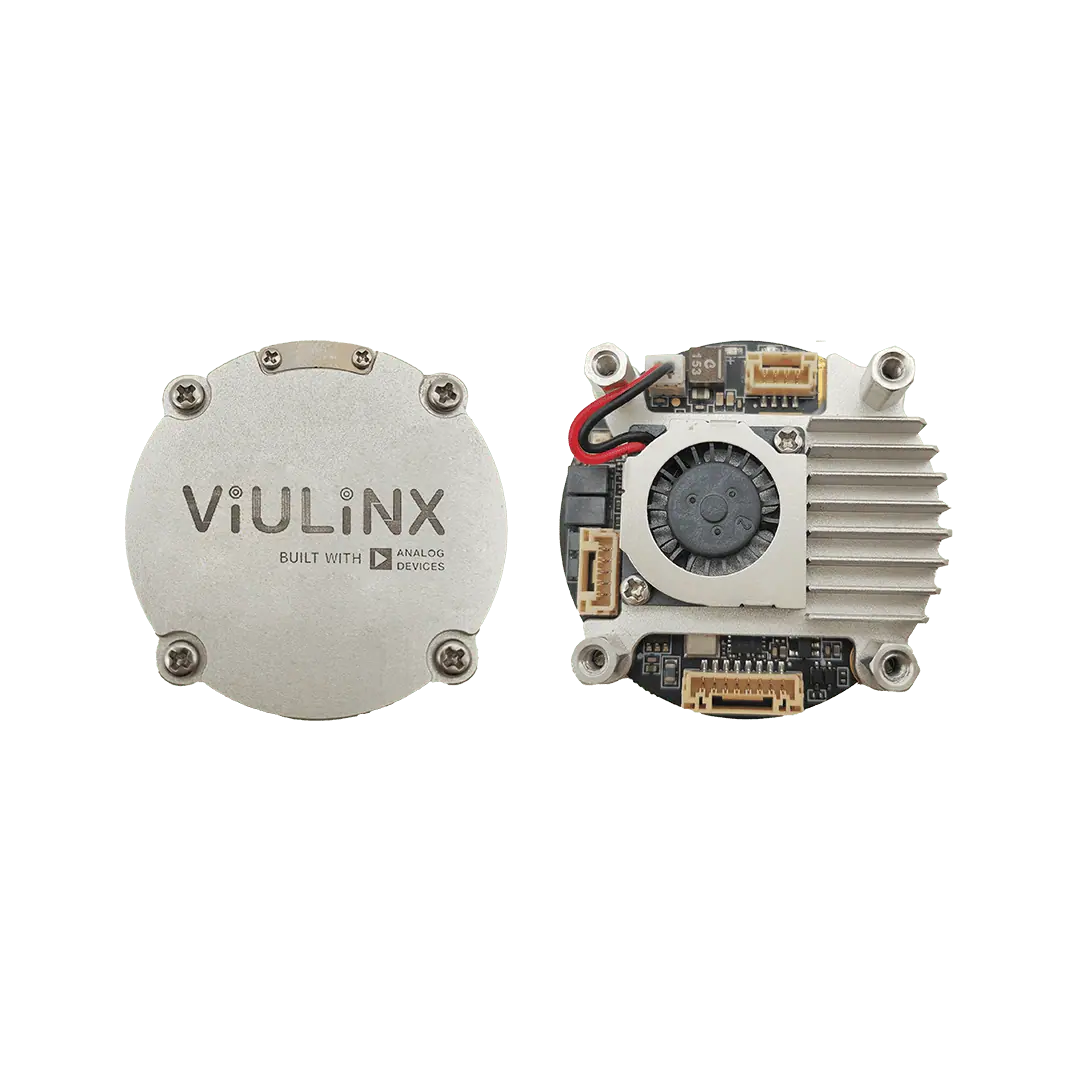

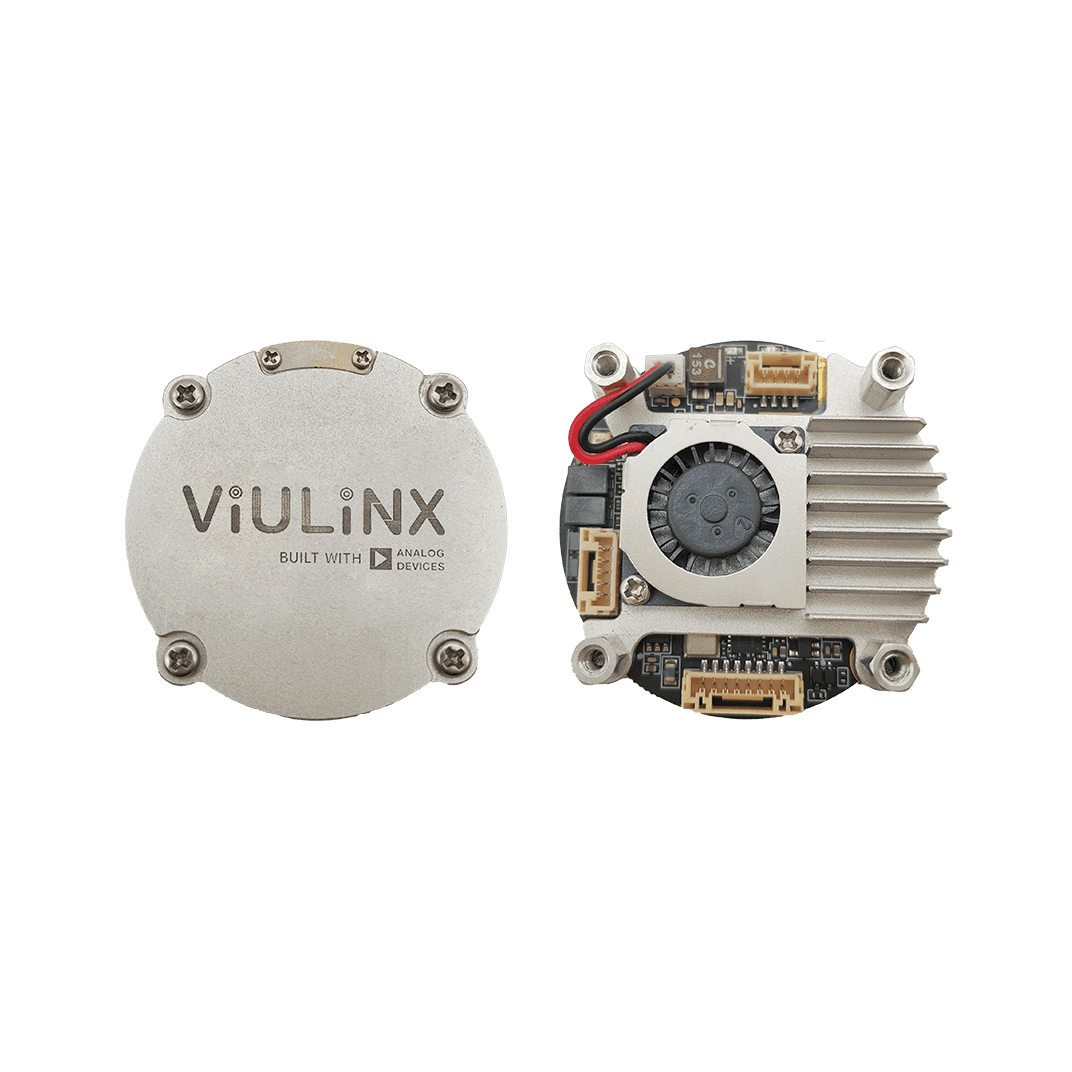

ViuLinx MINI
The Viulinx MINI is a small-footprint and ultra-reliable bidirectional datalink for drones and robotics, providing transmission of high-definition video, command and control, and telemetry data at ranges of up to 15 km. Offering orthogonal frequency division multiplexing (OFDM) capabilities with BPSK, QPSK and 16QAM constellations, it features AES-256 encryption and adaptive frequency hopping for secure and reliable communications.
Specifications:
| Dimensions: | 49 x 13 mm |
| Weight: | 25g |
| Input Power: | 9 – 26 VDC |
| Range: | 7 - 15 km |
| Frequency: | 1.4 GHz |
| Bandwidth: | 10 MHz |
| Transmission Power: | 27 dBm |
| Throughput: | 2 – 10 Mbps down, 600 kbps up |
| Interfaces: | TTL x2 SBUS x1 |
