This compact, versatile dual-mode communications terminal offers Iridium Certus 100 satellite and 3G/4G LTE cellular connectivity. With up to 88 Kbps speeds over the Iridium satellite network, the DLS-140 enables internet data access to support internet protocol (IP) data and voice communications, 3G/4G LTE cellular, and Wi-Fi connectivity.
The DLS-140 can support specific customer requirements including optimized video downlinks, beyond visual line of sight (BVLOS) communications, least-cost routing, and remote terminal management for various use cases. Explore this low SWaP and easily integrated solution.

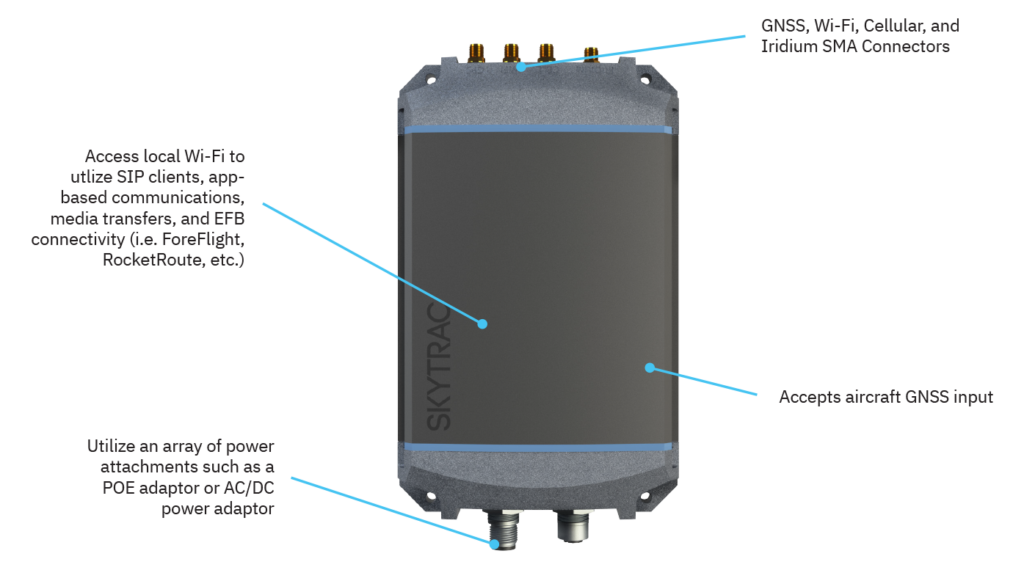

The key features of this unit are:
Beyond Visual Line of Sight (BVLOS) communications
3G/4G LTE cellular connectivity
Support for IP data and voice communications
Wi-Fi connectivity
Optimized video downlinking
TECHNICAL SPECIFICATIONS
IRIDIUM SERVICES
Iridium Certus
POWER REQUIREMENTS
10 VDC to 34 VDC
OPERATING TEMPERATURE
-40°C to +70°C (-40°F to 158°F)
POWER CONSUMPTION
18W peak power, 7W nominal
ENVIRONMENTAL
IP65 Compliant
DIMENSIONS
12.7 cm x 20.3 cm x 3.2 cm (H x W x D) (5” x 8” x 1.2”)
