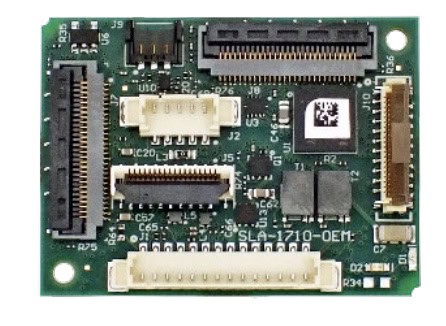

The 1710-OEM from Sightline Intelligence delivers sophisticated video processing capabilities in an ultra-miniature footprint, purpose-built for space- and power-constrained ISR platforms.
Weighing only 15 grams and operating at 3 watts, this compact board is engineered for tactical edge applications such as loitering munitions, small UAVs, and other uncrewed systems. It handles full-frame detection, real-time object classification, and robust multi-target tracking, eliminating reliance on centralized processing and performing detection directly onboard.
Engineered to operate seamlessly with Sightline’s latest 3.9.2 software, the 1710-OEM enables onboard AI-based detection and classification in counter-UAS, convoy protection, and precision ISR missions. Its versatile video input compatibility supports 1080p30 over MIPI and dual-stream configurations via USB3.0, with flexible analog and digital I/O options.
Real-time output over H.264/H.265, HDMI, or HDSDI ensures broad compatibility with downstream systems, while customizable overlays and metadata enrich operator clarity. Whether deployed for swarm detection or perimeter defense, the 1710-OEM maximizes ISR impact while minimizing footprint.
Specifications:
| Dimensions: | 1.11 x 1.5 x 0.5 in (28.2 x 38.1 x 11.6 mm) |
| Weight: | 14.7 g (SOM only 7.1 g) |
| Power: | 3 W typical |
| Frame Size / Rates: |
720p @60 fps limited functions 1080p @30 fps with full SW |
| Video Inputs: |
2 x MIPI (MIPI cameras or Adapter) 1 x USB 3.0 1 x using MIPI-AB analog adapter board |
| Video Outputs: |
H.264 and H.265 encoding, MPEG2 TS/RTP encapsulation HDMI out via FFC ribbon HDSDI with HDMI-HDSDI converter board Camera Link - full raw LVDS output with external CL connector |
