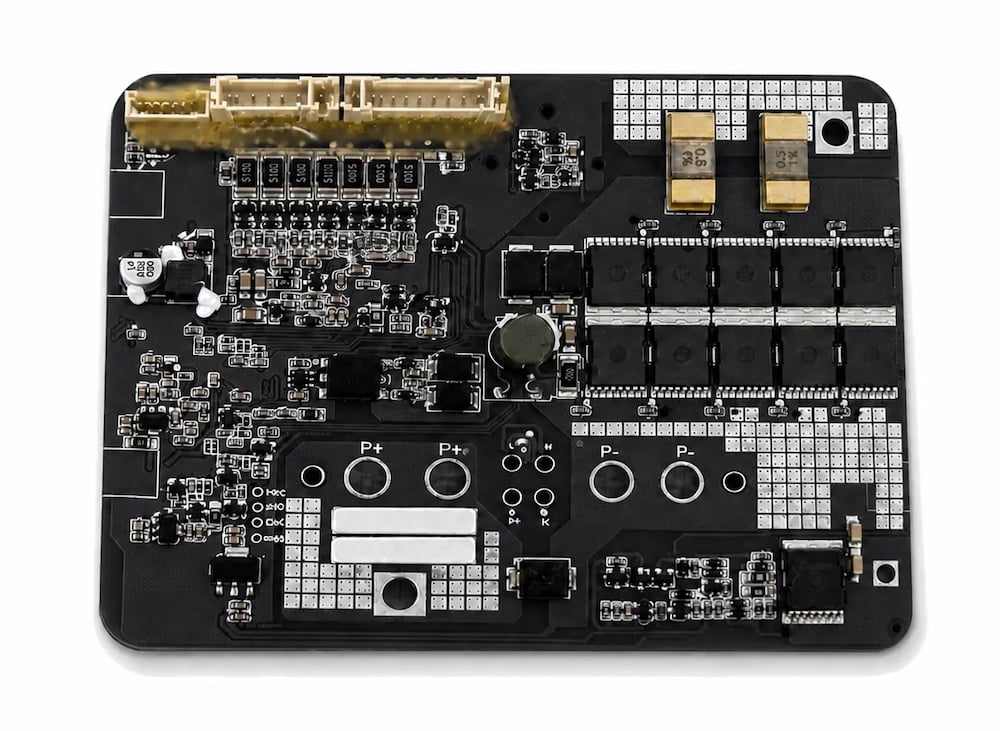

The EF-013 from Ayaa UAV Power is a smart UAV Battery Management System (BMS) designed for 12S battery packs with 150A continuous discharge. Intended for inspection, detection, security, and other professional drone applications, it supports battery monitoring, passive balancing, temperature supervision, configurable protection behavior, and access to battery-status information for both onboard use and engineering review.
Integration with compatible flight-control systems is supported through DroneCAN (formerly UAVCAN/Cyphal), PX4, JIYIUAV, VKCAN, SKYRCCAN, and BOYINGCAN. The EF-013 also provides battery-data communication and wireless access for monitoring and commissioning, while its in-flight operating logic can report abnormal conditions without interrupting power output. The unit measures 123.8 × 94.8 × 15 mm and weighs 84 g.
Specifications:
| Supported Cell Configuration: | 12S |
| Continuous Discharge: | 150A |
| Communication: | DroneCAN (formerly UAVCAN/Cyphal), PX4, JIYIUAV, VKCAN, SKYRCCAN, BOYINGCAN |
| Dimensions: | 123.8 × 94.8 × 15 mm |
| Weight: | 84 g |
