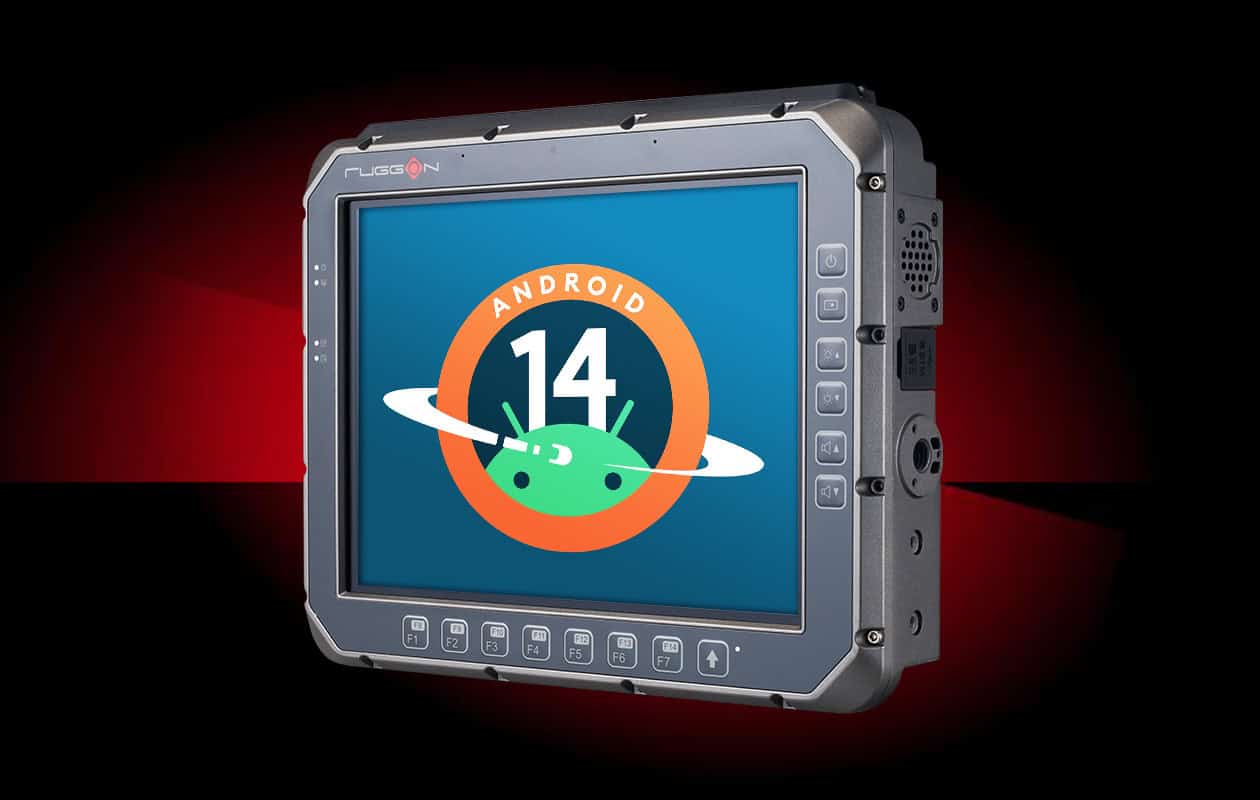

VULCAN 10A
The VULCAN 10A is an advanced vehicle mount computer that is ideal for challenging robotics applications. Based around Android 14 and a Qualcomm® C6490 CPU, it offers up to 12 TOPs of AI processing performance. Designed to IP66, MIL-STD-810H and IEC 60721-3-5 5M3 standards, it can withstand harsh operating conditions including vibration, shock, dust, oil, salt, and UV exposure.
The versatile unit offers a range of wireless communication options, including dual-band Wi-Fi 6, Bluetooth 5.2, and optional 4G/5G WWAN. The rich I/O set includes multiple RS-232/422/485, CAN bus 2.0B, SAE J1939, Gigabit Ethernet, and USB Type-C with DP Alt Mode for secondary display support.
Specifications:
| Dimensions: | 276 x 234 x 57 mm |
| Weight: | 3.2 kg |
| Power: | 9 – 60 VDC |
| System: | Qualcomm® QCS™ 6490 Octa-Core, 2.7GHz 8GB LPDDR4x SDRAM 128GB UFS storage Built-in 6-axis G-sensor, dual speaker OS : Android 14, Google Mobile Services (GMS) certified |
| Display: | 10.4” XGA TFT LCD with LED backlight (1024 x 768) 1200 nits brightness supports auto-dimming PCT touchscreen supports glove and rain mode |
| Communications: | Wi-Fi 802.11 ax & 802.1 v/r/k (Fast Roaming) Bluetooth V5.2 Optional 4G LTE / HSPA+ / GPRS / 5G (Telit/Sierra) Optional GNSS (GPS/Galileo/GLONASS/BeiDou) |
| I/O: | RS-232 with power supported x 1 RS-232(TX,RX)/422/485 x 1, RS-232(TX,RX) x 2, RS-485 x 2 Gigabit Ethernet x 1 USB 3.1 x 1, USB 2.0 x2, USB 3.1 type C x 1 (DP Alt Mode supported) Micro SD slot x 1, Micro SIM slot x 1, eSIM x1 CAN bus 2.0B or SAE J1939 x 1 DI x 2, DO x 2, Mic in x 2, Line out (L/R) x 1 Optional video input |
