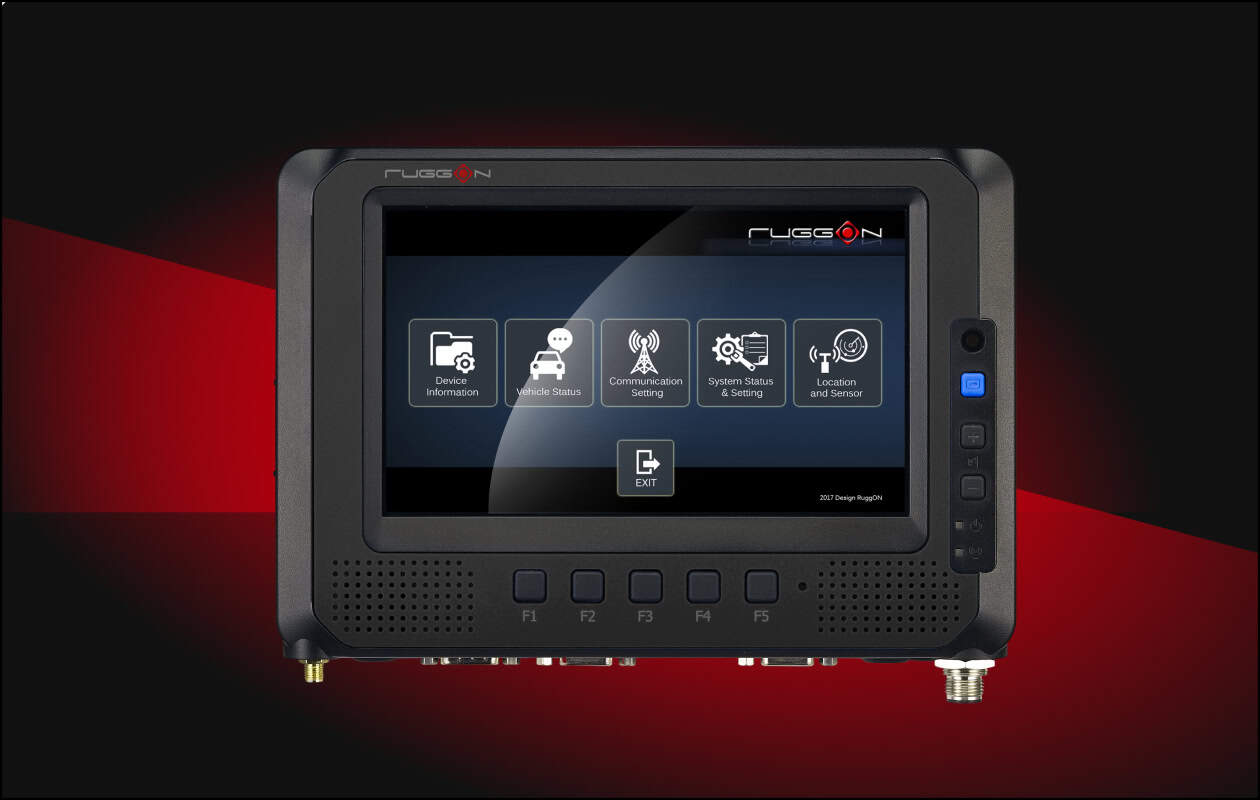

VIKING 07X
The VIKING 07X is an advanced vehicle mount computer that is ideal for challenging robotics applications. With integrated NFC & RFID capabilities, it connects seamlessly with other IoT devices and networks for easy tracking and identification.
The versatile unit offers best-in-class connectivity, including Wi-Fi 802.11 a/b/g/n/ac, GPRS/HSPA+/LTE, and Bluetooth V4.0 class 2, as well as a built-in multi-constellation GNSS receiver. The dead-reckoning function enables continuous position tracking even in GNSS-denied environments.
Specifications:
| Dimensions: | 220 x 152 x 40 mm |
| Weight: | 1.25 kg |
| Power: | 9 – 36 VDC |
| System: | Intel® Atom™ E3815 1.46GHz, optional Intel® Atom™ E3826 1.46GHz 2GB DDR3L SODIMM mSATA SSD, Micro SD slot Built-in 3-axis G-sensor, dual speaker Windows 10 IoT Enterprise |
| Display: | 7” TFT LCD WSVGA (1024 x 600), 500 nits brightness Capacitive multi touch (PCT) Supports auto-dimming |
| Communications: | Gigabit Ethernet (RJ45 ) GNSS (GPS / QZSS or GLONASS or BeiDou), dead-reckoning supported Optional Wi-Fi 802.11 a/b/g/n/ac Optional 4G LTE / HSPA+ / GPRS Optional Bluetooth V4.0 Class 2 |
| I/O: | RS-232 with power supported x 1, RS-232/422/485 x 1 USB 3.0 x 1, USB 2.0 x 1 Dual Micro SIM slot x 1 CAN bus (SAE J1939 supported) x 1 DI x 2, DO x 2 Audio headset jack x 1 DC-in x 1 |
